Switch Box Layout ESiEN02–01A
1–106 Part 1 – System Outline
3
11
4
5
5.12 RY35EAZ7V1 and RY45EAZ7V1

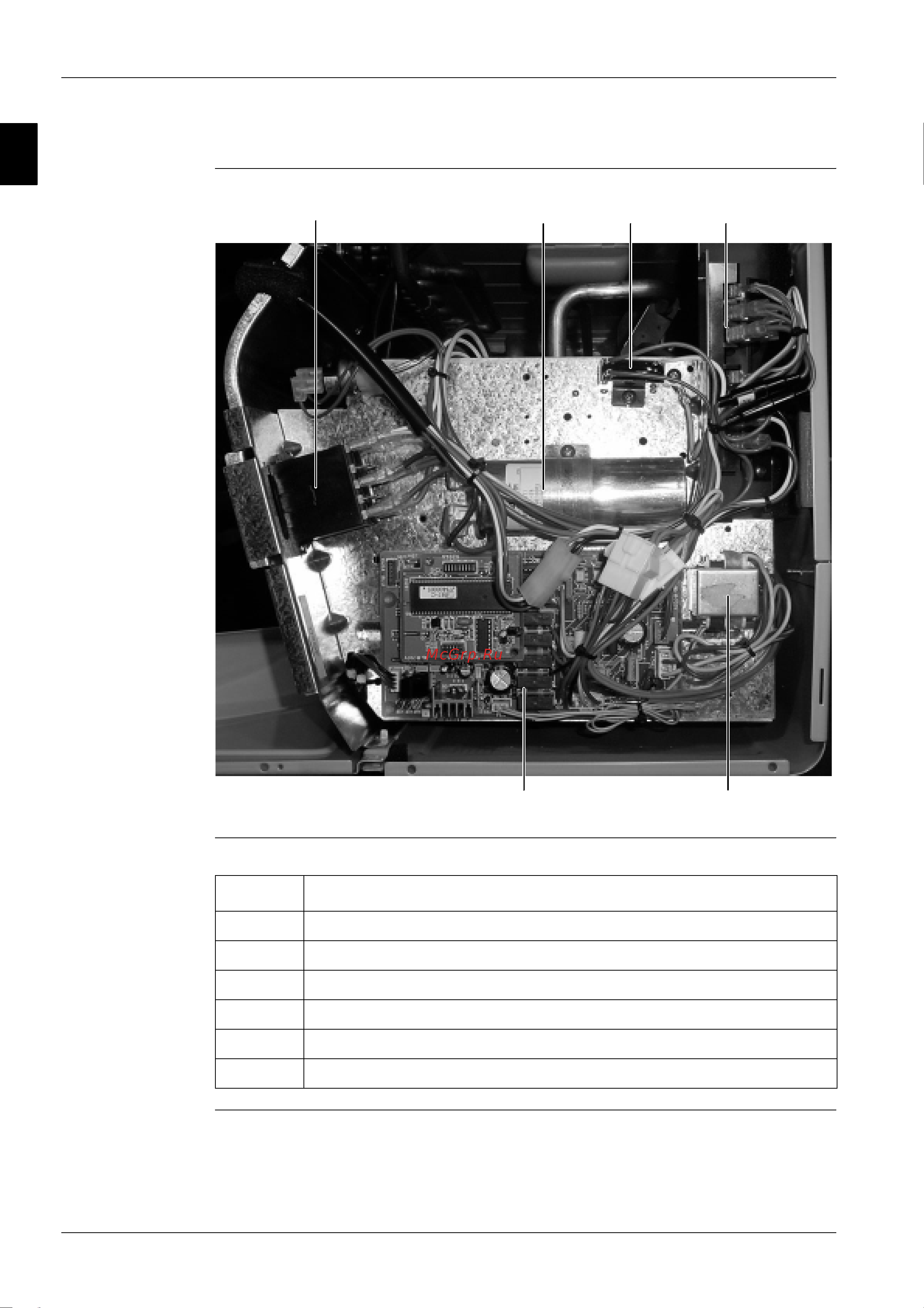

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
PCB
K1M
T1R
C2RC1R X1M
Symbol Component
K1M Magnetic contactor
C1R Compressor running capacitor
C2R Fan motor capacitor
X1M Terminal strip
T1R Transformer
PCB Printed circuit board
