ESiEN02–01A Switch Box Layout
Part 1 – System Outline 1–113
3
1
4
5
5.19 FHYKP35BV1, FHYKP45BV1, FHYKP60BV1 and FHYKP71BV1

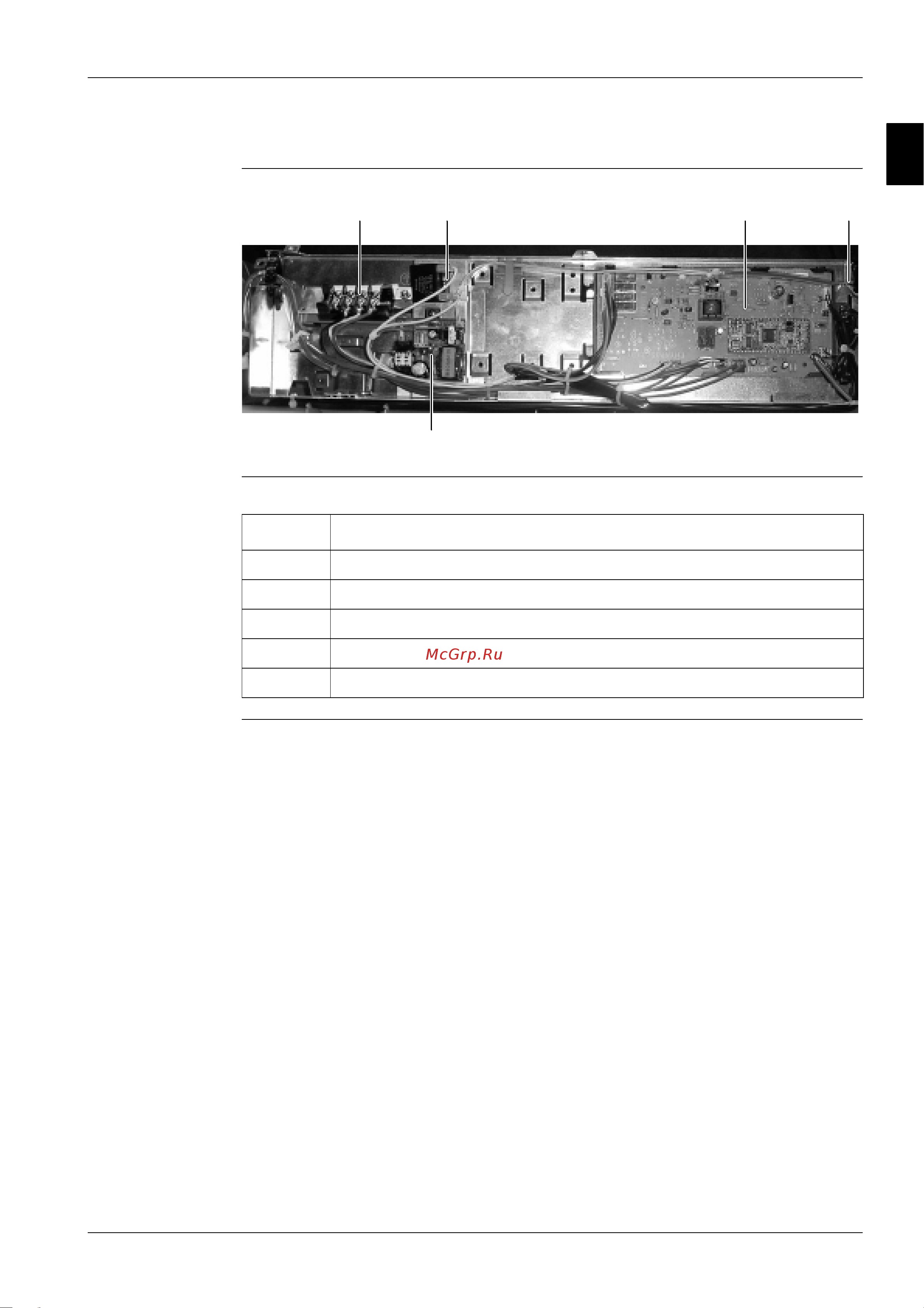

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
PCB1C1RX2M
PCB2
X1M
Symbol Component
X2M Terminal strip (interconnection wiring)
C1R Fan motor capacitor
PCB1 Printed circuit board
X1M Terminal strip (for remote control P1/P2)
PCB2 Printed circuit board (power supply PCB)
