ESiEN02–01A Wiring Diagrams: Outdoor Units
Part 1 – System Outline 1–131
3
1
4
5
6.17 RYP71B7W1

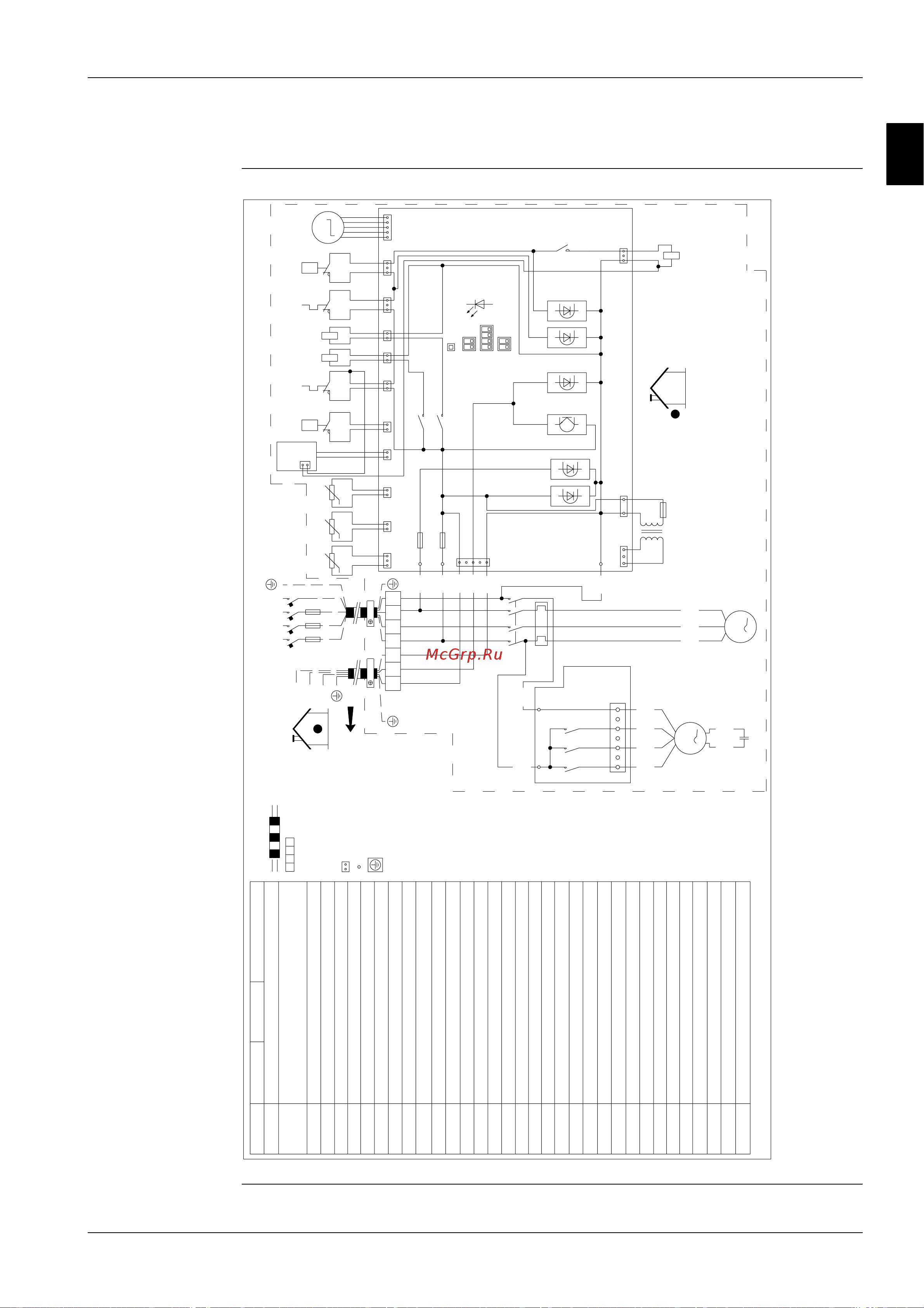

Wiring diagram The illustration below shows the wiring diagram of the unit.
outdoor
BS1
DS1
L3
PRC
A1P
P
PP
X1A
X7A
T1R
t˚
BLU
RED
X2X1
S1PHQ1LF1C
1
WHT
M1F
C1R
YLW
M
BLU
BLK
RED
C
HH
H
X14A
RyF2
RyF1
M
Y1E
t˚
X4A
R1T
t˚
R3T
X6A
t˚
R2T
X5A
X1A
A2P
X23A
X21A
X11A X9A
X10A
S1LP
X24A
F1U
L1
N
F2U
K1M
X8A
A1
RCTC SD SD
RyC
L1 L2
WVU
BLK
WHT
RED
32
1
BLK
WHT
RED
M
M1C
3
L3
F3U
Q3E
N
X1M
K1M
F1C
RED
BLU
N
L3
indoor
L2L1
BLK
3
2
1
400V
3N ~ 50Hz
X22A
Y1R
H1P
H2P
HAP
RyS
ORG
RyF3
L
EARTH LEAK DETECTORQ3E
FIELD FUSEF3U
F1C OVER-CURRENT RELAY (M1C)
SIGNAL TRANSMISSION CIRCUITTC
SAFETY DEVICES INPUT
SD
SIGNAL RECEIVER CIRCUITRC
PHASE REVERSE CIRCUITPRC
TRANSFORMER (220-240V/19V)T1R
THERMISTOR (DISCHARGE)R3T
THERMISTOR (COIL)R2T
THERMISTOR (AIR)R1T
TERMINAL STRIPX1M
SELECTOR SWITCH (EMERGENCY)
DS3
MAGNETIC RELAY (Y1R)RyS
MAGNETIC RELAY (M1F)RyF1-3
MAGNETIC RELAY (K1M)RyC
MOTOR (FAN)M1F
MOTOR (COMPRESSOR)M1C
LIGHT EMITTING DIODE (RED)H1P,H2P
LIGHT EMITTING DIODE (GREEN)HAP
FUSE (250V,5A)F1U,F2U
PRINTED CIRCUIT BOARDA1P,A2P
SELECTOR SWITCH (DEFROST)DS1
CAPACITOR (M1F)C1R
PUMP DOWN)
PUSH BUTTON (FORCED DEFROST-
BS1
PRESSURE SWITCH (LOW)S1LP
PRESSURE SWITCH (HIGH)S1PH
MAGNETIC CONTACTOR (M1C)K1M
THERMO SWITCH (M1F)Q1L
4 WAY VALVEY1R
EXPANSION VALVEY1E
N-BLUL3-BLKL2-WHTL1-RED
L : LIVE
: TERMINAL
YLW : YELLOW
FIELD WIRING
: CONNECTOR
: WIRE CLAMP
N : NEUTRAL
BLK : BLACK
BLU : BLUE
RED : RED
WHT : WHITE
ORG : ORANGE
NOTE : DO NOT OPERATE THE UNIT BY SHORT-CIRCUITING S1LP.
(SCREW)
: PROTECTIVE EARTH
DS2 SELECTOR SWITCH (VARIOUS: SEE PCB)
RyR MAGNETIC RELAY (Y1S)
Y1S SOLENOID VALVE
X20A
RyR
Y1S
X27A
DS2
DS3
