Switch Box Layout ESiEN02–01A
1–110 Part 1 – System Outline
3
11
4
5
5.16 FHYP35BV1, FHYP45BV1, FHYP60BV1, FHYP71BV1,
FHYP100BV1 and FHYP125BV1

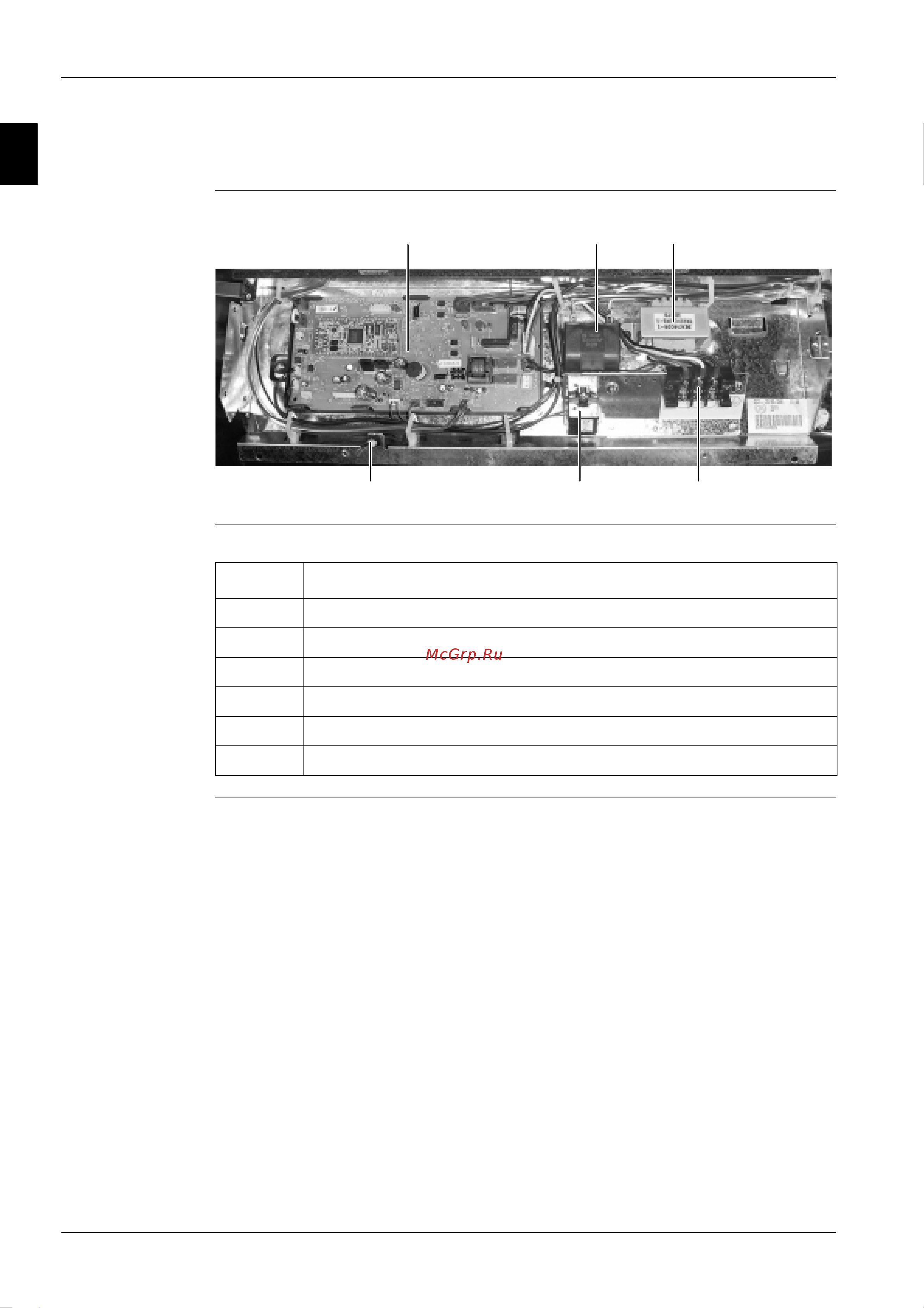

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
X1M
T1RC1RPCB1
X2M
R1T
Symbol Component
PCB1 Printed circuit board
C1R Fan motor capacitor
T1R Transformer
X2M Terminal strip (interconnection wiring)
X1M Terminal strip (for remote control P1/P2)
R1T Air thermistor
