ESiEN02–01A PCB Layout
Part 1 – System Outline 1–157
3
1
4
5

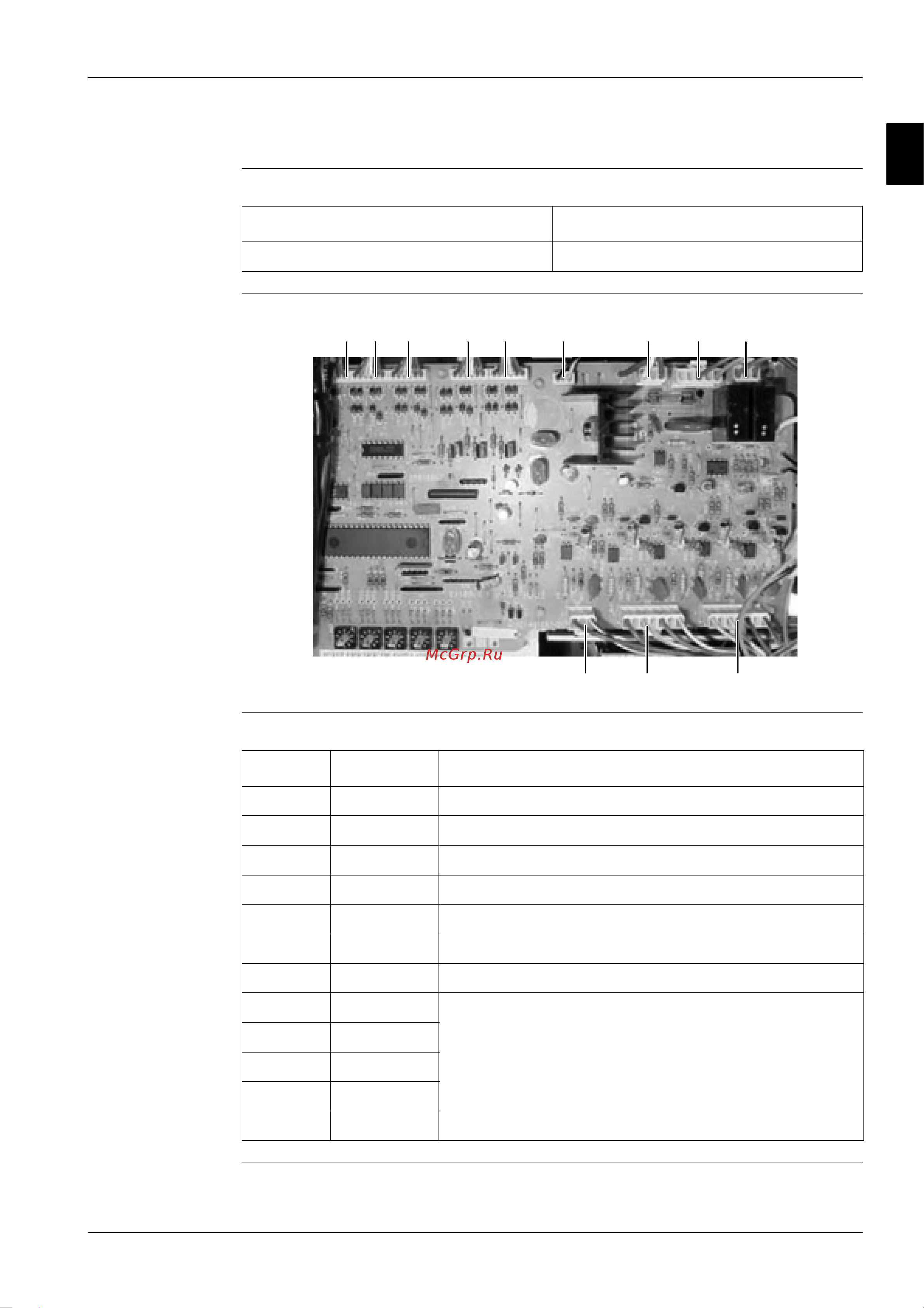

8.13 PCB Type J
Applicable The table below contains the applicable PCB number and unit of this PCB type.
PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
PCB No. Unit
2PB38042-21 (illustrated below) MA90GZ7W11
S6 S5 S4
SE SD SC SB SA S3 S2 S1 S7
Connector Connected to Description
S1 X3M Terminal strip
S2 T1R Transformer
S3 PCB2 —
S4 X2M Room A and B
S5 X2M Room C and D
S6 X2M Room E
S7 Y1S Solenoid valve
SA Y11E Electronic expansion valve
SB Y12E
SC Y13E
SD Y14E
SE Y15E
