ESiEN02–01A PCB Layout
Part 1 – System Outline 1–155
3
1
4
5

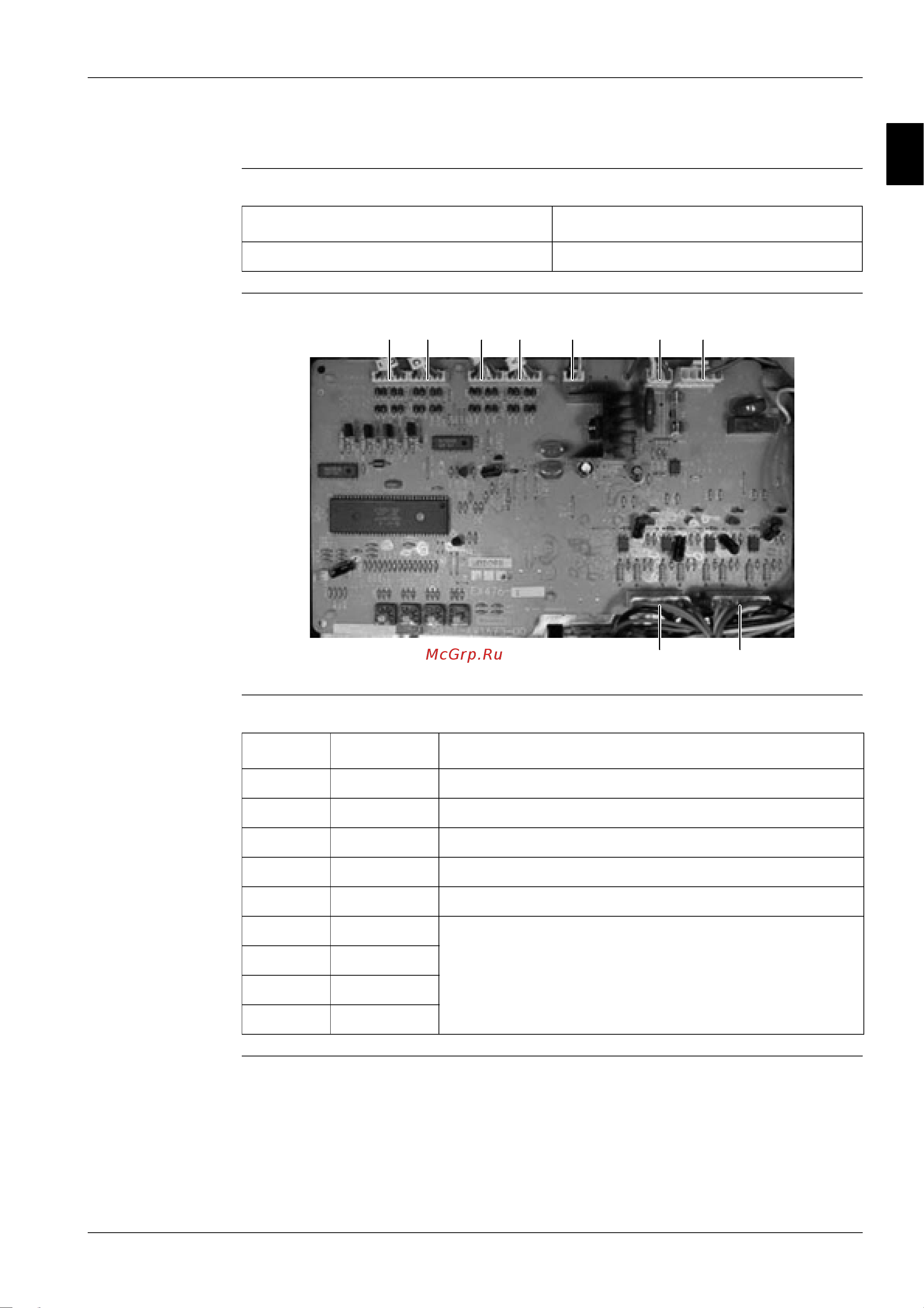

8.11 PCB Type H
Applicable The table below contains the applicable PCB number and unit of this PCB type.
PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
PCB No. Unit
2P068330-1 (illustrated below) MA56GZ7W11
SD
S5
SC SB SA S3 S2 S1
S4
Connector Connected to Description
S1 — Power supply
S2 T1R Transformer
S3 PCB2 —
S4 X2M Room A and B
S5 X2M Room C and D
SA Y11E Electronic expansion valve
SB Y12E
SC Y13E
SD Y14E
