General Outline: Outdoor Units ESiEN02–01A
1–22 Part 1 – System Outline
3
11
4
5
1.11 RP71B7V1, RP71B7W1, RP71B7T1, RYP71B7V1, RYP71B7W1,
RP100B7V1, RP100B7W1, RP100B7T1, RP125B7W1, RP125B7T1,
RYP100B7V1, RYP100B7W1 and RYP125B7W1:
Installation and Service Space

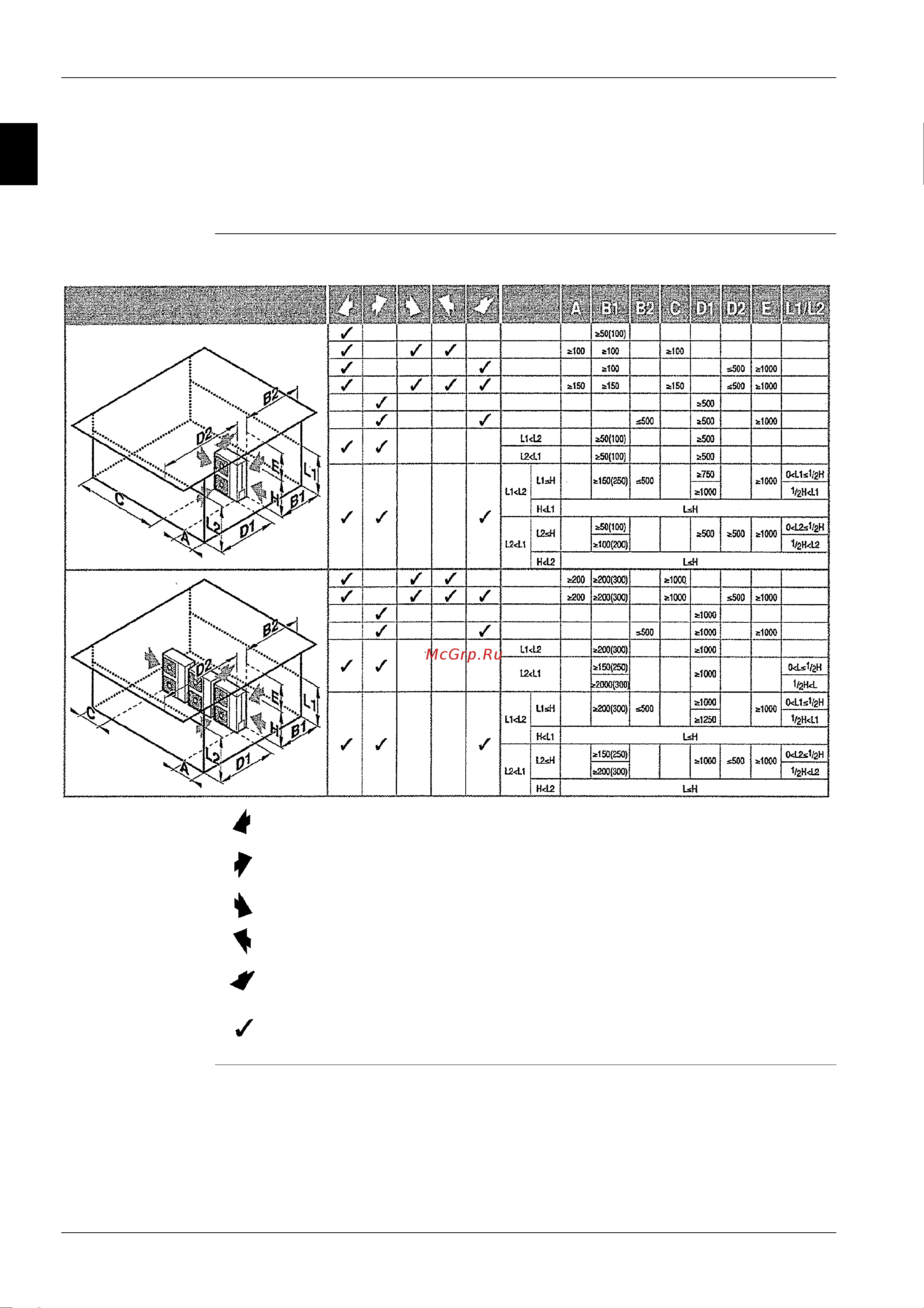

Non stacked The illustrations and table below show the required installation and service space (mm). The values in
brackets are for the 100 and 125 class.
Suction side obstacle
Discharge side obstacle
Left side obstacle
Right side obstacle
Top side obstacle
Obstacle is present
