ESiEN02–01A Switch Box Layout
Part 1 – System Outline 1–109
3
1
4
5
5.15 FDYP125B7V1, FDYP200B7V1 and FDYP250B7V1

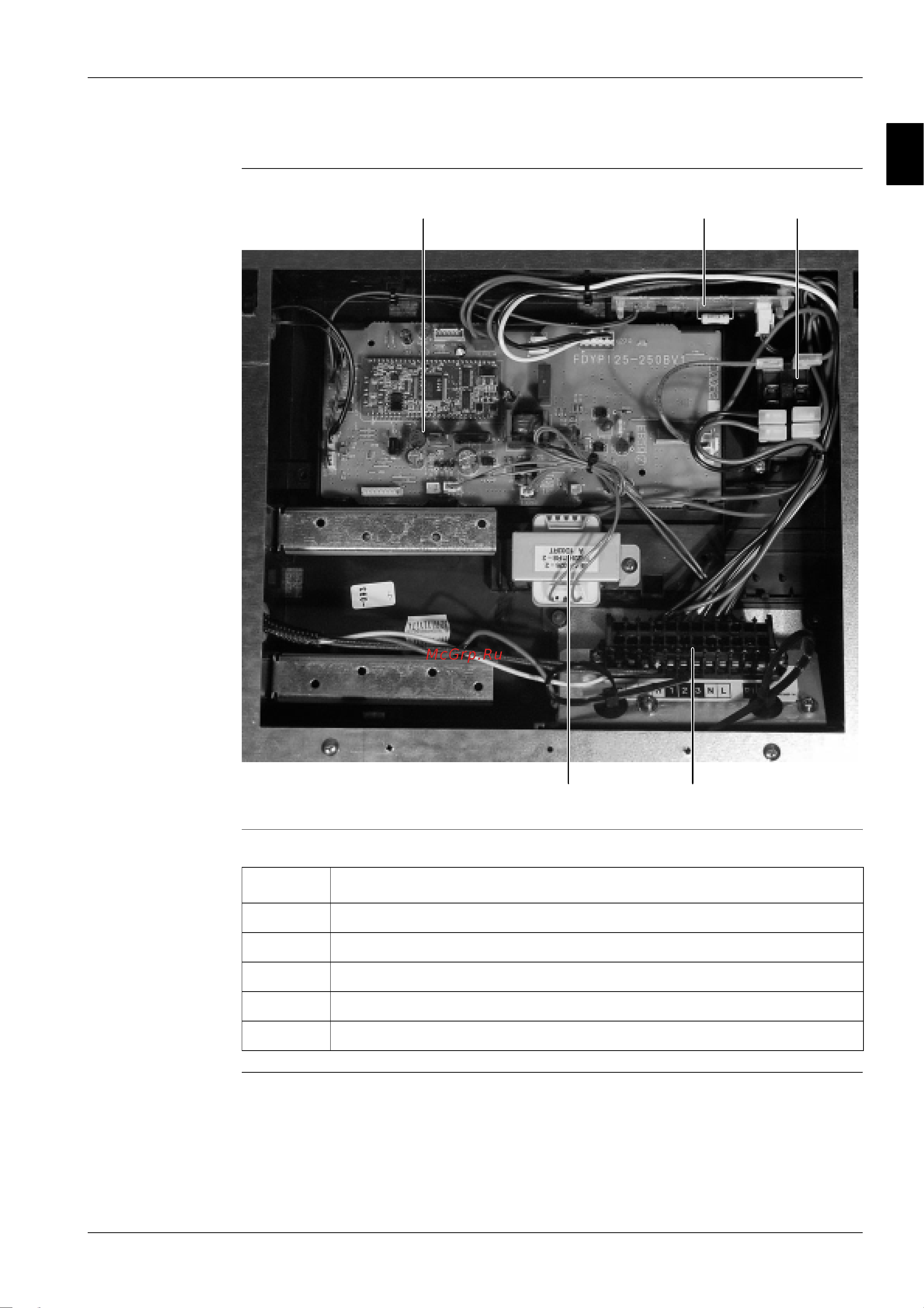

Switch box The illustration below shows the switch box layout.
Components The table below contains the components of the switch box.
X1M
PCB1
T1R
K1FPCB2
Symbol Component
PCB1 Printed circuit board
PCB2 Printed circuit board (interlock PCB)
K1F Magnetic contactor
X1M Terminal strip
T1R Transformer
