ESiEN02–01A PCB Layout
Part 1 – System Outline 1–149
3
1
4
5

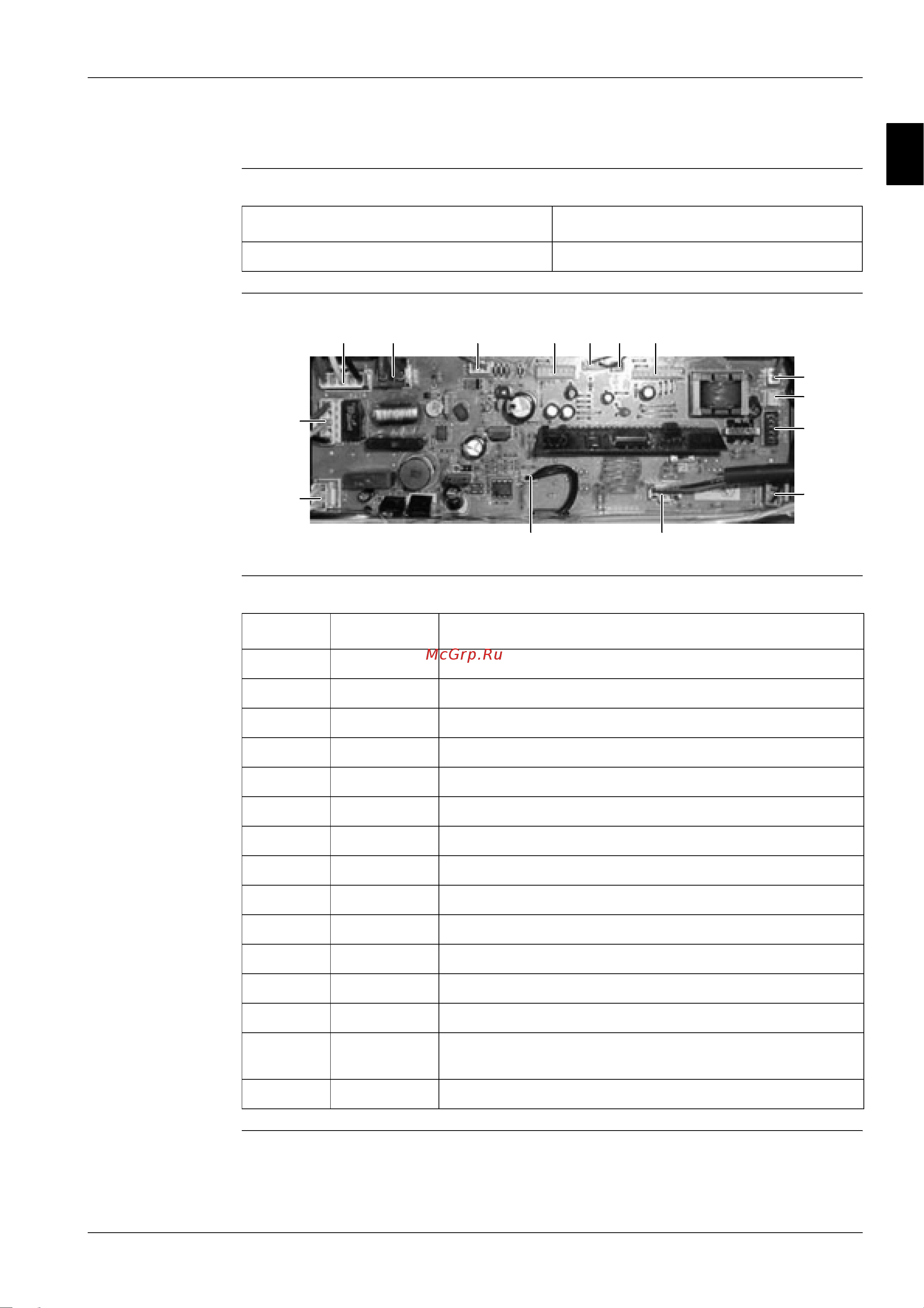

8.5 PCB Type A
Applicable The table below contains the applicable PCB number and unit of this PCB type.
PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
PCB No. Unit
2P018671-1 (illustrated below) FHYC35/45BZ7V1
X27A
X5A
X18A
X20A
X25A
X36A
X35A
X24A
X15A
X11A X10A X33A X19A X30AX23A
Connector Connected to Description
X5A X1M Terminal strip (P1 and P2)
X10A T1R Transformer 230V/22V secundary
X11A T1R Transformer 230V/22V primary
X15A 33H Float switch
X18A R2T Heat exchanger thermistor
X19A R1T Air thermistor
X20A M2F Fan motor
X23A — Connector to capacity adapter
X24A X2A on A2P Receiver IR remote control (option)
X25A M3P Drain pump motor
X27A X2M Power supply and communication to the outdoor unit
X30A — Connector to interface adapter for Sky Air series (DTA102)
X33A — Connector to X1A on the adapter for wiring (option KRP1B)
X35A X1A (KRP4) Connector to group control adapter power supply (16 VDC) for
optional PCB KRP4
X36A M1A Swing flap motor
