ESiEN02–01A General Outline: Outdoor Units
Part 1 – System Outline 1–13
3
1
4
5
Installation and
service space

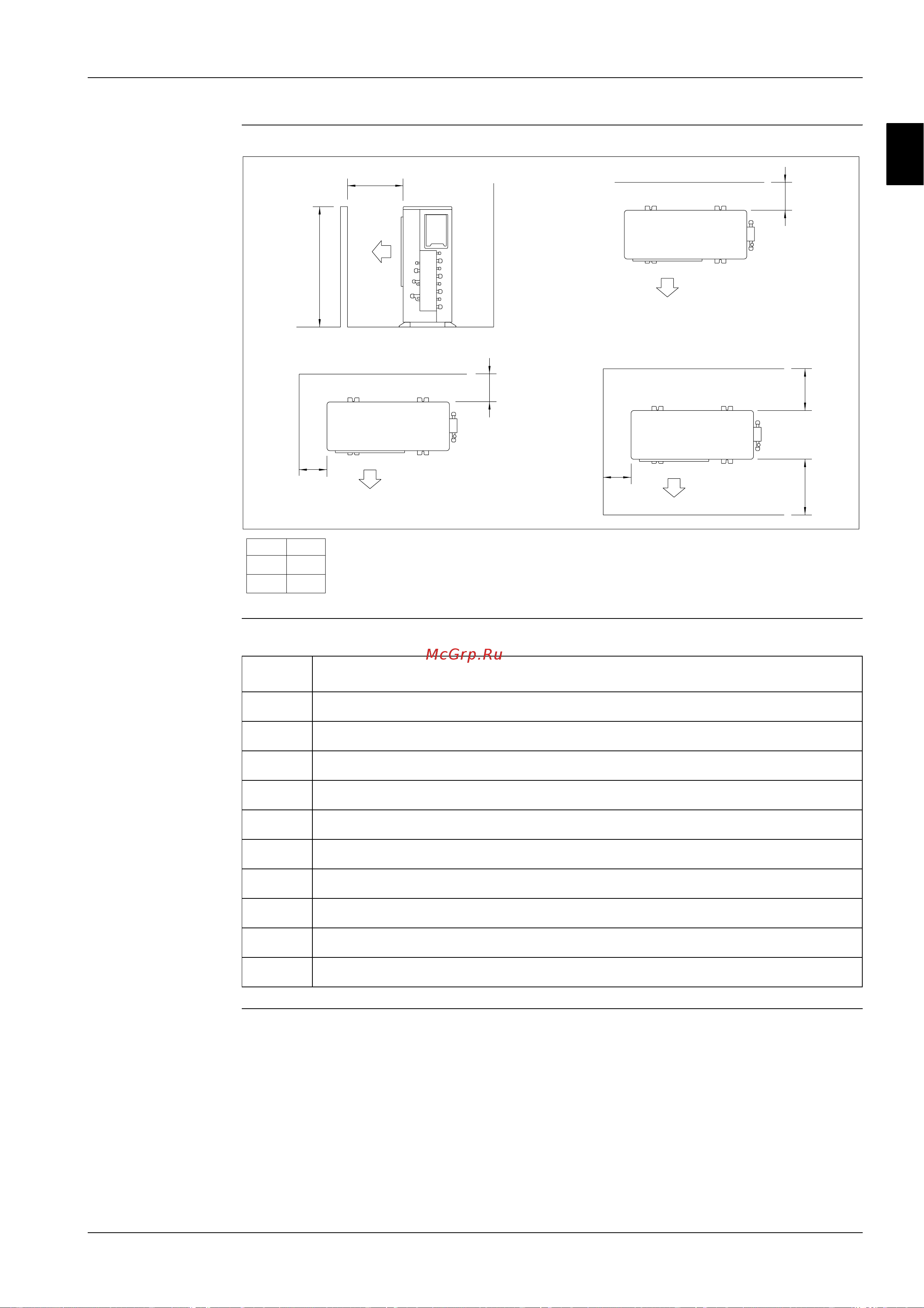

The illustration below shows the required installation and service space (mm).
Components The table below contains the different components of the unit.
H
100
100
A 150
A
100
100
HA
≤ 1000 350
> 1000 600
No. Component
1 3 x drain outlet
2 4 x hole for anchor bolt (M8 or M10)
3 Terminal cover
4 Grounding terminal
5 Gas stop valve with service port
6 Liquid stop valve with service port
7 Name plate
8 Gas pipe connection
9 Liquid pipe connection
10 Service port
