Field settings ESiEN02–01A
4–26 Part 4 – Commissioning and Test Run
3
1
4
5

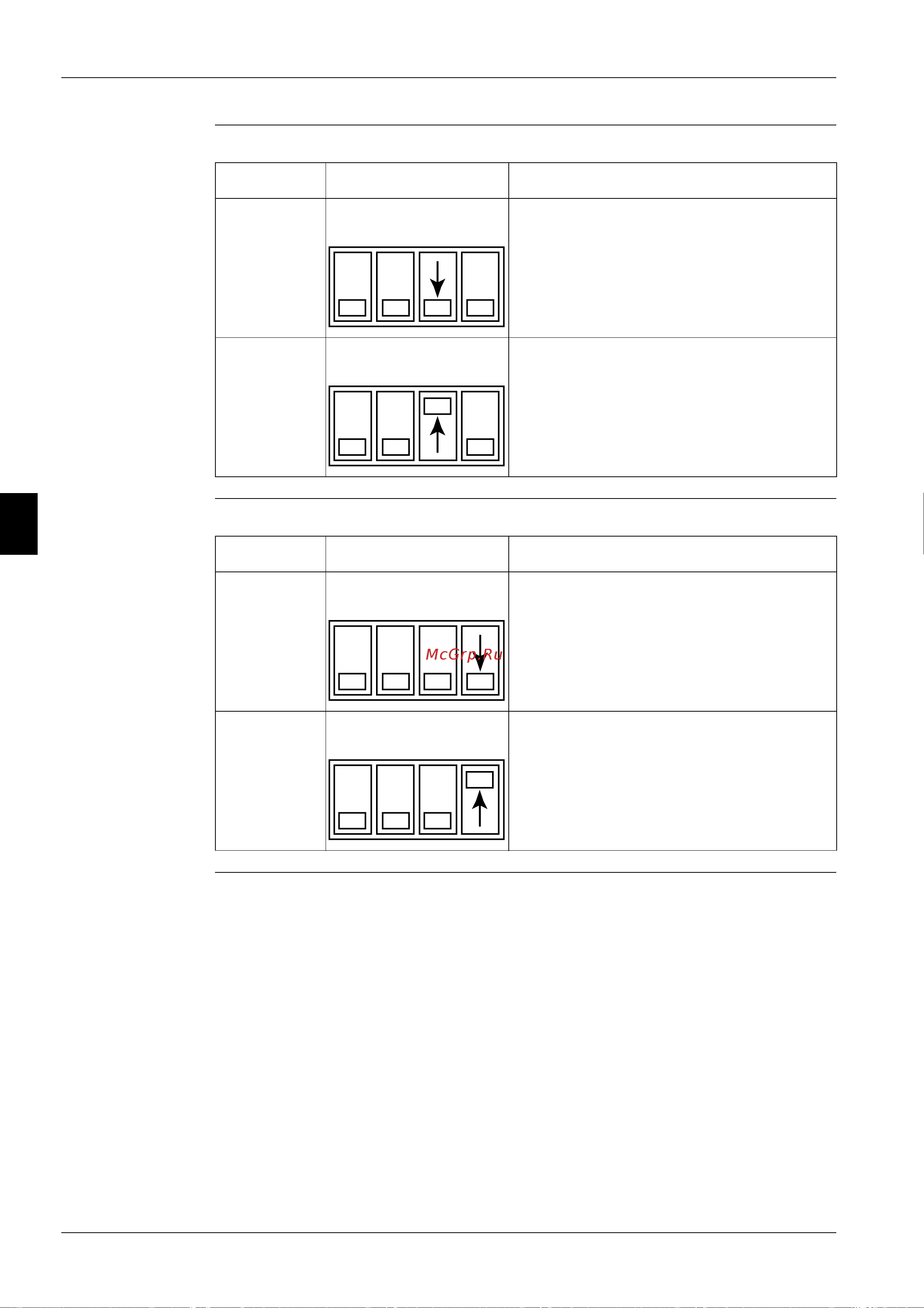

DS2-3:
Freeze 1
The table below describes the DIP switch.
DS2-4:
Freeze 2
The table below describes the DIP switch.
Setting Illustration Function
Factory setting OFF Enables the “intelligent” control function.
See page 2–28.
Field setting ON Disables the “intelligent” control function. It returns
to the freeze-up activation conditions similar as for
the G- and K-types.
1234
1234
Setting Illustration Function
Factory setting OFF Normal operation.
Field setting ON Enables the countermeasure to avoid ice/water
blow-out during freeze-up cycle.
1234
1234
