ESiEN02–01A General Outline: Indoor Units
Part 1 – System Outline 1–29
3
1
4
5
Installation and
service space

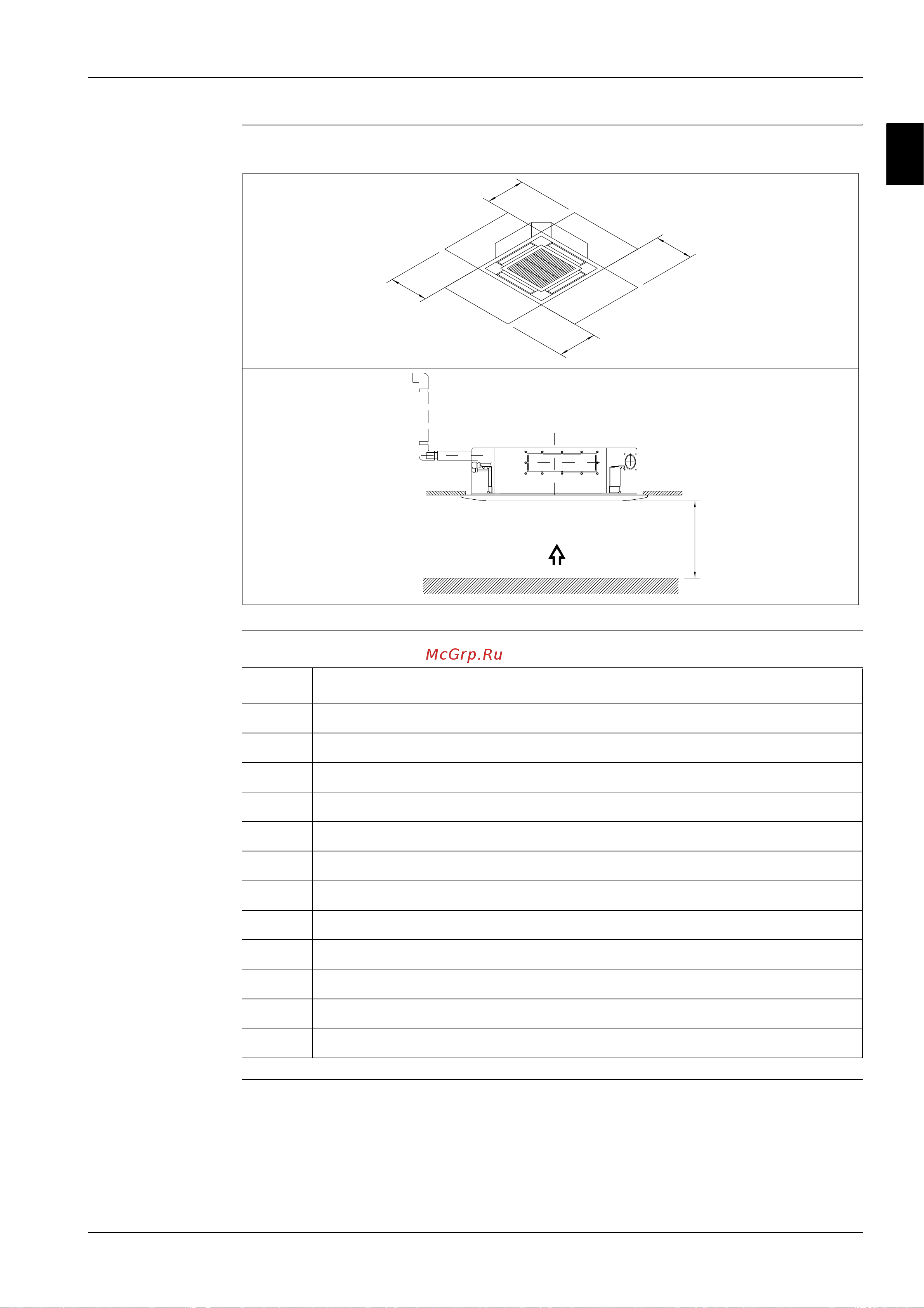

The illustration below shows the required installation and service space. When a discharge grille is
closed (e.g. 3-way blow application), the required space is 200 mm or more (mm).
Components The table below contains the different components of the unit.
A
1
5
0
0
o
r
m
o
r
e
1
5
0
0
o
r
m
o
r
e
1
5
0
0
o
r
m
o
r
e
1
5
0
0
o
r
m
o
r
e
1000 or more
No. Component
1 Liquid pipe connection
2 Gas pipe connection
3 Drain pipe connection
4 Power supply connection
5 Transmission wiring connection
6 Air discharge grille
7 Air suction grille
8 Water supply intake
9 Corner decoration cover
10 Drain hose
11 In case an infrared remote control is used, this position is a signal receiver.
12 Branch duct connection
