7 | Installation
Installer reference guide
101
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10

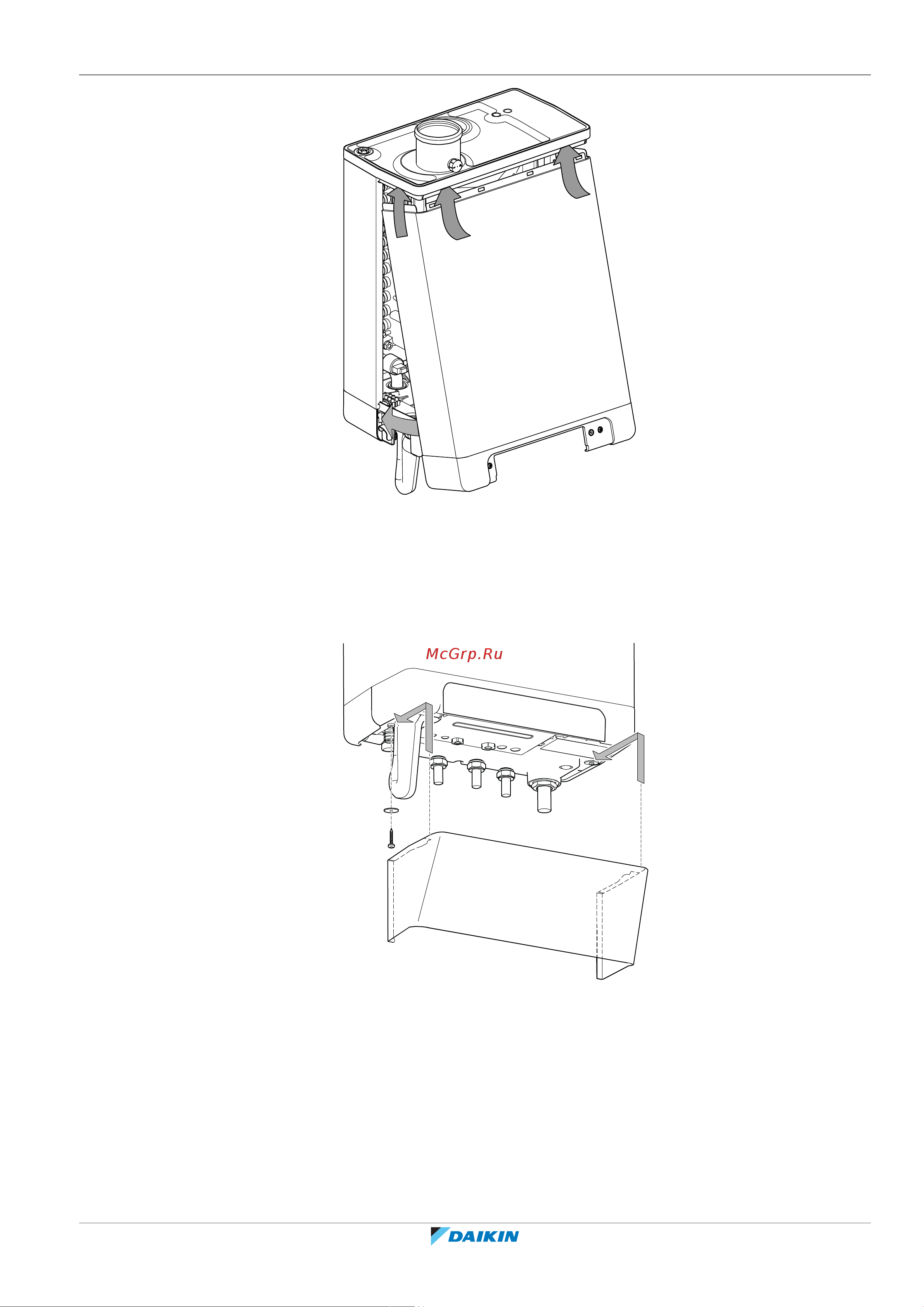

2 Tilt the bottom side of the front panel towards the gas boiler.
3 Screw both screws of the cover.
4 Close the display cover.
7.15.3 To install the cover plate
The boiler cover plate is an optional product.
