Daikin CHYHBH08AFV32 [169/220] Maintenance and service
![Daikin CHYHBH08AFV32 [169/220] Maintenance and service](/views2/1798393/page169/bga9.png)
12 | Maintenance and service
Installer reference guide
169
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10

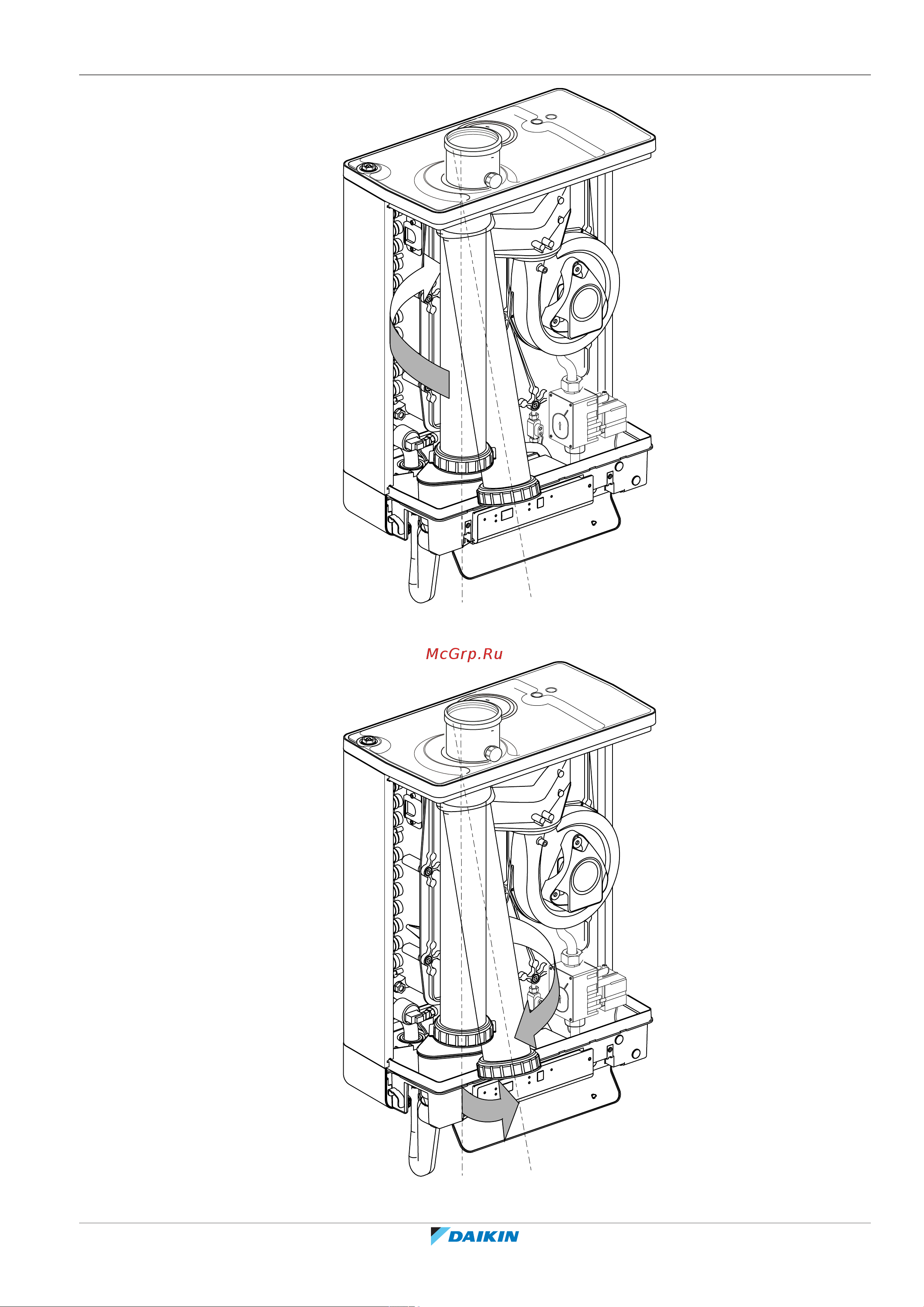

8 Pull the bottom of the pipe forwards and remove the pipe downwards by
turning the pipe alternately clockwise and counterclockwise.
