7 | Installation
Installer reference guide
80
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10
CAUTION
For installation in damp rooms, a fixed connection is obligatory. When working on
the electrical circuit ALWAYS isolate the electric supply.

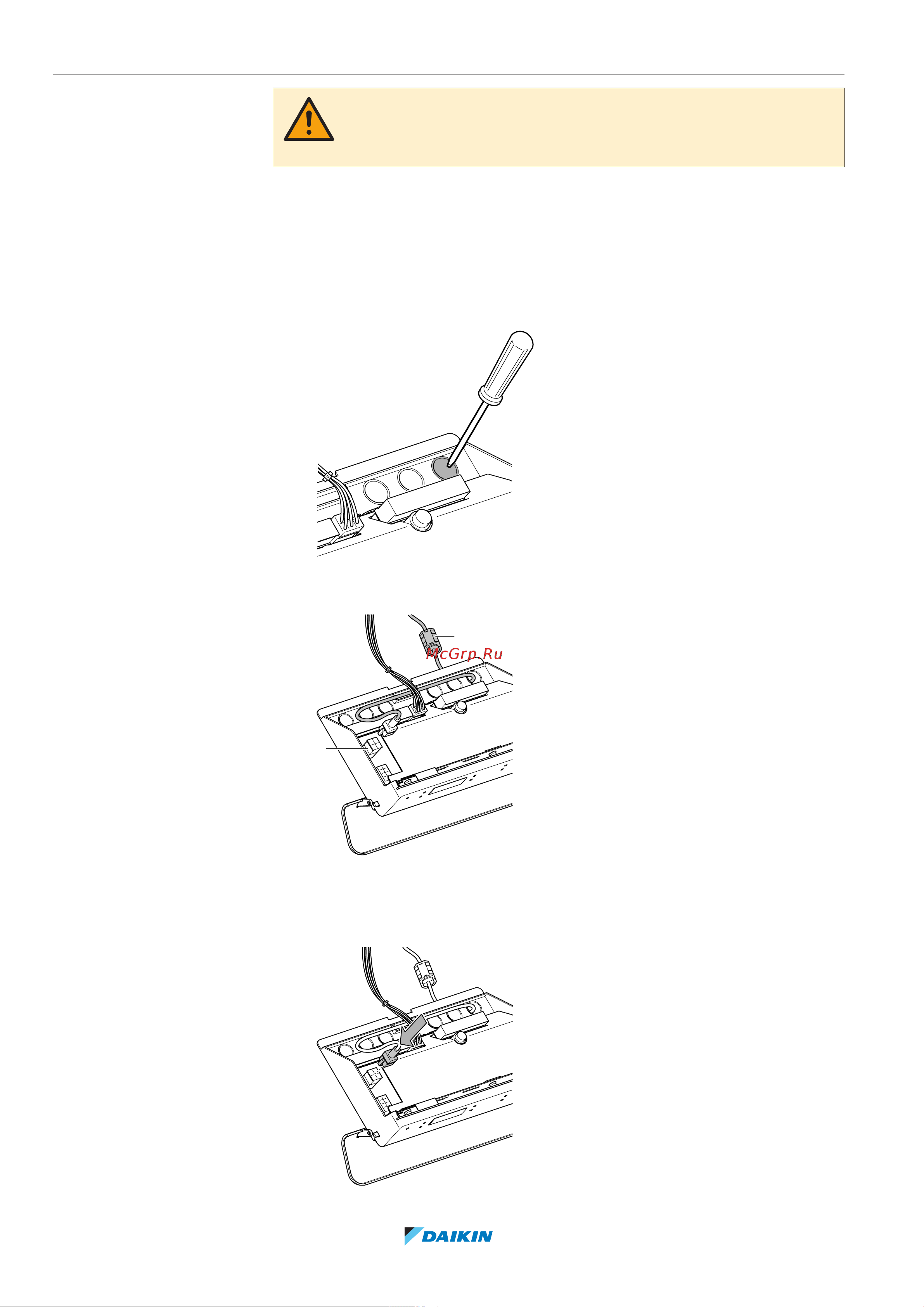

7.10.7 To connect the communication cable between gas boiler and indoor unit
1 Open the gas boiler.
2 Open the switch box cover of the gas boiler.
3 Remove one of the bigger knockout holes on the right side of the switch box
of the gas boiler.
4 Put the (larger) boiler connector through the knockout hole. Fix the cable in
the switch box by routing it behind the pre-mounted wires.
a
b
a Solenoid coil
b Connector X5
5 Plug the gas boiler connector into connector X5 of the gas boiler PCB. Make
sure the solenoid coil is outside the gas boiler switch box.
