15 | Technical data
Installer reference guide
203
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10
INFORMATION
▪ h=Height measured from the floor to the flare nut.
▪ H=Height measured from the floor to the bottom of the casing.
▪ In cases where H≤600mm, h is always considered to be 600mm, as specified in
IEC60335-2-40:2013 A1 2016 Clause GG2.
▪ For intermediate H values (i.e., when H is between 2 H values from the table),
consider the value that corresponds to the lower H value from the table. If
H=950mm, consider the value that corresponds to "H=900mm".
▪ For intermediate dm values (i.e., when dm is between 2 dm values from the
table), consider the higher dm value from the table. For 3MXM52 with m
c
=2kg
and dm=0.25kg, consider "dm=0.4kg".

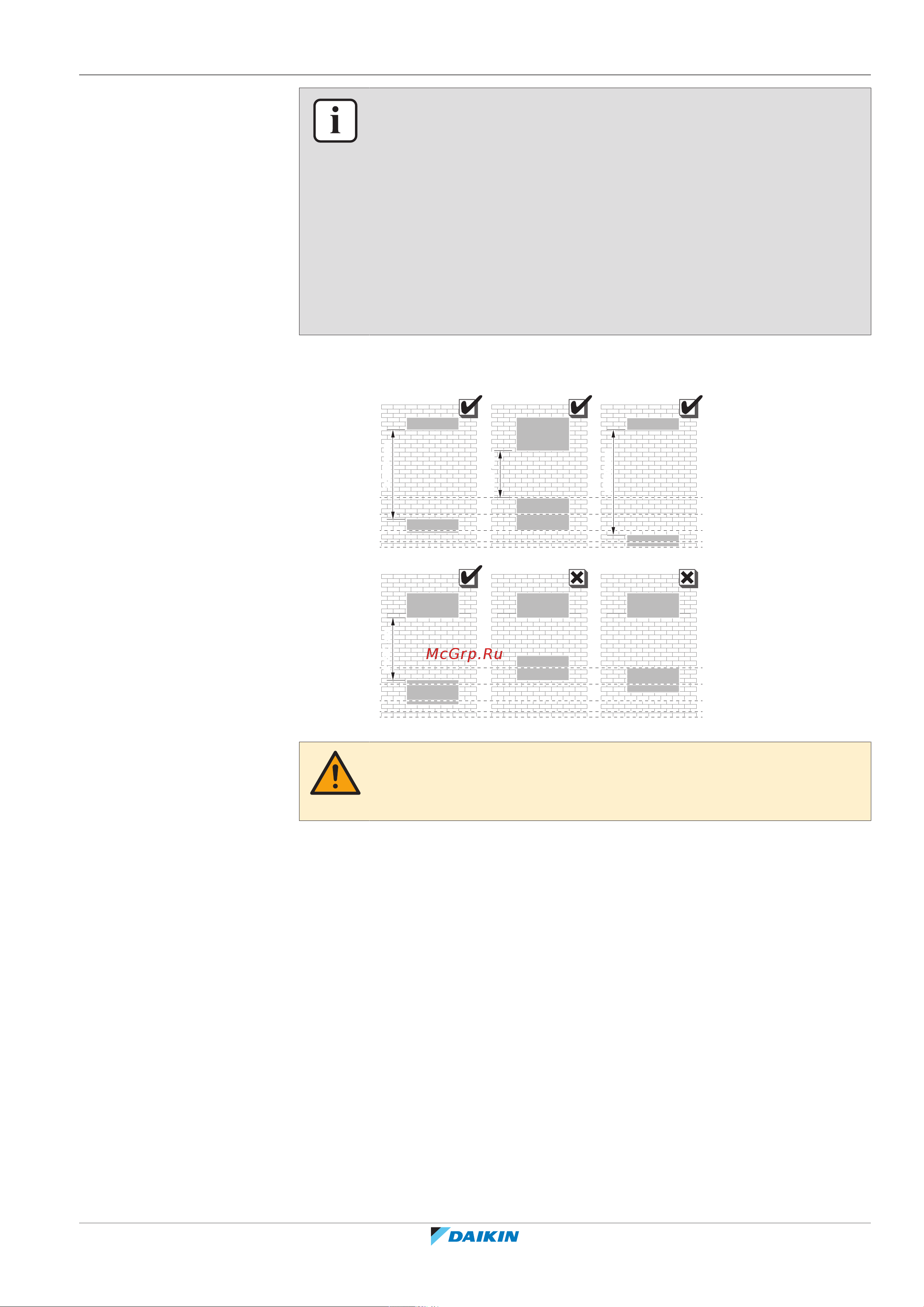

Following graphics are possible examples about minimum venting opening area for
natural ventilation.
0 mm
20 mm
100 mm
200 mm
300 mm
≥VA
min
VA
min
≥1500 mm
≥1500 mm
≥1500 mm
0 mm
20 mm
100 mm
200 mm
300 mm
≥1500 mm
≥VA
min
VA
min
WARNING
In case of a different configuration is used, do NOT deviate from requirements
mentioned in "6Preparation"[436].
