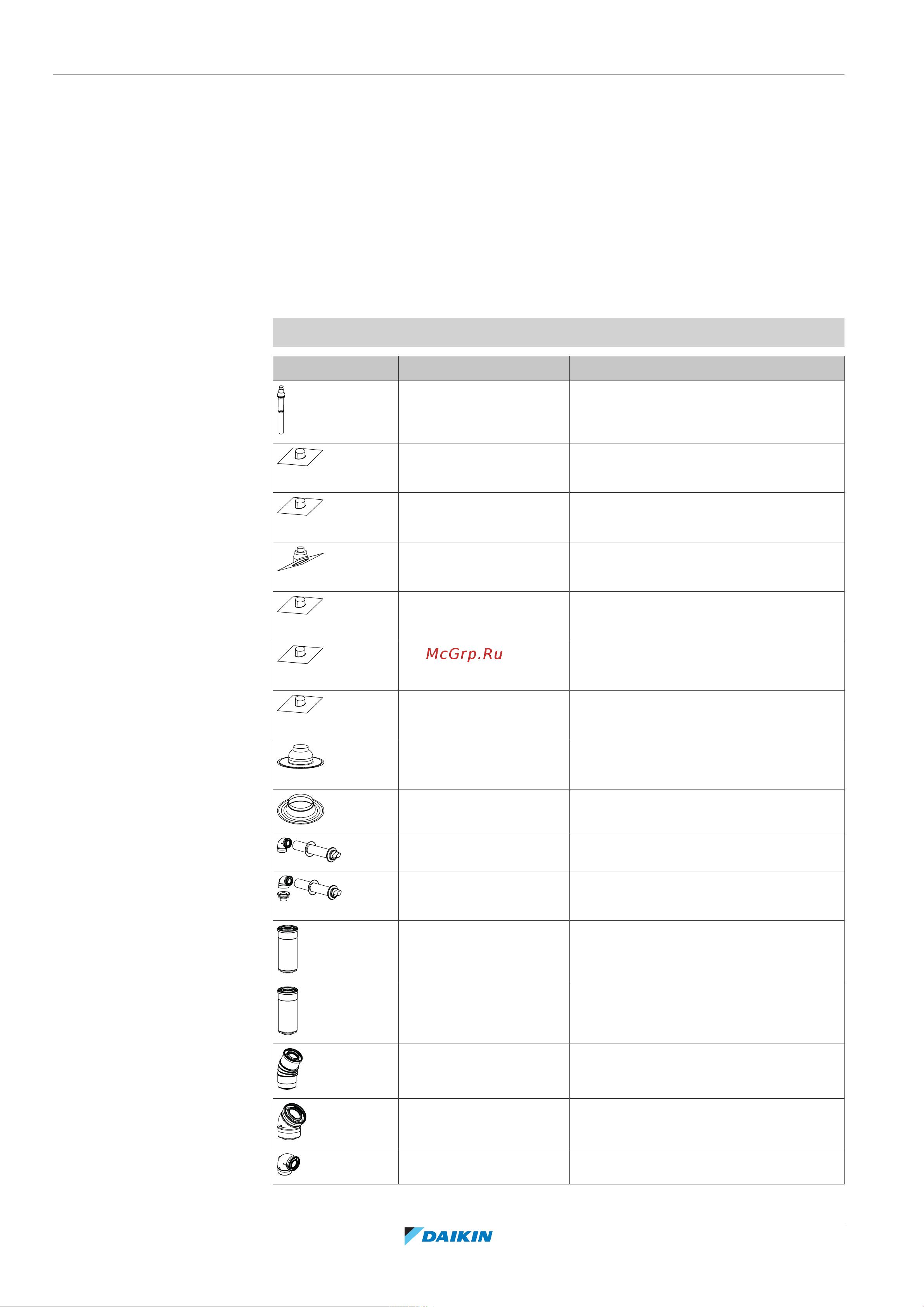

5 | About the units and options
Installer reference guide
30
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10
Dual pipe conversion kit (EKHY090707)
Kit for the conversion of a concentric flue gas system to a dual pipe system.
For installation instructions, see the installation manual of the dual pipe conversion
kit.
80/125 concentric connection kit (EKHY090717)
Kit for the conversion of 60/100 concentric flue gas connections to 80/125
concentric flue gas connections.
For installation instructions, see the installation manual of the concentric
connection kit.
Other options
Accessories Part number Description
EKFGP6837 Roof terminal PP/GLV 60/100 AR460
EKFGS0518 Weather slate steep Pb/GLV 60/100
18°-22°
EKFGS0519 Weather slate steep Pb/GLV 60/100
23°-17°
EKFGP7910 Weather slate steep PF 60/100
25°-45°
EKFGS0523 Weather slate steep Pb/GLV 60/100
43°-47°
EKFGS0524 Weather slate steep Pb/GLV 60/100
48°-52°
EKFGS0525 Weather slate steep Pb/GLV 60/100
53°-57°
EKFGP1296 Weather slate flat Aluminium 60/100
0°-15°
EKFGP6940 Weather slate flat Aluminium 60/100
EKFGP2978 Wall terminal kit PP/GLV 60/100
EKFGP2977 Wall terminal kit low profile PP/GLV
60/100
EKFGP4651 Extension PP/GLV 60/100×500mm
EKFGP4652 Extension PP/GLV 60/100×1000mm
EKFGP4664 Elbow PP/GLV 60/100 30°
EKFGP4661 Elbow PP/GLV 60/100 45°
EKFGP4660 Elbow PP/GLV 60/100 90°
