15 | Technical data
Installer reference guide
200
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10

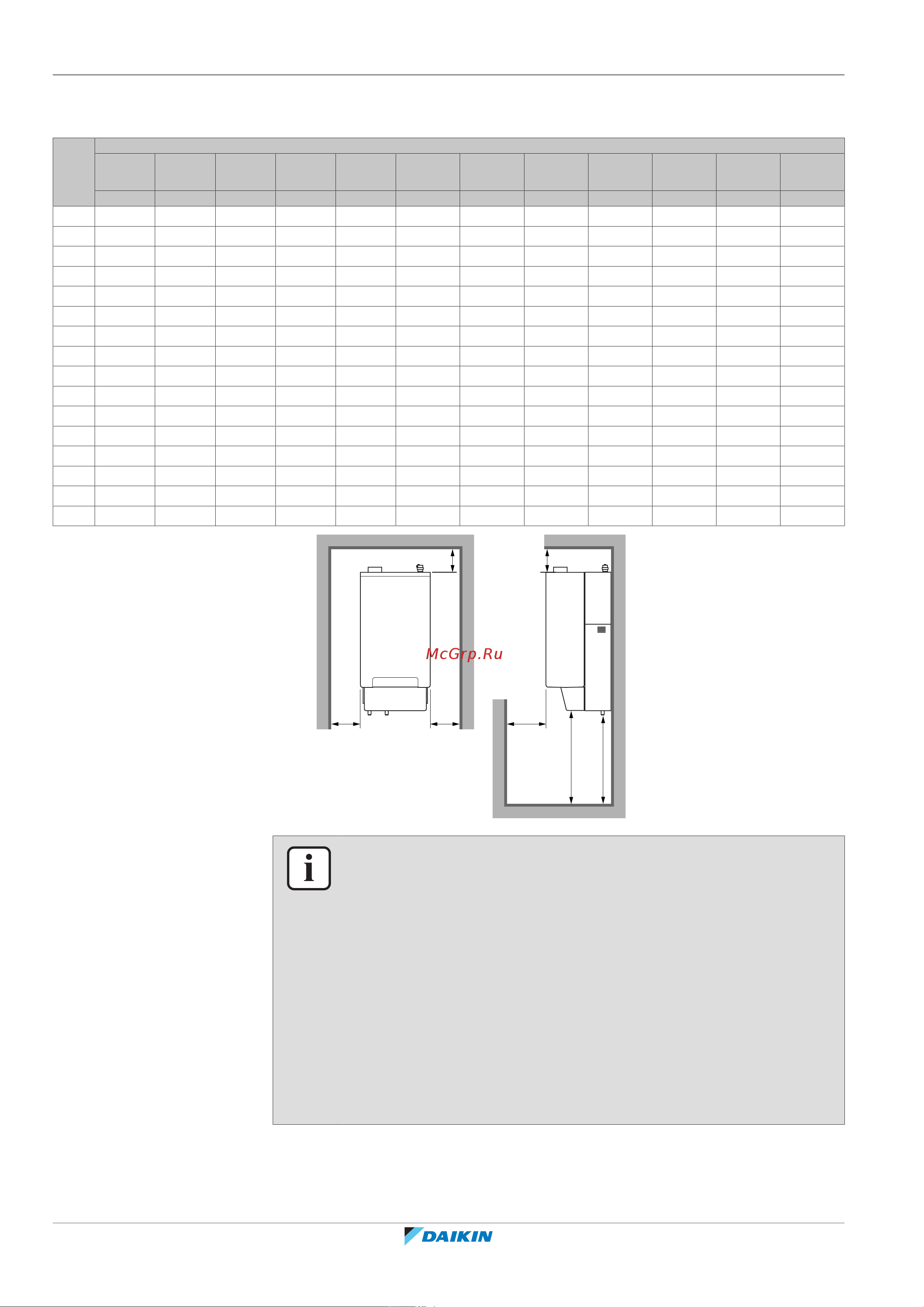

15.5 Table 2 – Minimum floor area: indoor unit
m
c
(kg) Minimum floor area (m²)
H=500mm,
600mm,
700mm
H=800mm H=900mm H=1000mm H=1100mm H=1200mm H=1300mm H=1400mm H=1500mm H=1600mm H=1700mm H=1800mm
h=600mm h=700mm h=800mm h=900mm h=1000mm h=1100mm h=1200mm h=1300mm h=1400mm h=1500mm h=1600mm h=1700mm
1.80 27.80 20.43 15.64 12.36 10.01 8.27 6.95 6.03 5.60 5.23 4.90 4.61
1.90 30.98 22.76 17.42 13.77 11.15 9.22 7.74 6.60 5.91 5.52 5.17 4.87
2.00 34.32 25.22 19.31 15.25 12.36 10.21 8.58 7.31 6.30 5.81 5.45 5.13
2.10 37.84 27.80 21.29 16.82 13.62 11.26 9.46 8.06 6.95 6.10 5.72 5.38
2.20 41.53 30.51 23.36 18.46 14.95 12.36 10.38 8.85 7.63 6.64 5.99 5.64
2.30 45.39 33.35 25.53 20.17 16.34 13.50 11.35 9.67 8.34 7.26 6.38 5.90
2.40 49.42 36.31 27.80 21.97 17.79 14.70 12.36 10.53 9.08 7.91 6.95 6.16
2.50 53.63 39.40 30.17 23.83 19.31 15.96 13.41 11.42 9.85 8.58 7.54 6.68
2.6 58.00 42.62 32.63 25.78 20.88 17.26 14.50 12.36 10.65 9.28 8.16 7.23
2.7 62.55 45.96 35.19 27.80 22.52 18.61 15.64 13.32 11.49 10.01 8.80 7.79
2.8 67.27 49.42 37.84 29.90 24.22 20.01 16.82 14.33 12.36 10.76 9.46 8.38
2.9 72.16 53.02 40.59 32.07 25.98 21.47 18.04 15.37 13.25 11.55 10.15 8.99
3 77.22 56.74 43.44 34.32 27.80 22.98 19.31 16.45 14.18 12.36 10.86 9.62
3.1 82.46 60.58 46.38 36.65 29.69 24.53 20.61 17.57 15.15 13.19 11.60 10.27
3.2 87.86 64.55 49.42 39.05 31.63 26.14 21.97 18.72 16.14 14.06 12.36 10.95
3.3 93.44 68.65 52.56 41.53 33.64 27.80 23.36 19.90 17.16 14.95 13.14 11.64
H>500
300
h
300
10 350 500
(mm)
INFORMATION
▪ h=The height measured from the floor to the flare nut.
▪ H=The height measured from the floor to the bottom of the casing.
▪ For intermediate H values (i.e., when H is between 2 H values from the table),
consider the value that corresponds to the lower H value from the table. If
H=950mm, consider the value that corresponds to "H=900mm".
▪ In cases where H≤600mm, h is always considered to be 600mm, as specified in
IEC60335-2-40:2013 A1 2016, clause GG2.
▪ For intermediate m
c
values (i.e., when m
c
is between 2 m
c
values from the table),
consider the value that corresponds to the higher m
c
value from the table. If
m
c
=2.35kg, consider "m
c
=2.4kg".
▪ Systems with a total refrigerant charge (m
c
) ≤1.842kg are NOT subjected to any
requirements to the installation room.
