12 | Maintenance and service
Installer reference guide
170
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10

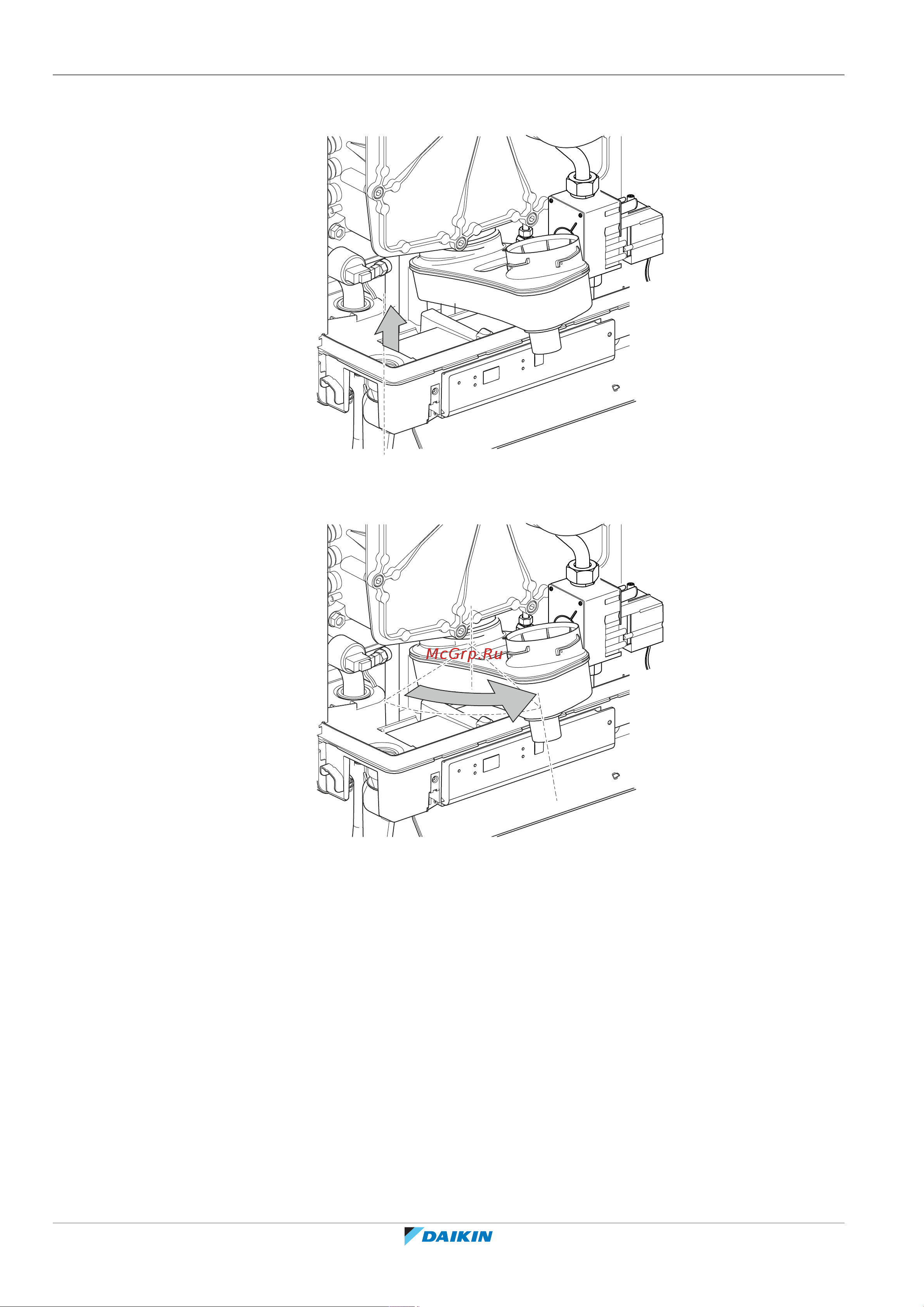

9 Lift the condensate drain pan on the left-hand side from the connection to the
condensate trap.
10 Turn it to the right with the condensate trap connection over the edge of the
base tray.
11 Push the backside of the condensate drain pan downwards from the
connection to the heat exchanger and remove it.
