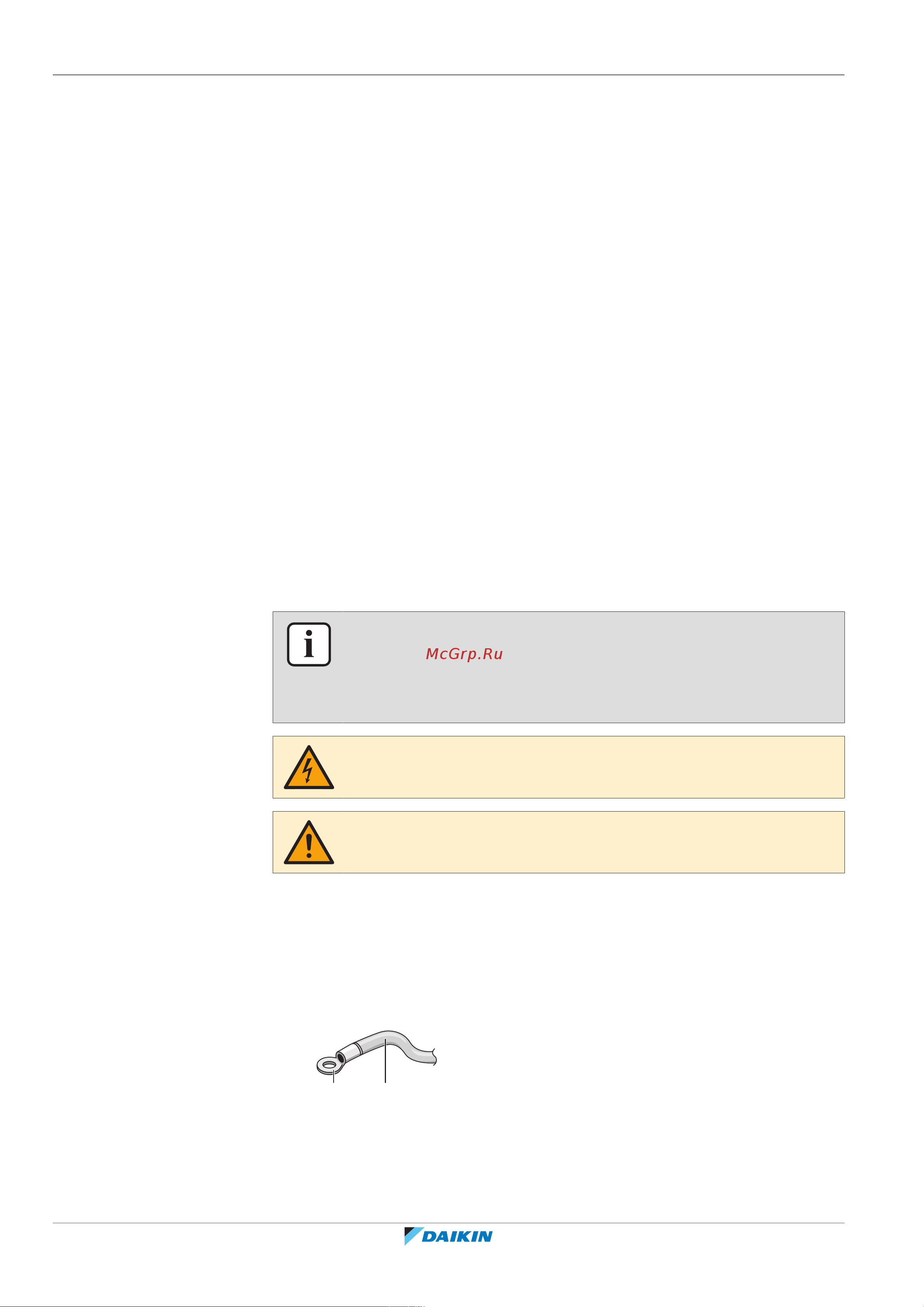

7 | Installation
Installer reference guide
76
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10
7.10 Connecting the electrical wiring
7.10.1 About connecting the electrical wiring
Typical workflow
Connecting the electrical wiring typically consists of the following stages:
1 Making sure the power supply system complies with the electrical
specifications of the heat pump.
2 Connecting the electrical wiring to the outdoor unit.
3 Connecting the electrical wiring to the indoor unit.
4 Connecting the main power supply of the indoor unit.
5 Connecting the main power supply of the gas boiler.
6 Connecting the communication cable between the gas boiler and the indoor
unit.
7 Connecting the user interface.
8 Connecting the shut-off valves.
9 Connecting the domestic hot water pump.
10 Connecting the alarm output.
11 Connecting the space heating ON/OFF output.
12 Connecting the safety thermostat.
7.10.2 Precautions when connecting the electrical wiring
INFORMATION
Also read the precautions and requirements in the following chapters:
▪ General safety precautions
▪ Preparation
DANGER: RISK OF ELECTROCUTION
WARNING
ALWAYS use multicore cable for power supply cables.
7.10.3 Guidelines when connecting the electrical wiring
Keep the following in mind:
▪ If stranded conductor wires are used, install a round crimp-style terminal on the
end of the wire. Place the round crimp-style terminal on the wire up to the
covered part and fasten the terminal with the appropriate tool.
b a
a Stranded conductor wire
b Round crimp-style terminal
▪ Use the following methods for installing wires:
