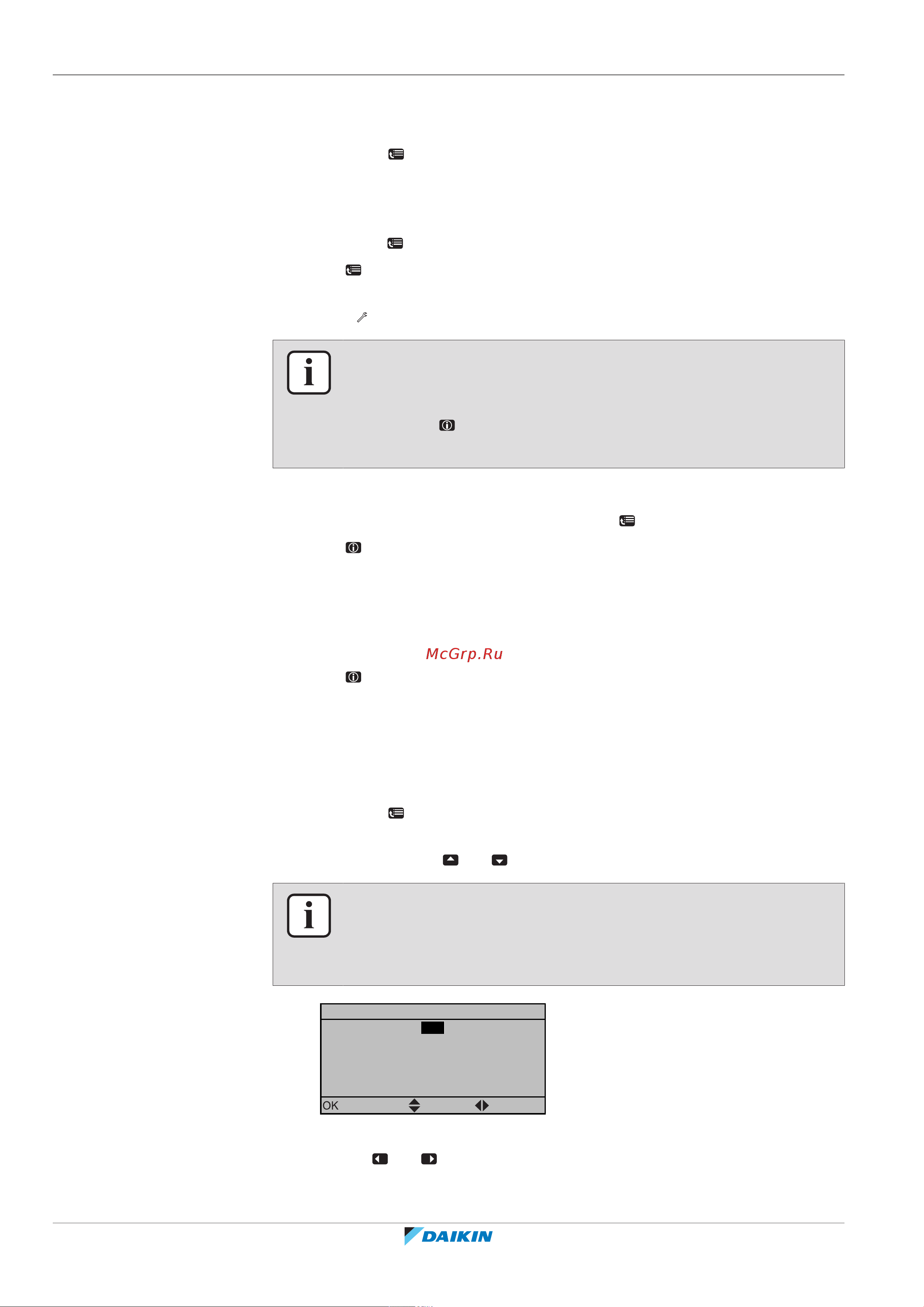

8 | Configuration
Installer reference guide
104
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10
To access the overview settings
1 Set the user permission level to Installer.
2 Go to [A.8]: > Installer settings > Overview settings.
To set the user permission level to Installer
Prerequisite: Your user permission level is Adv. end user.
1 Go to [6.4]: > Information > User permission level.
2 Press for more than 4seconds.
Result: Your user permission level is now Installer. The home pages
display .
INFORMATION
The Installer permission level switches automatically back to End user in the
following cases:
▪ If you press again for more than 4seconds, or
▪ If you do NOT press any button for more than 1hour
To set the user permission level to Advanced end user
1 Go to the main menu or any of its submenus: .
2 Press for more than 4seconds.
Result: Your user permission level is now Adv. end user. The user interface
displays additional information and a "+" is added to the menu title. The user
permission level stays in Adv. end user until manually set otherwise.
To set the user permission level to End user
1 Press for more than 4 seconds.
Result: Your user permission level is now End user. The user interface displays
the default home page.
To modify an overview setting
Example: Modify [1‑01] from 15 to 20.
1 Go to [A.8]: > Installer settings > Overview settings.
2 Go to the corresponding screen of the first part of the setting (in this example
[1-01]) by using the and button.
INFORMATION
An additional 0-digit is added to the first part of the setting when you access the
codes in the overview settings.
Example: [1‑01]: "1" will result in "01".
01
02
06
0a
0e
00 03
07
0b
0f
0000
04
08
0c
00 01
05
09
0d
15
Overview settings
Confirm Adjust Scroll
3 Go to the corresponding second part of the setting (in this example [1-01]) by
using the and button.
