Daikin CHYHBH08AFV32 [168/220] To disassemble the gas boiler

12 | Maintenance and service

Installer reference guide

168

CHYHBH05+08AF + EHYKOMB33A

Daikin Altherma R Hybrid

4P471761-1E – 2020.10

WARNING

If the internal wiring is damaged, it has to be replaced by the manufacturer, its

service agent or similarly qualified persons.

12.4 To disassemble the gas boiler

1 Turn off the appliance.

2 Turn off the main power supply of the appliance.

3 Close the gas tap.

4 Remove the front panel.

5 Wait until the appliance has cooled down.

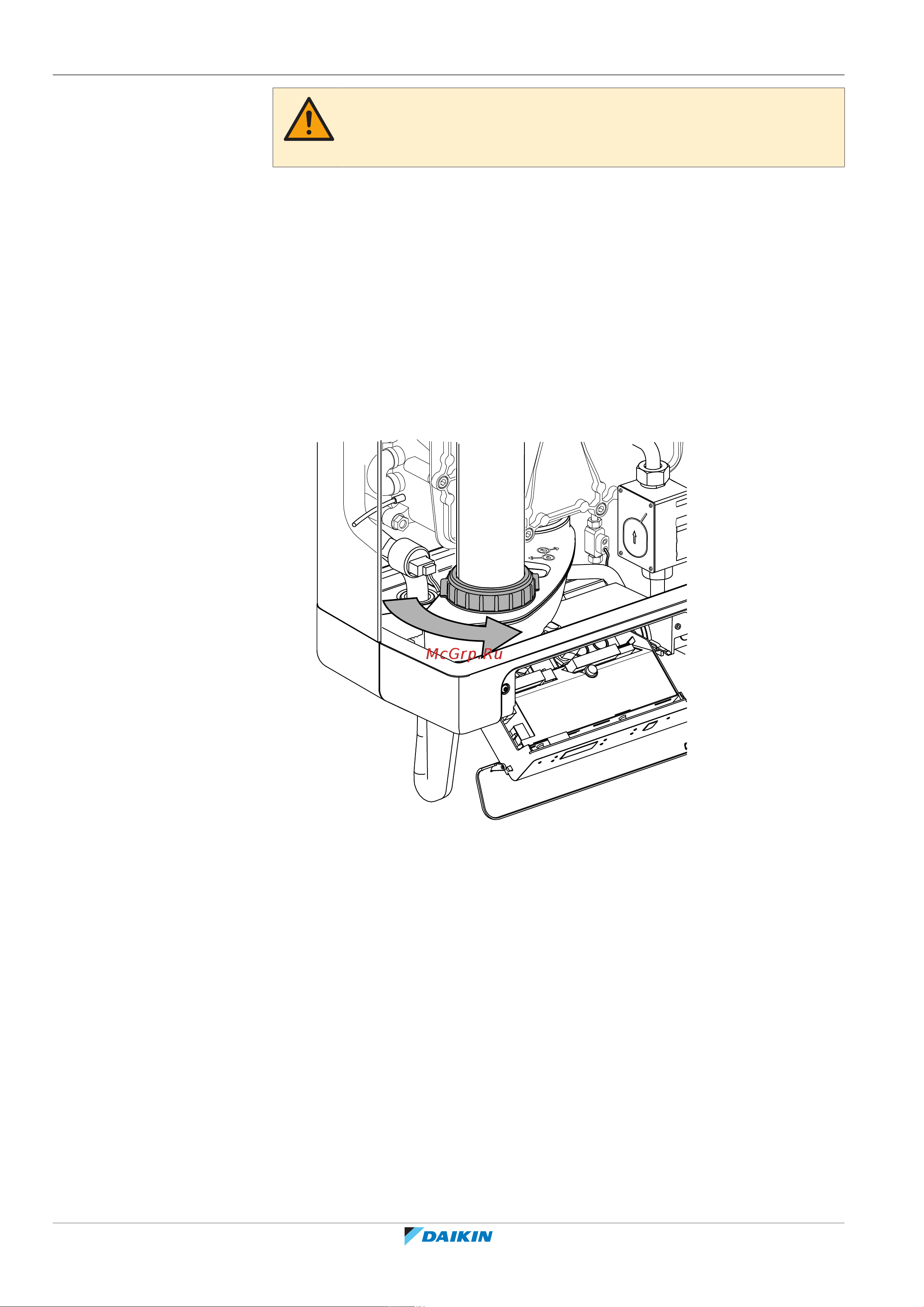

6 Unscrew the coupling nut at the base of the flue pipe by turning

counterclockwise.

7 Slide the flue pipe upwards by turning it clockwise until the bottom of the pipe

is above the condensate drain pan connection.
