8 | Configuration
Installer reference guide
107
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10

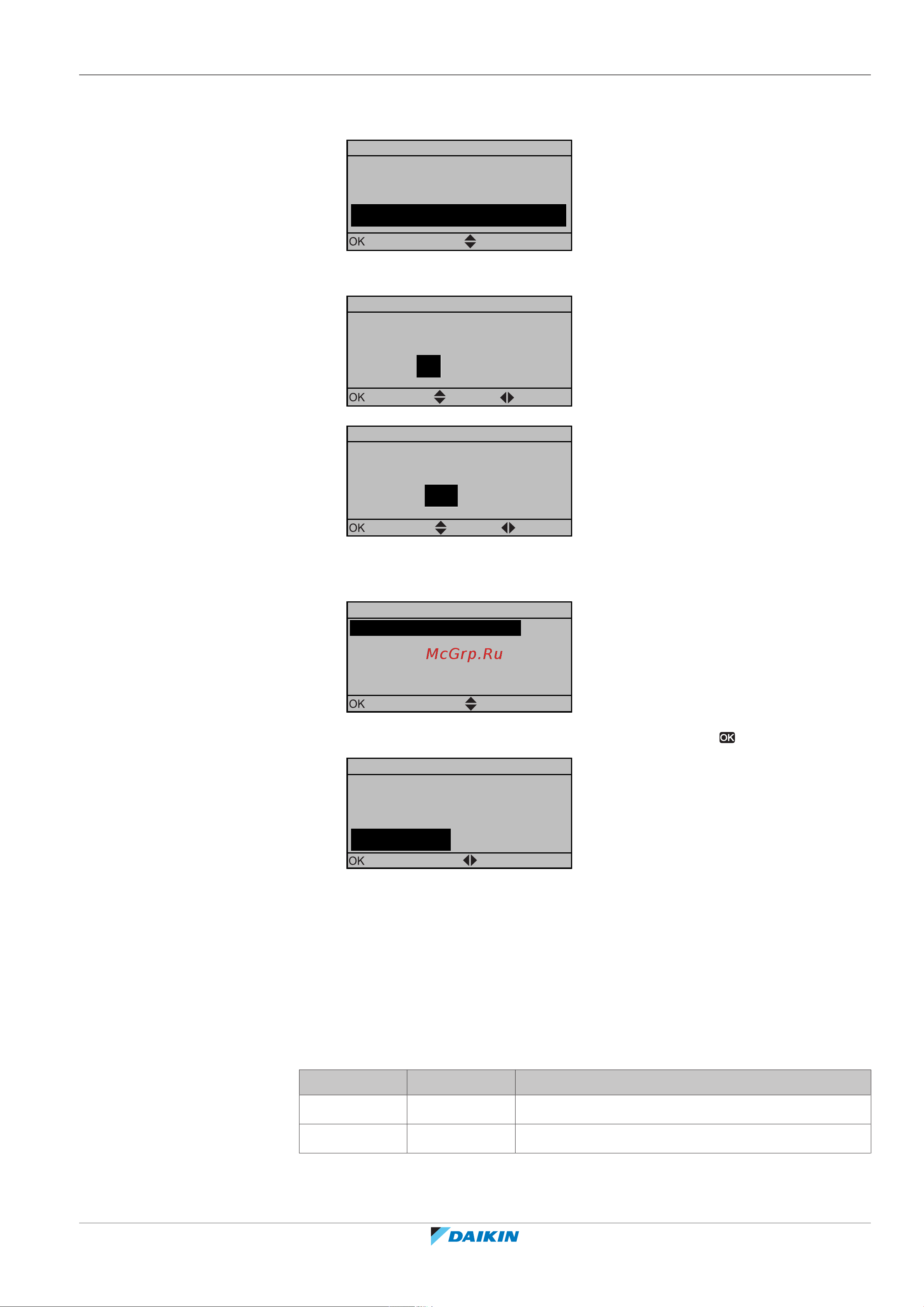

1 At power ON and as long as the system layout was not confirmed yet, select
your preferred language.
Language
Select the desired language
Confirm Adjust
2 Set the current date and time.
1 2013
Jan
Tue
Confirm Adjust Scroll
Date
What is the date today?
00 : 00
What is the current time?
Time
Confirm
Adjust
Scroll
3 Set the system layout settings: Standard, Options, Capacities. For more
details, see "8.1.2Basic configuration"[4107].
A.2 1
Scroll
Select
System layout
Standard
Options
Capacities
Confirm layout
4 After configuration, select Confirm layout and press .
Confirm layout
Please confirm the system
layout. The system will
restart and will be ready for
first startup.
OK
Cancel
Confirm
Adjust
Result: The user interface reinitializes.
5 Proceed with the configuration of the system. When done, confirm the
configuration settings.
Result: The screen shortly turns OFF and Busy is displayed for several seconds.
8.1.2 Basic configuration
Quick wizard: Language / time and date
# Code Description
[A.1] N/A Language
[1] N/A Time and date
