15 | Technical data

Installer reference guide

204

CHYHBH05+08AF + EHYKOMB33A

Daikin Altherma R Hybrid

4P471761-1E – 2020.10

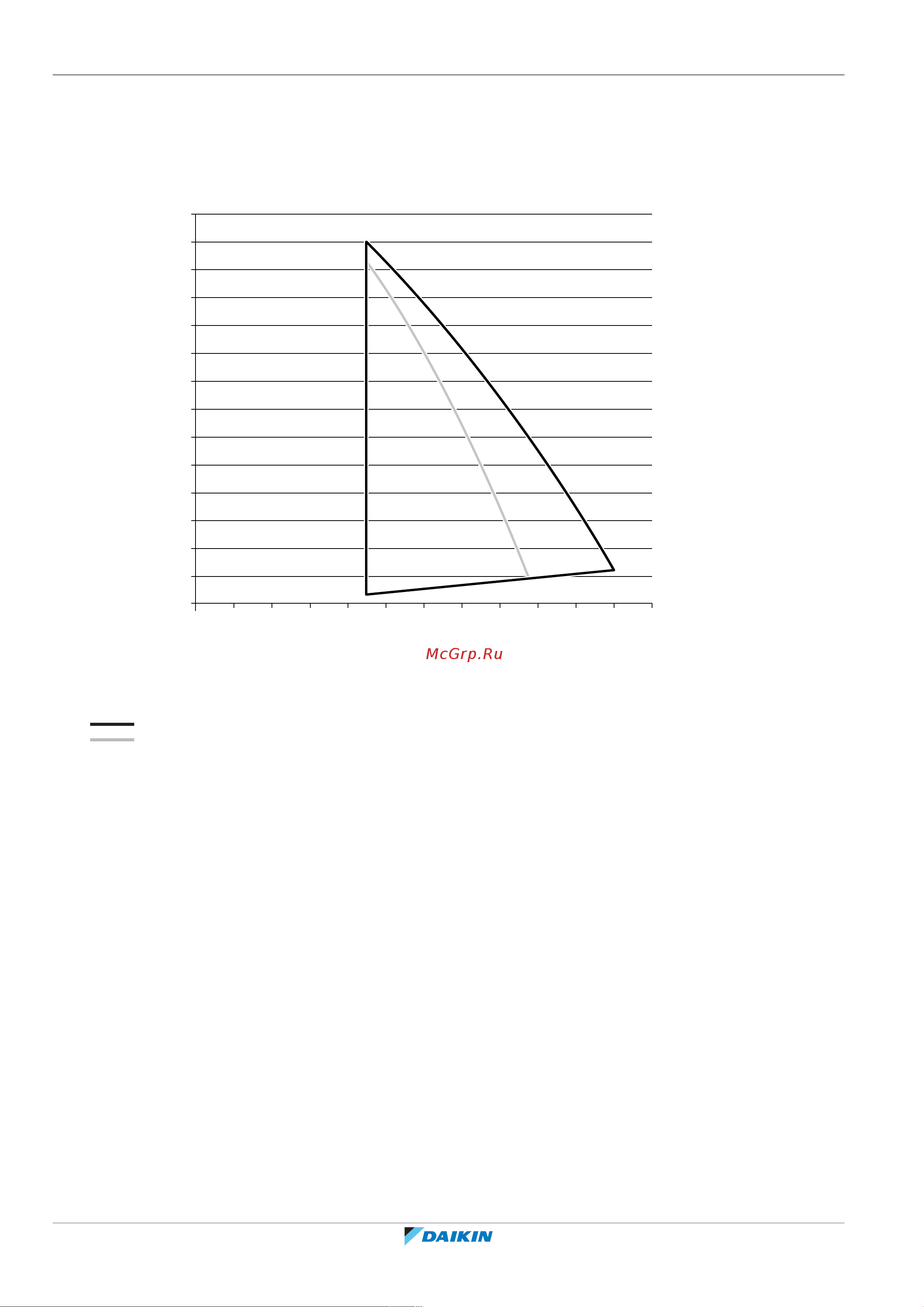

15.7 ESP curve: Indoor unit

Note: A flow error will occur when the minimum water flow rate is not reached.

2 4 6 8 10 12 14 16 18 20 22 24

A (kPa)

B (l/min)

4D109043

A External static pressure

B Water flow rate

C Minimum water flow rate

Boiler bypassed

Boiler not bypassed

Note: Selecting a flow outside the area of operation can cause damage or

malfunction of the unit. Water quality MUST be according to EN directive

EC98/83EC.
