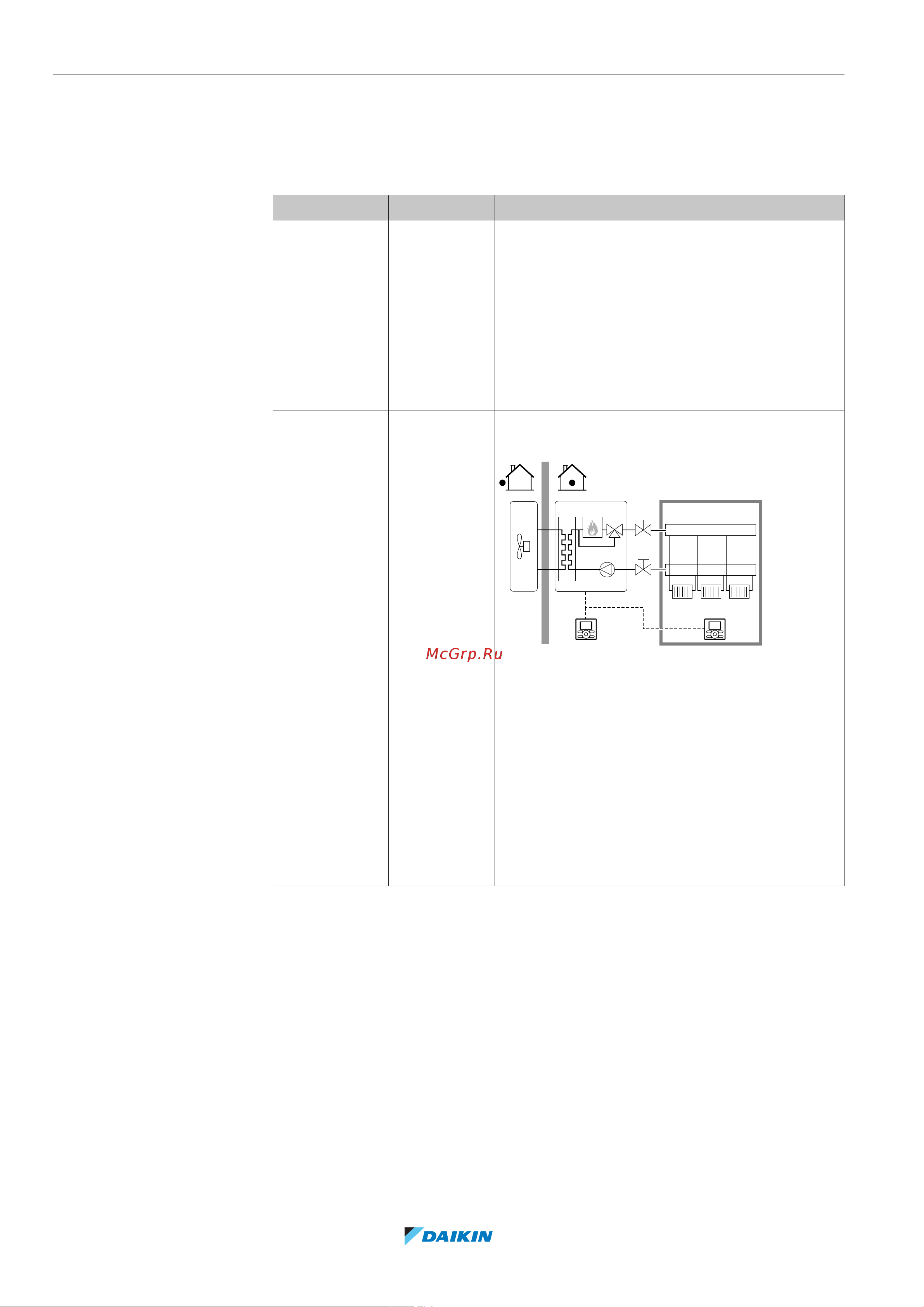

8 | Configuration
Installer reference guide
108
CHYHBH05+08AF + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1E – 2020.10
Quick wizard: Standard
Space heating settings
The system can heat up a space. Depending on the type of application, the space
heating settings must be made accordingly.
# Code Description
[A.2.1.7] [C-07] Unit temperature control:
▪ 0 (LWT control): Not applicable.
▪ 1 (Ext RT control): Unit operation is
decided by the external thermostat or
equivalent (e.g. heat pump convector).
▪ 2 (RT control)(default): Unit operation is
decided based on the ambient temperature of
the user interface.
[A.2.1.B] N/A Only if there are 2user interfaces (1 installed in
the room, 1 installed at the indoor unit):
a
b
▪ a: At unit
▪ b: In room as room thermostat
User interface location:
▪ At unit: this user interface is used to control
the unit. The other user interface is
automatically set to In room.
▪ In room (default): this user interface acts as
room thermostat. The other user interface is
automatically set to At unit
