7 | Installation

Installer reference guide

CHYHBH05+08AF + EHYKOMB33A

Daikin Altherma R Hybrid

4P471761-1E – 2020.10

Typical workflow

Mounting the indoor unit typically consists of the following stages:

1 Installing the indoor unit.

7.3.2 Precautions when mounting the indoor unit

INFORMATION

Also read the precautions and requirements in the following chapters:

▪ General safety precautions

▪ Preparation

7.3.3 To install the indoor unit

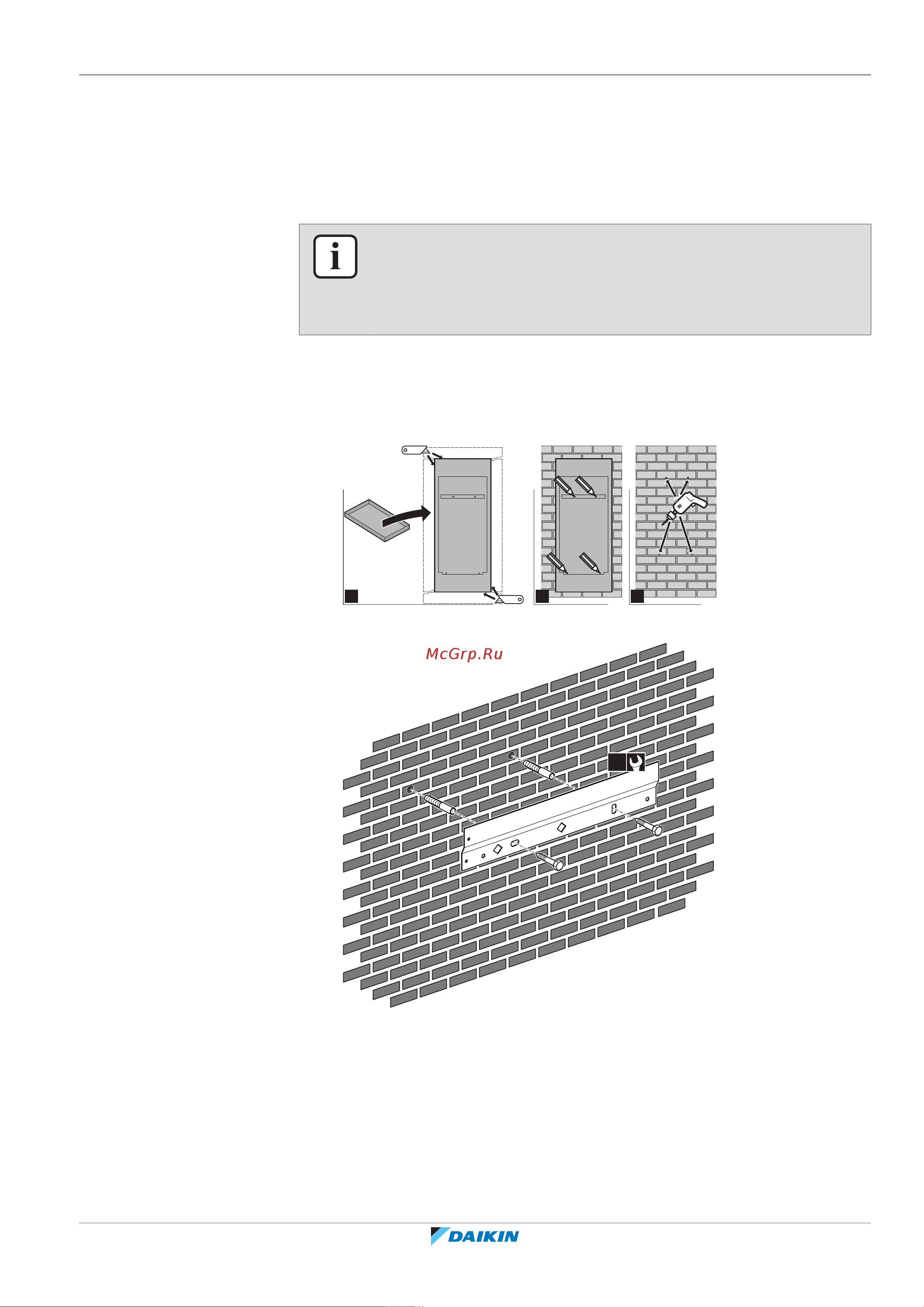

1 Put the installation pattern (see box) on the wall and follow the steps as

shown below.

21 3

2 Fix the wall bracket to the wall with 2 M8 bolts.

2×

3 Lift the unit.
