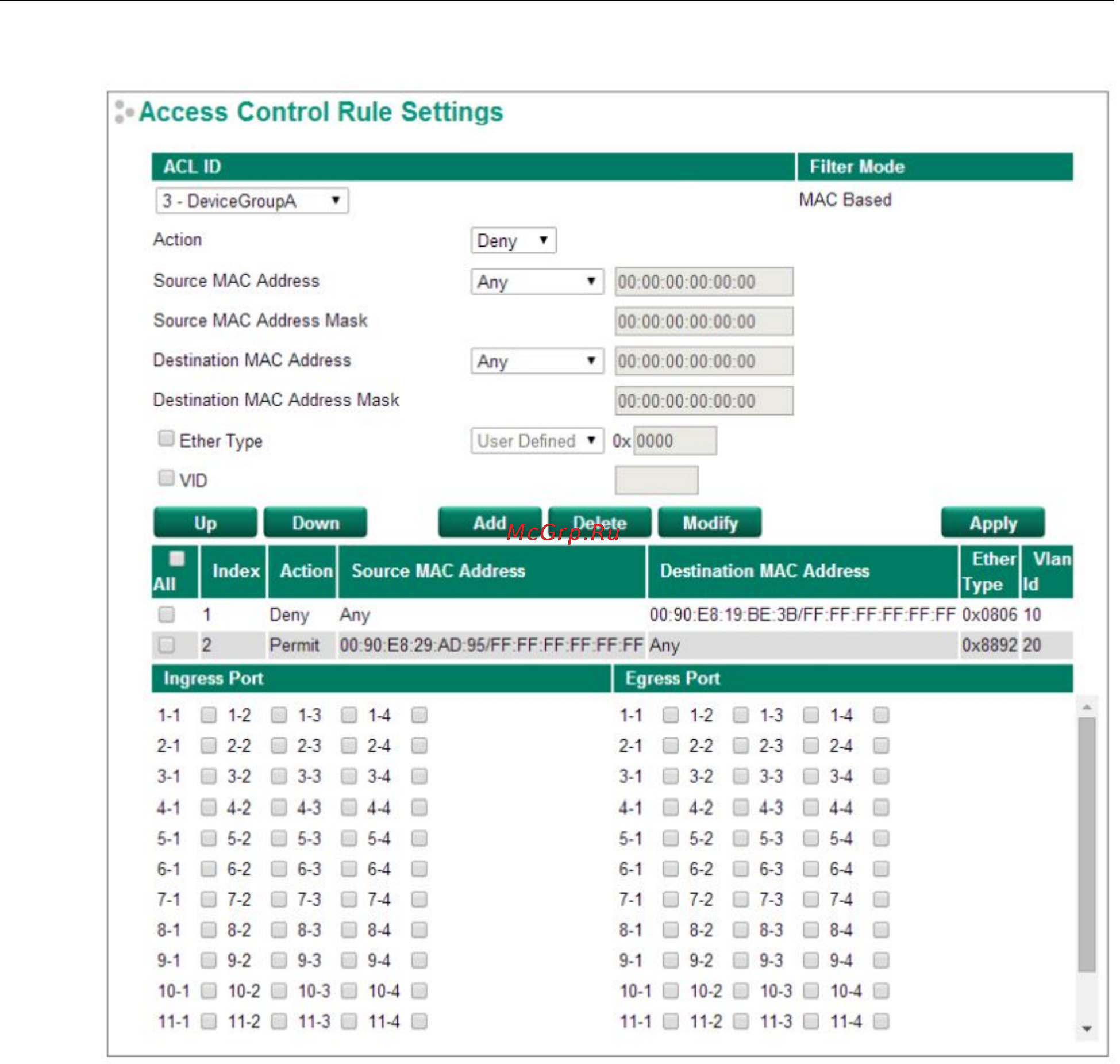

MAC Based (Layer 3 Device)

• Action: Whether to deny or permit access if the rule criterion is met.

• Source (Destination) MAC Address / MAC Address Mask: Defines the MAC address rule. By using the

mask, you can assign specific MAC address ranges to filter. It allows checking the source or destination of

the packet. Choose Any if you do not need to use this criterion.

• Ethernet Type: Select the type of Ethernet protocol to filter. Options are IPv4, ARP, RARP, IPv6, IEE802.3,

PROFIENT, LLDP, and IEEE1588.

• VLAN ID: Enter a VLAN ID you would like to filter by.

Once ready, click the Add button to add the rule to the list and set up the ingress/egress ports, and then click

Apply to activate the settings.
