Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-44
Name The VLAN name can only include these characters,
a-z/A-Z/0-9/-/_/
Null

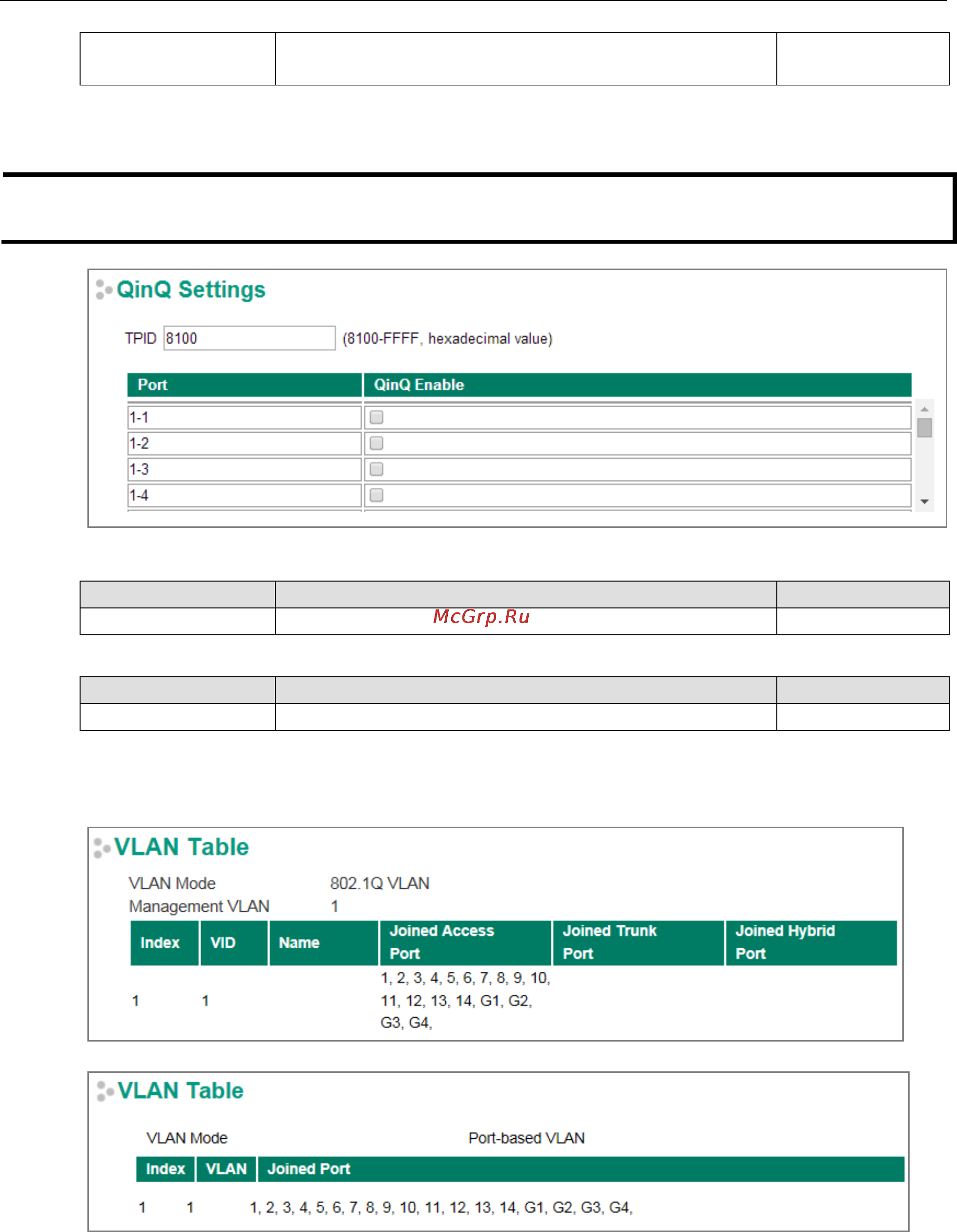

QinQ Settings
NOTE
Moxa
’s layer 3 switches support the IEEE 802.1ad QinQ function, which allows users to tag double VLAN
headers into a single Ethernet frame
.
TPID
Setting Description Factory Default
8100 to FFFF Assign the TPID of the second VLAN tag 8100
QinQ Enable
Setting Description Factory Default
Enable/Disable Enable VLAN QinQ function Disable
VLAN Table
Use the 802.1Q VLAN table to review the VLAN groups that were created, VLAN Name, Joined Access Ports,
Trunk Ports, and Hybrid Ports, and use the Port-based VLAN table to review the VLAN groups and
Joined Ports.
