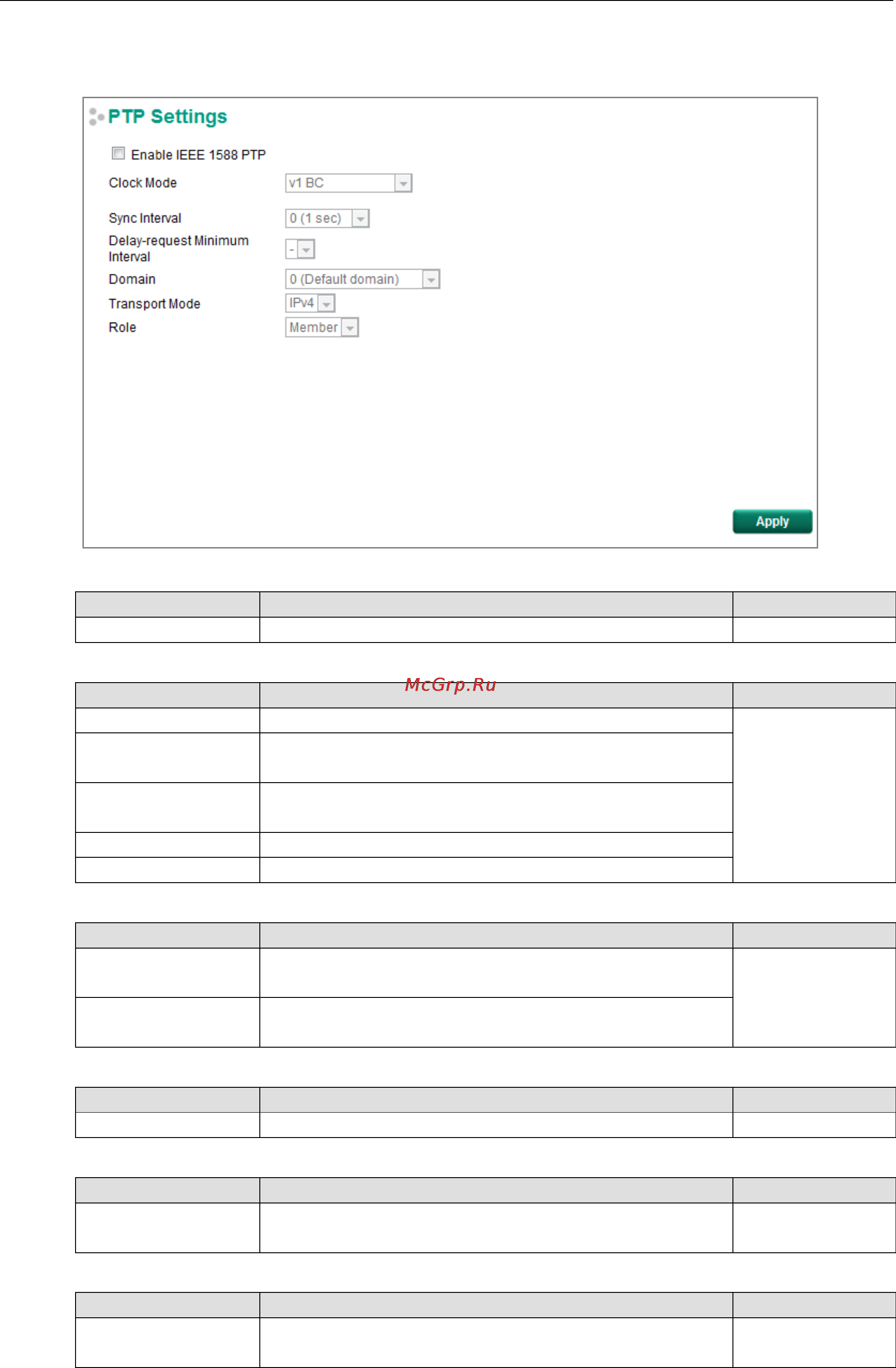

PTP Settings

Operation

Setting Description Factory Default

Enable IEEE 1588 PTP Globally disables or enables IEEE 1588 operation. Disabled

Clock Mode (sets the switch’s clock mode)

Setting Description Factory Default

v1 BC Operates as an IEEE 1588 v1 boundary clock. v1 BC

v2 E2E 2-step TC Operates as an edge-to-edge IEEE 1588 v2 transparent clock

with 2-step method.

v2 P2P 2-step TC Operates as a peer-to-peer IEEE 1588 v2 transparent clock

with 2-step method.

v2 E2E BC Operates as an edge-to-edge IEEE 1588 v2 boundary clock

v2 P2P BC Operates as a peer-to-peer IEEE 1588 v2 boundary clock

SyncInterval (sets the synchronization message time interval)

Setting Description Factory Default

0, 1, 2, 3, or 4 0 (1 s), 1 (2 s), 2 (4 s), 3 (8 s), or 4 (16 s). Supported by

IEEE

1588 V1.

-3, -2, -1, 0, or 1 -3 (128 ms), -2 (256 ms), -1 (512 ms), 0 (1 s), or 1 (2 s).

Supported in IEEE 1588 V2.

Delay-request Minimum Interval

Setting Description Factory Default

0, 1, 2, 3, 4, or 5 Minimum delay request message interval 0 (1 sec.)

Domain

Setting Description Factory Default

_DFLT (0), _ALT(1),

_ALT(2), or _ALT(3)

Subdomain name (IEEE 1588-2002) or the domain Number

(IEEE 1588-2008) fields in PTP messages

0(default domain)

Transport mode

Setting Description Factory Default

IPv4 or 802.3/Ethernet

IEEE 1588 PTP V1 supports IPv4 only

IEEE 1588 PTP V2 supports both IPv4 and IPv6.

IPv4
