Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-36
Item Description
Select high power output When detecting an unknown classification, the system suggests selecting
High Power output.
Raise the external power
supply voltage to greater than
46 VDC
When the external supply voltage is detected at under 46 V, the system
suggests raising the voltage.
Enable PoE function for
detection
The system suggests enabling the PoE function.

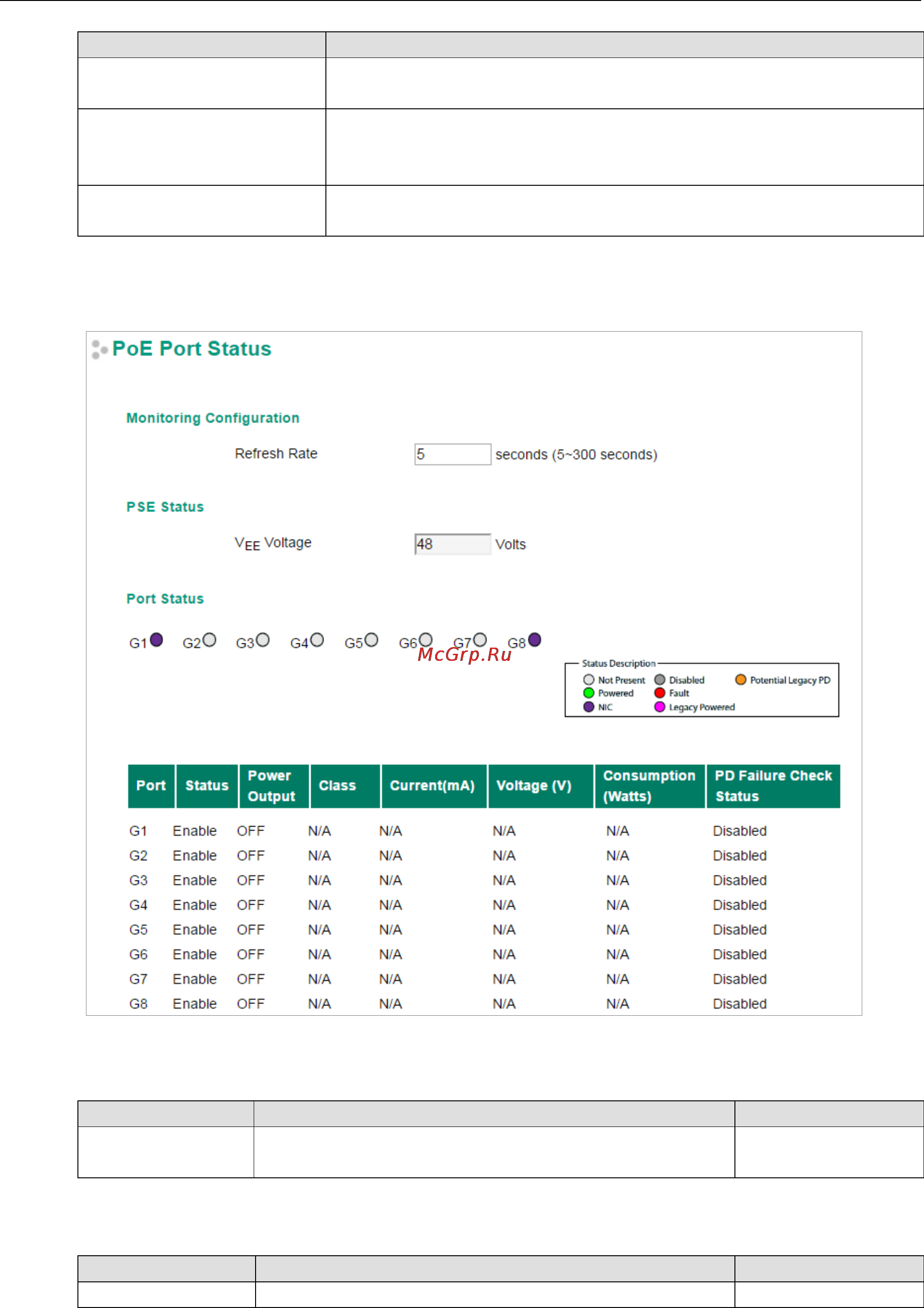

PoE Port Status
Monitoring Configuration
Refresh Rate
Setting Description Factory Default
5 to 300 The period of time for the system to refresh the PoE Port
Status (in seconds)
5
PSE Status
V
EE
Voltage
Setting Description Factory Default
Read-only The V
EE
voltage supplied by the PSE. None
