Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started
2-8
Disabling Telnet and Browser Access
If you are connecting the Moxa switch to a public network but do not intend to manage it over the network, we
suggest disabling both the Telnet and web consoles. This is done from the USB console by navigating to

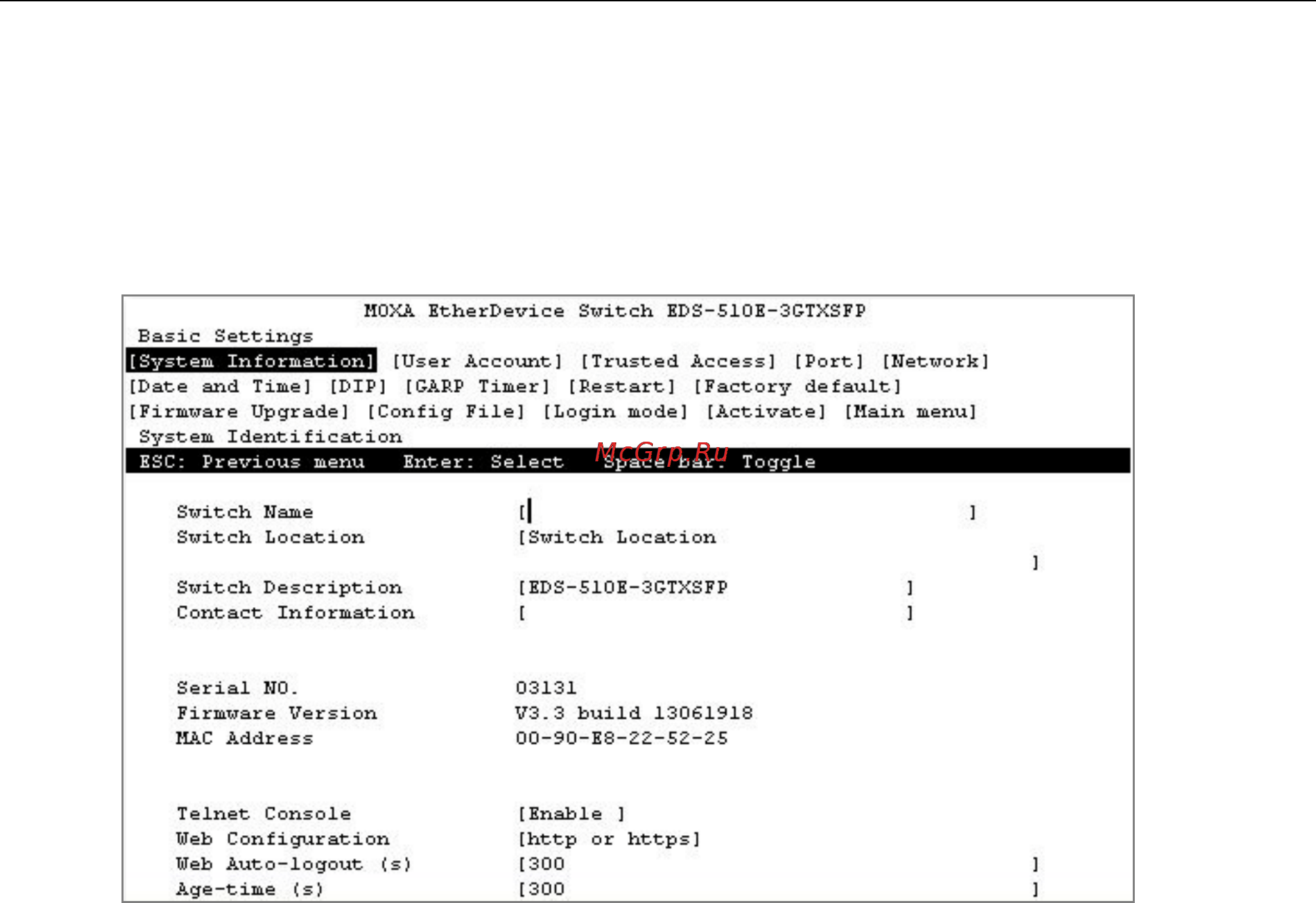

System Identification under Basic Settings
System Information. Disable or enable the Telnet
Console and Web Configuration as shown below:
