Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-79
Violation Port Disable (only active for MAC Address Sticky)
Setting Description Factory Default
Disable When the port receives a packet with an unlearned MAC
address, the packet will be discarded.
Disable
Enable When the port receives a packet with an unlearned MAC
address, the port will be disabled.

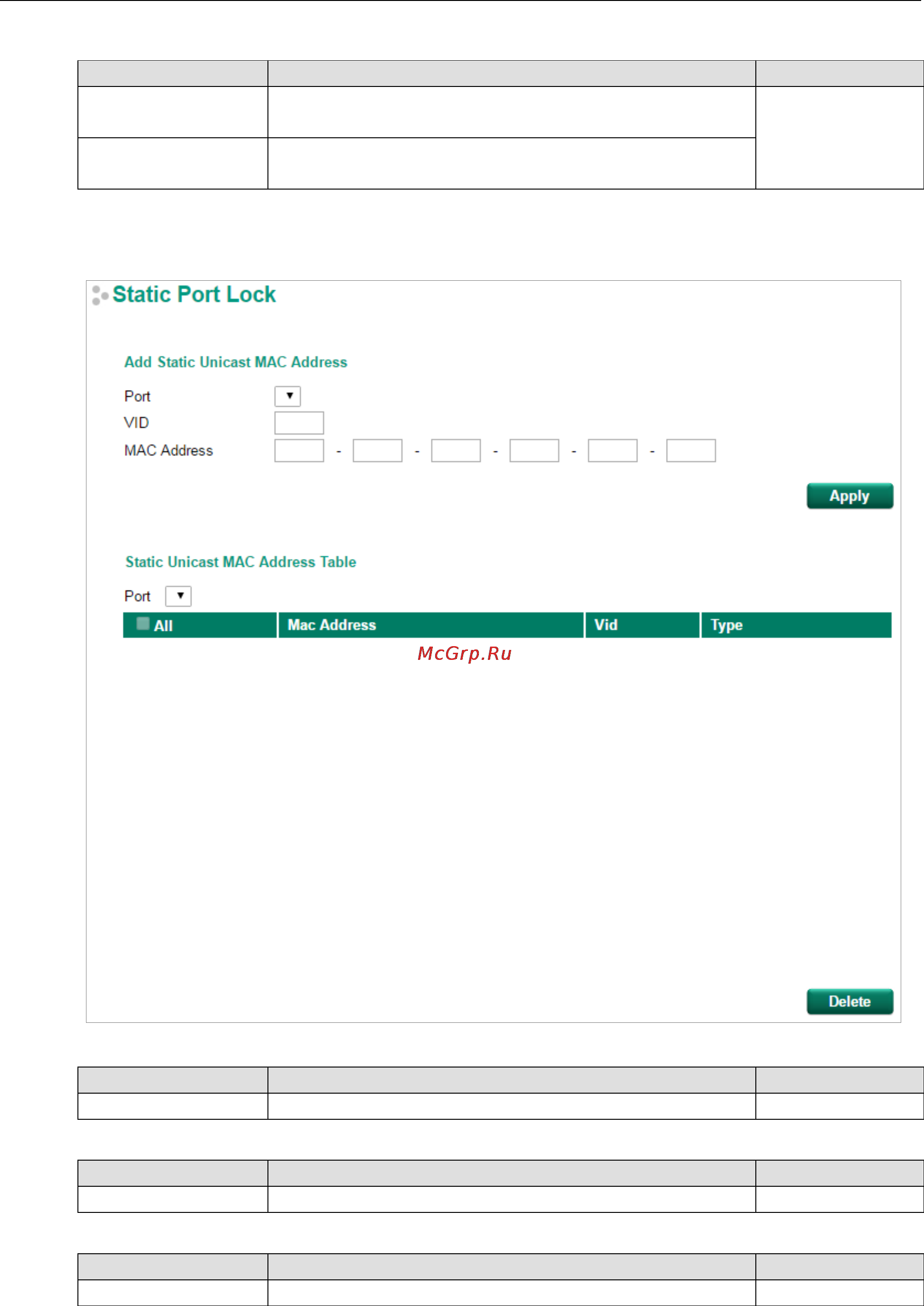

Static Port Lock
Port Number
Setting Description Factory Default
Port Number Associates the static address to a dedicated port None
VID
Setting Description Factory Default
VLAN ID Associates the static address to a dedicated VLAN on the port None
MAC Address
Setting Description Factory Default
MAC Address Adds the static unicast MAC address into the address table None
