Moxa EDS-518E-4GTXSFP-T [90/116] Radius server settings
![Moxa EDS-518E-4GTXSFP-T [90/116] Radius server settings](/views2/1195651/page90/bg5a.png)
Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-77

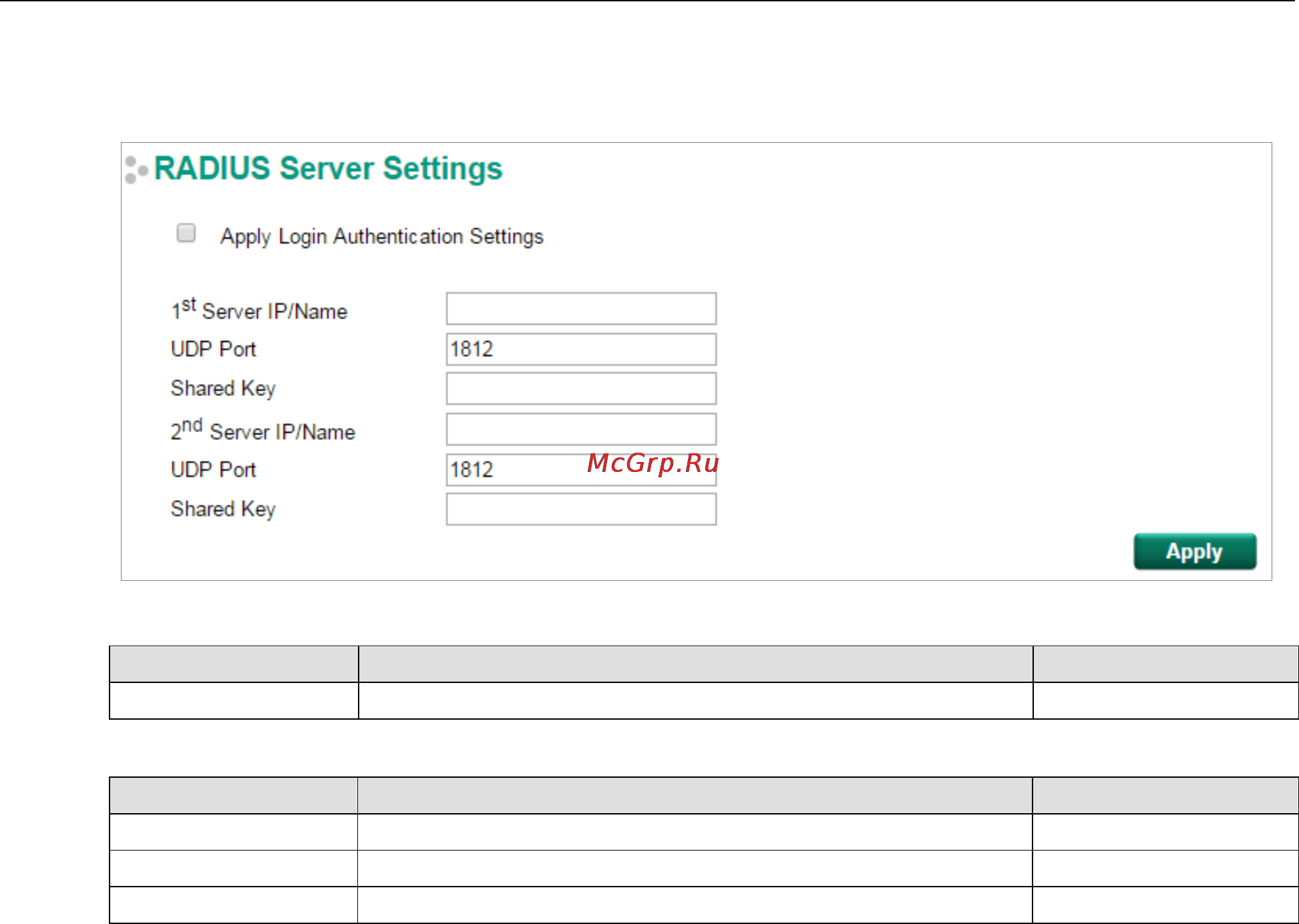

RADIUS Server Settings
Apply Login Authentication Setting
Setting Description Factory Default
Select/Deselect Enables using the same setting as Auth Server. Deselect
Server Setting
Setting Description Factory Default
Server IP/Name Specifies the IP/name of the server None
Server Port Specifies the port of the server 1812
Server Shared Key Specifies the shared key of the server None
