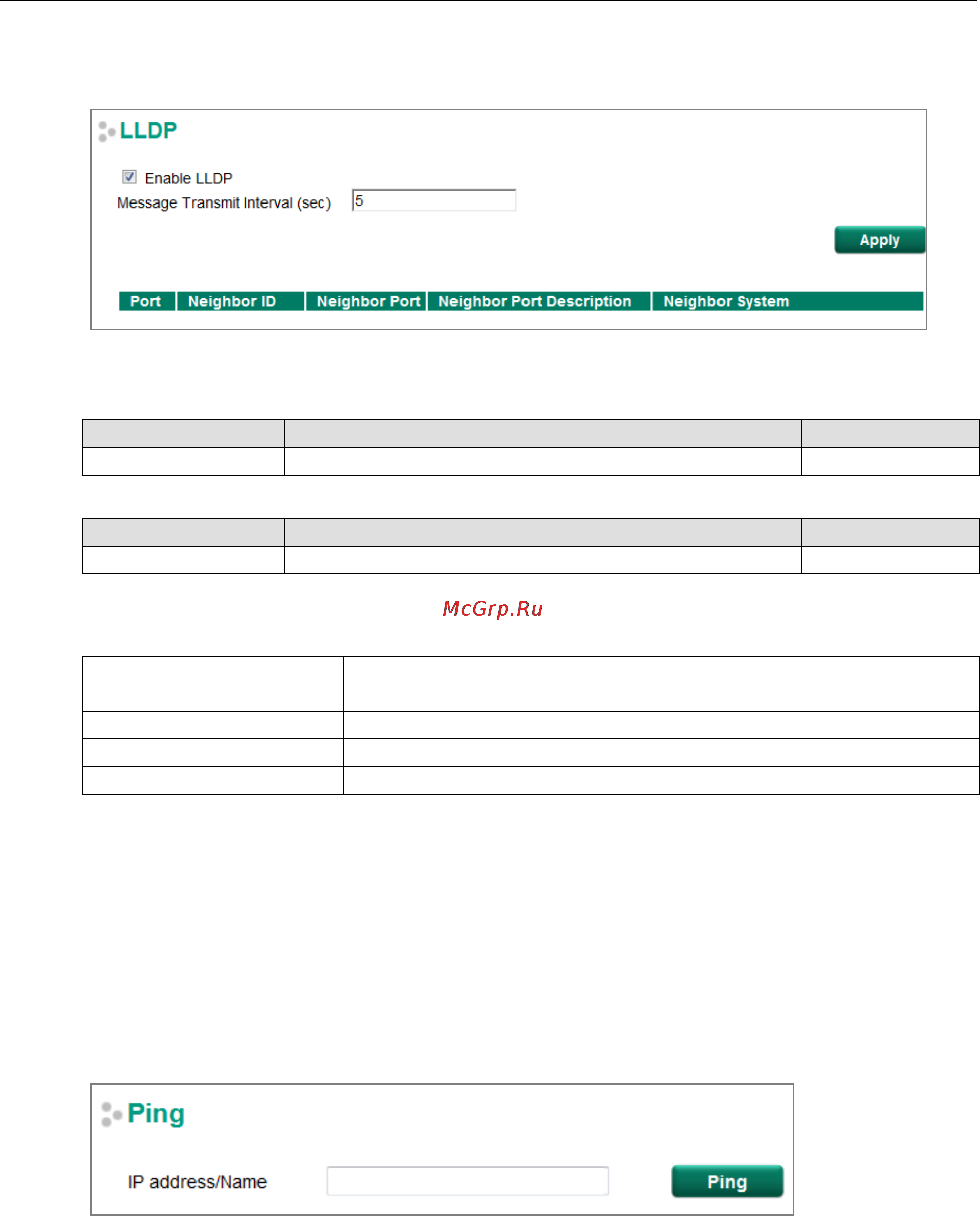

Configuring LLDP Settings

General Settings

LLDP

Setting Description Factory Default

Enable or Disable Enables or disables the LLDP function. Enable

Message Transmit Interval

Setting Description Factory Default

5 to 32768 sec. Sets the transmit interval of LLDP messages, in seconds. 5 (seconds)

LLDP Table

The LLDP Table displays the following information:

Port The port number that connects to the neighbor device.

Neighbor ID A unique entity (typically the MAC address) that identifies a neighbor device.

Neighbor Port The port number of the neighbor device.

Neighbor Port Description A textual description of the neighbor device’s interface.

Neighbor System Hostname of the neighbor device.

Ping

The Ping function uses the ping command to give users a simple but powerful tool for troubleshooting network

problems. The function’s most unique feature is that even though the ping command is entered from the user’s

PC keyboard, the actual ping command originates from the Moxa switch itself. In this way, the user can

essentially sit on top of the Moxa switch and send ping commands out through its ports.

To use the Ping function, type in the desired IP address, and then press Enter from the Console utility, or click

Ping when using the Web Browser interface.

Port Mirroring

The Port Mirroring function can be used to monitor data being transmitted through a specific port. This is

done by setting up another port (the mirror port) to receive the same data being transmitted from, or both to

and from, the port under observation. Using a mirror port allows the network administrator to sniff the

observed port to keep tabs on network activity.
