Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-21
NOTE
The following events will be recorded into the Moxa switch’s Event Log table, and will then be
sent to the
specified Syslog Server:
•
Cold start
•
Warm start
•
Configuration change activated
•
Power 1 or 2 transition: Off to On or On to Off
•
Authentication fail
•
Password change
•
Redundancy protocol/topology change
•
Master setting mismatch
•
ABC-02 status
•
Web log in
•
Rate Limit on/off(Disable port)
•
Port looping
•
Port traffic overload
•
dot1x Auth Fail
•
Port link off/on
Relay Warning Status

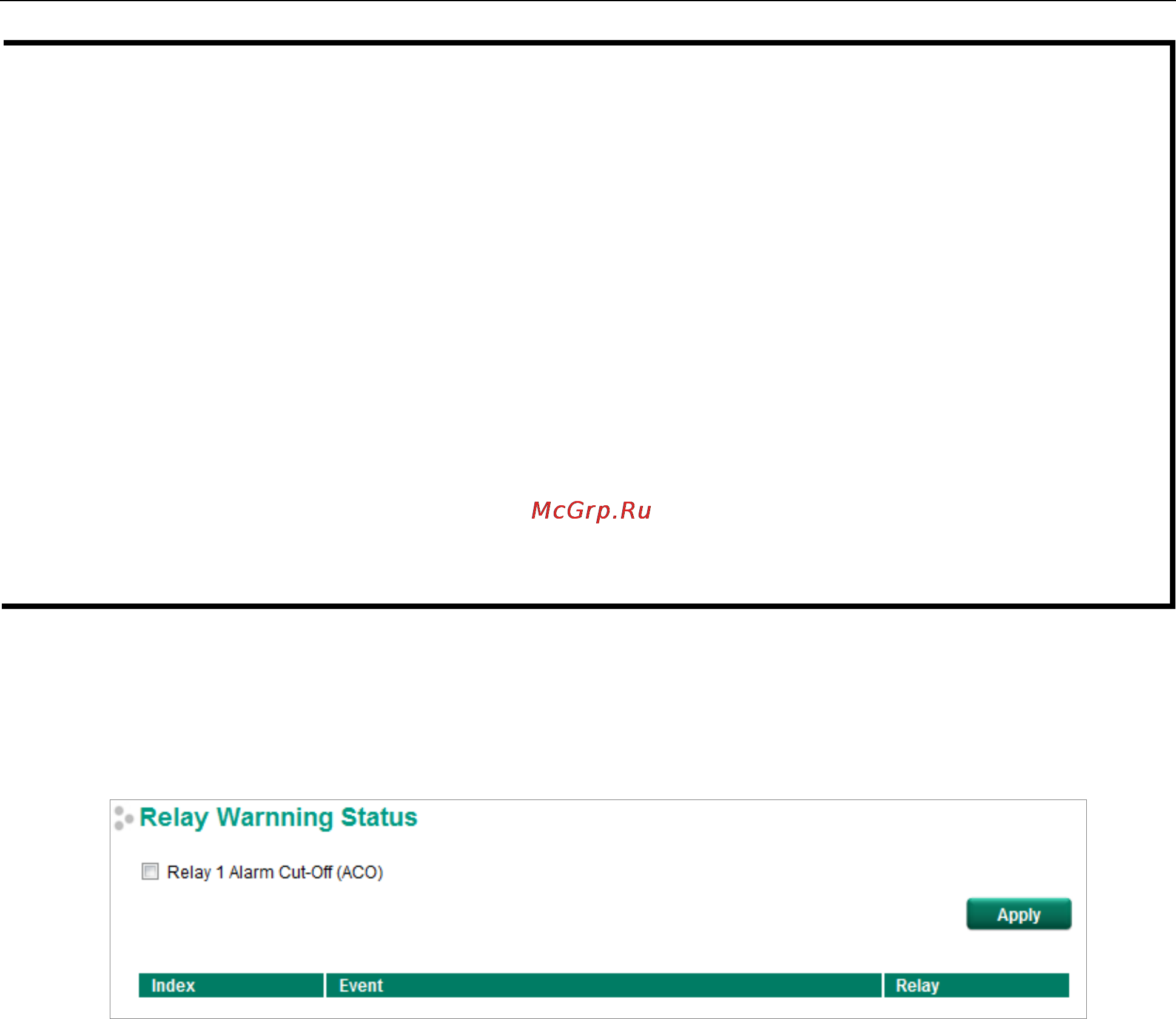

When a relay warning is triggered by either the system or port events, the administrator can turn off the
hardware warning buzzer by clicking the Apply button. The event will still be recorded in the event list.
