Moxa EDS-518E-4GTXSFP-T [72/116] Priority mapping type 1

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions

3-59

TOS/DSCP Inspection

Setting Description Factory Default

Enable/Disable Enables or disables the Moxa switch for inspecting Type of

Server (TOS) bits in the IPV4 frame to determine the priority of

each frame.

Enable

COS Inspection

Setting Description Factory Default

Enable/Disable Enables or disables the Moxa

switch for inspecting 802.1p COS

tags in the MAC frame to determine the priority of each frame.

Enable

Priority

Setting Description Factory Default

0 to 7 The port priority has 8 priority queues: from 0 (lowest) to 7

(highest)

NOTE

The priority of

an ingress frame is determined in the following order:

1. ToS/DSCP Inspection

2. CoS Inspection

Priority

NOTE

The designer can enable these classifications individually or in combination. For instance, if a “hot” higher

priority port is required for a network design,

TOS/DSCP Inspection and Cos Inspection

can be disabled.

This setting leaves only port default priority active, which results in all ingress frames being assigned the same

priority on that port.

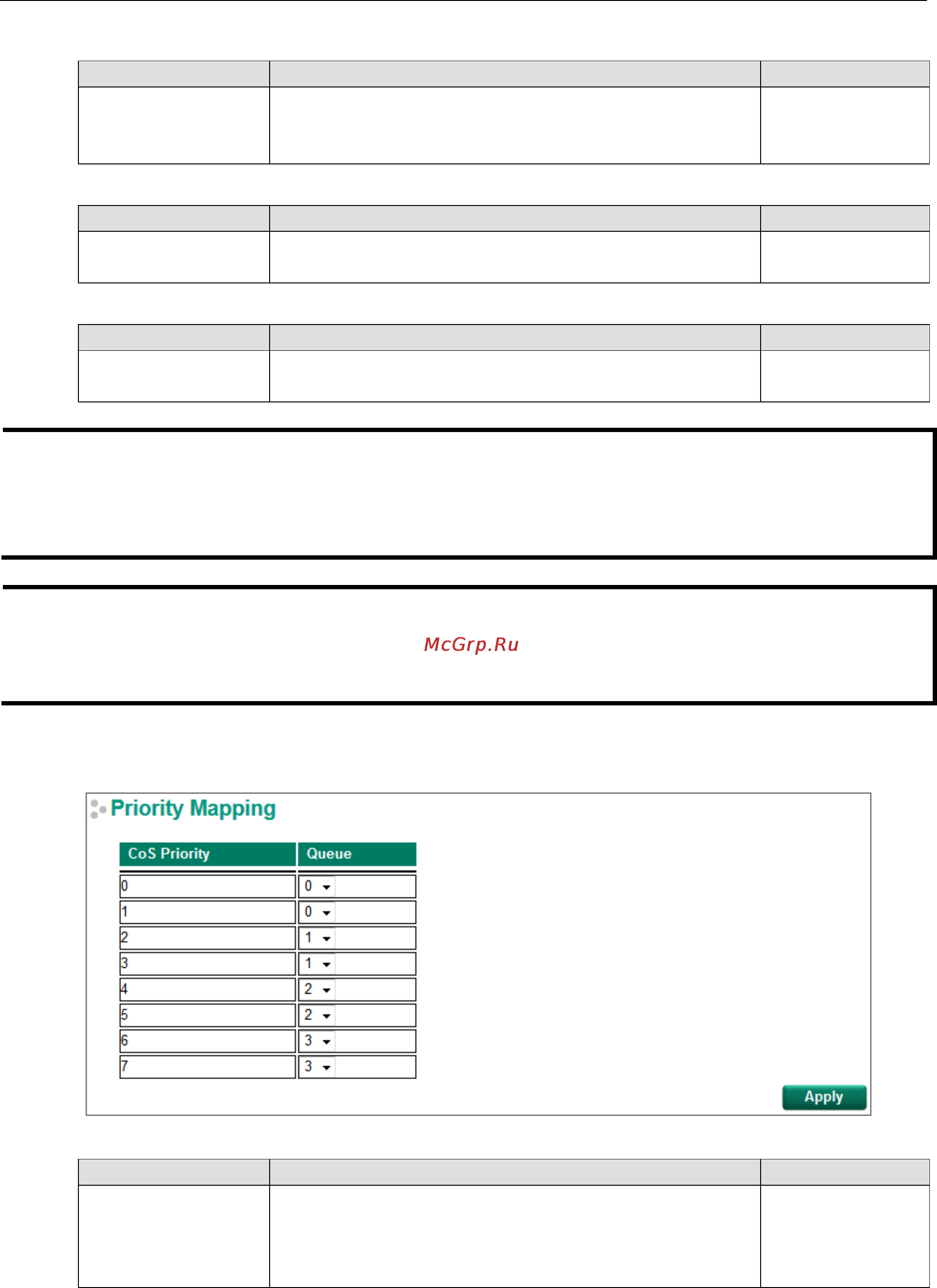

Priority Mapping (Type 1)

CoS Priority and Queues

Setting Description Factory Default

0 to 3 Maps different CoS values to 4 different egress queues. CoS 0, 1: 0

CoS 2, 3: 1

CoS 4, 5: 2

CoS 6, 7: 3
