Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-85
IP Based (Layer 3 Device)

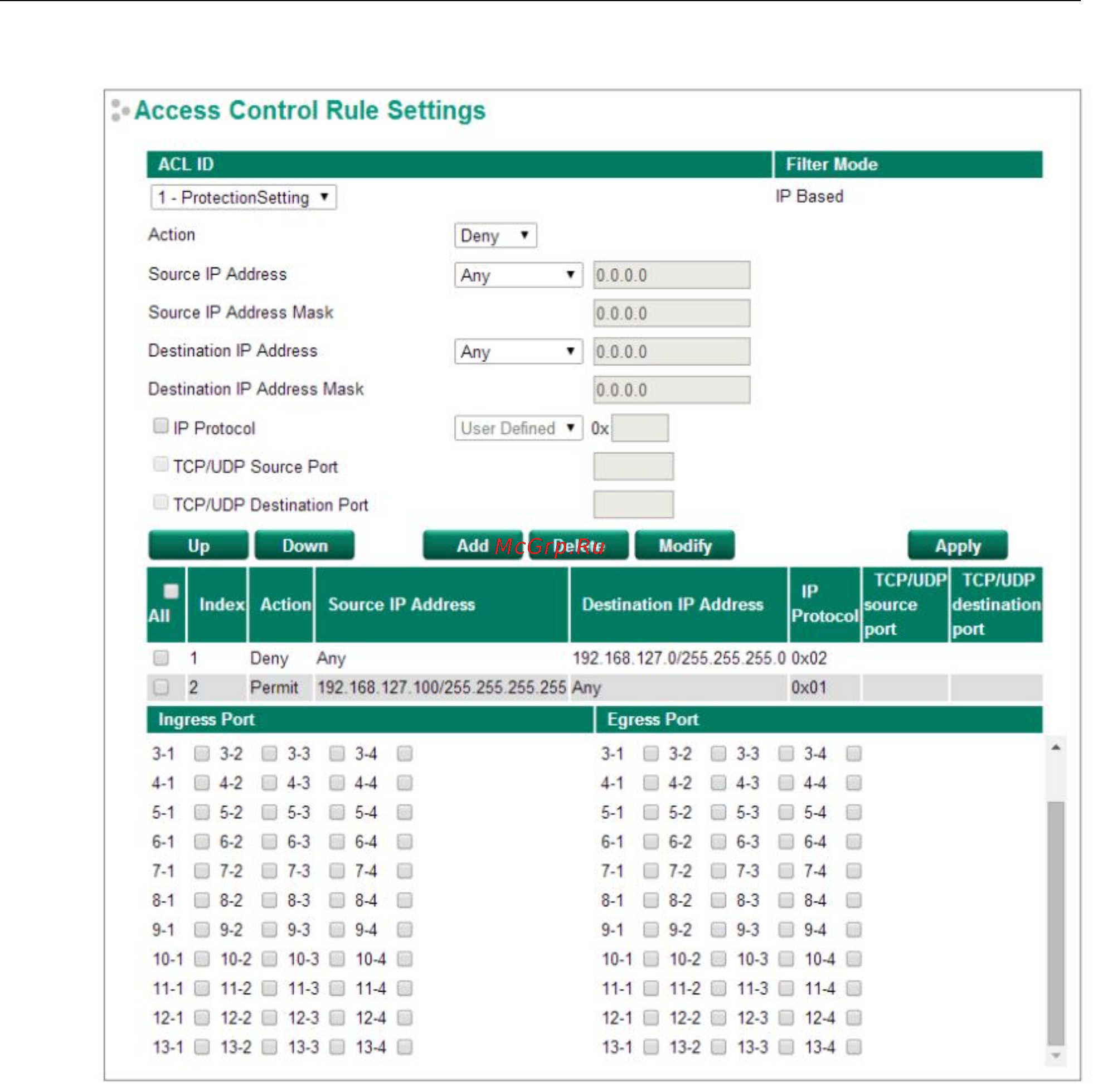

• Action: Whether to deny or permit access if the rule criterion is met.
• Source (Destination) IP Address / IP Address Mask: Defines the IP address rule. By using the mask,
you can assign specific subnet ranges to filter. It allows checking the source or destination of the packet.
Choose Any if you do not need to use this criteria.
• IP Protocol: Select the type of protocols to be filtered. Moxa provides ICMP, IGMP, IP over IP, TCP, and
UDP as options in this field.
• TCP/UDP Source (Destination) Port: If TCP or UDP are selected as the filtering protocol, these fields will
allow you to enter port numbers for filtering.
