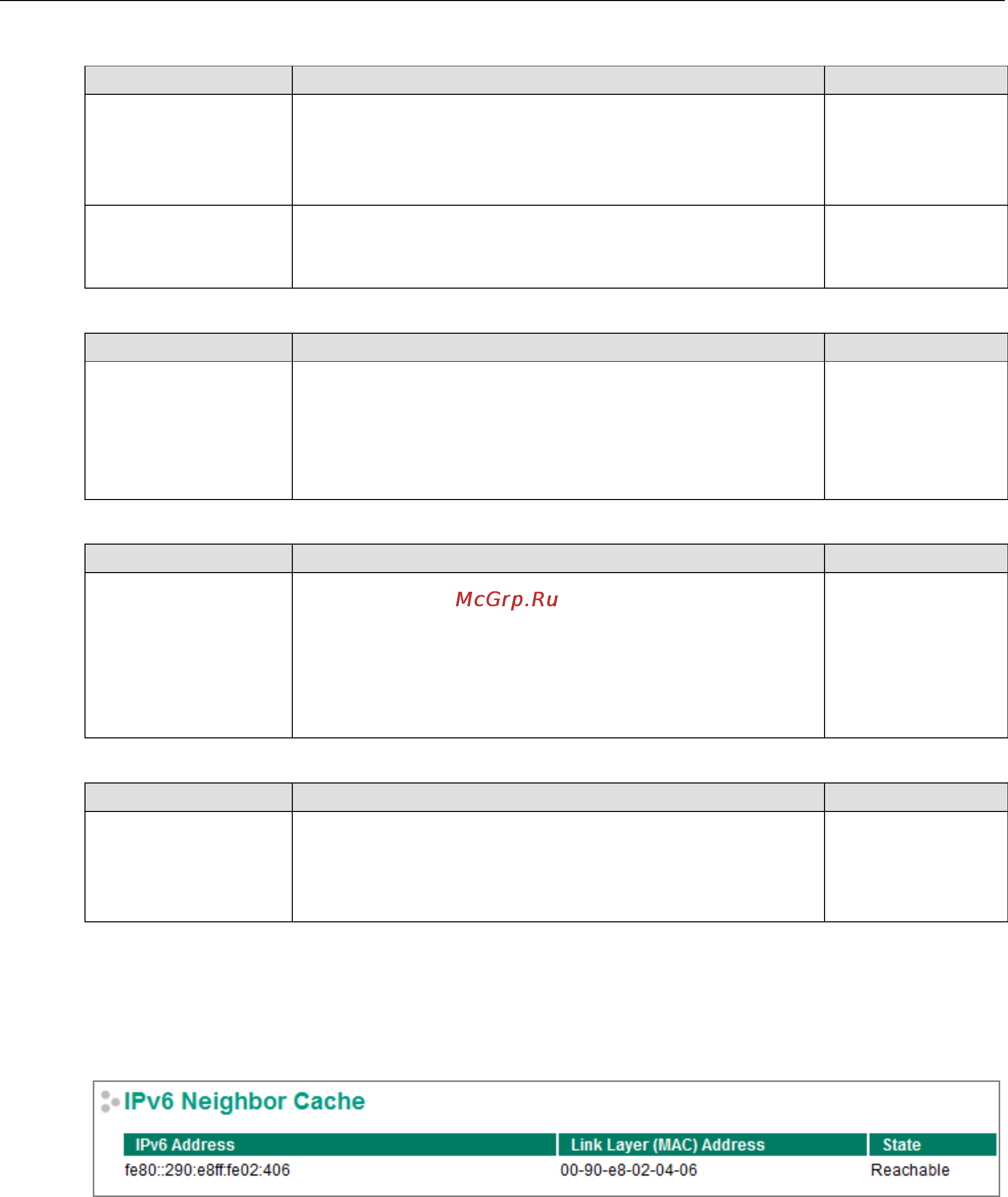

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-8
DNS Server IP Addresses
Setting Description Factory Default
1st DNS Server Specifies the IP address of the DNS server used by your
network. After specifying the DNS server’s IP address, you can
use the Moxa switch’s URL (e.g., www.PT.company.com) to
open the web console instead of entering the IP address.
None
2nd DNS Server Specifies the IP address of the secondary DNS server used by
your network. The Moxa switch will use the secondary DNS
server if the first DNS server fails to connect.
None
IPv6 Global Unicast Address Prefix (Prefix Length: 64 bits) Default Gateway
Setting Description Factory Default
Global Unicast Address
Prefix
The prefix value must be formatted according to the RFC 2373
“IPv6 Addressing Architecture,” using 8 colon-separated 16-
bit
hexadecimal values. One double colon may be used in the
address to
indicate the appropriate number of zeros required to
fill the undefined fields.
None
IPv6 Global Unicast Address
Setting Description Factory Default
None
Displays the IPv6 Global Unicast address. The network portion
of the Global Unicast address can be configured by specifying
the Global Unicast Prefix and using an EUI-64 interface ID in
the low order 64 bits. The host portion of the Global Unicast
address is automatically generated using the modified EUI-64
form of the interface identifier (Switch’s MAC address).
None
IPv6 Link-Local Address
Setting Description Factory Default
None The network portion of the Link-Local address is FE80 and the
host portion of the Link-Local address is automatically
generated using the modified EUI-64 form of the interface
identifier (Switch’s MAC address).
None
IPv6 Neighbor Cache
The IPv6 neighbor cache includes the neighboring node’s IPv6 address, the corresponding Link-Layer address,
and the current state of the entry.
