Moxa EDS-518E-4GTXSFP-T [50/116] Poe system status

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions

3-37

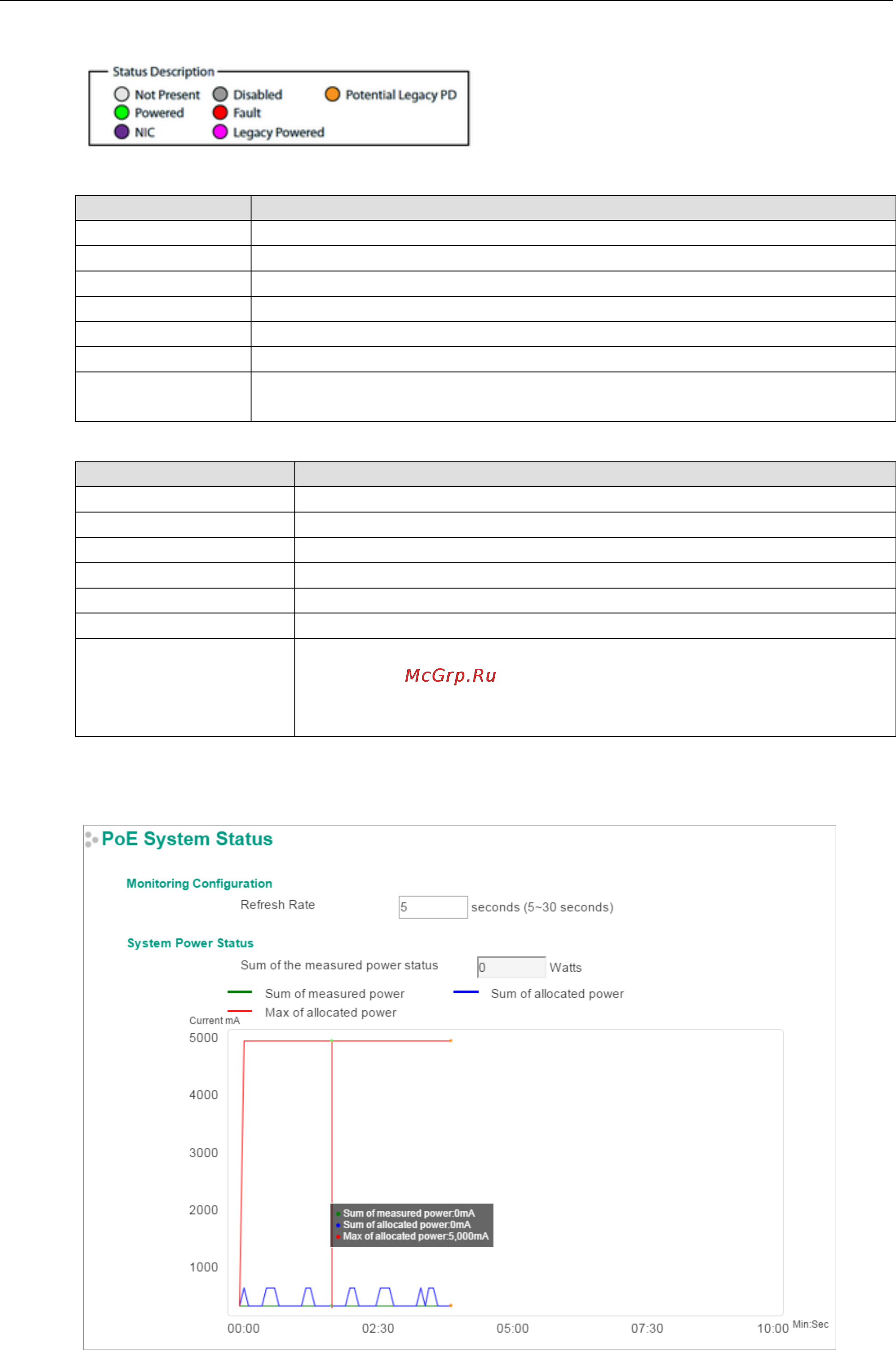

Port Status

Status Description

Item Description

Not Present No connection to the port. PoE power is not being provided.

Powered PoE power is being provided by the PSE.

NIC System has detected a NIC connected to the port. PoE power is not being provided.

Disabled The PoE function of the port is disabled. PoE power is not being provided.

Fault In Force mode; the system has detected an out-of-range PD.

Legacy Powered In Force mode; the system has detected a legacy PD.

Potential Legacy PD In 802.3af/at or High Power mode; the system has detected a potential legacy PD.

PoE

power is not being provided.

Port Description

Item Description

Status Indicates if the PoE function is enabled or disabled.

Power Output Indicates the power output of each PoE port.

Class Indicates the classification of each PoE port.

Current (mA) Indicates the actual current consumed by each PoE port.

Voltage (V) Indicates the actual voltage consumed by each PoE port.

Consumption (Watts) Indicates the actual Power consumed by each PoE port.

PD Failure Check Status Indicates the PD Failure Check status of each PoE port.

Alive: The system receives a response from all pings to the PD.

Not Alive: The system receives no response from pings to the PD.

Disabled: The PD Failure Check function is not activated.

PoE System Status
