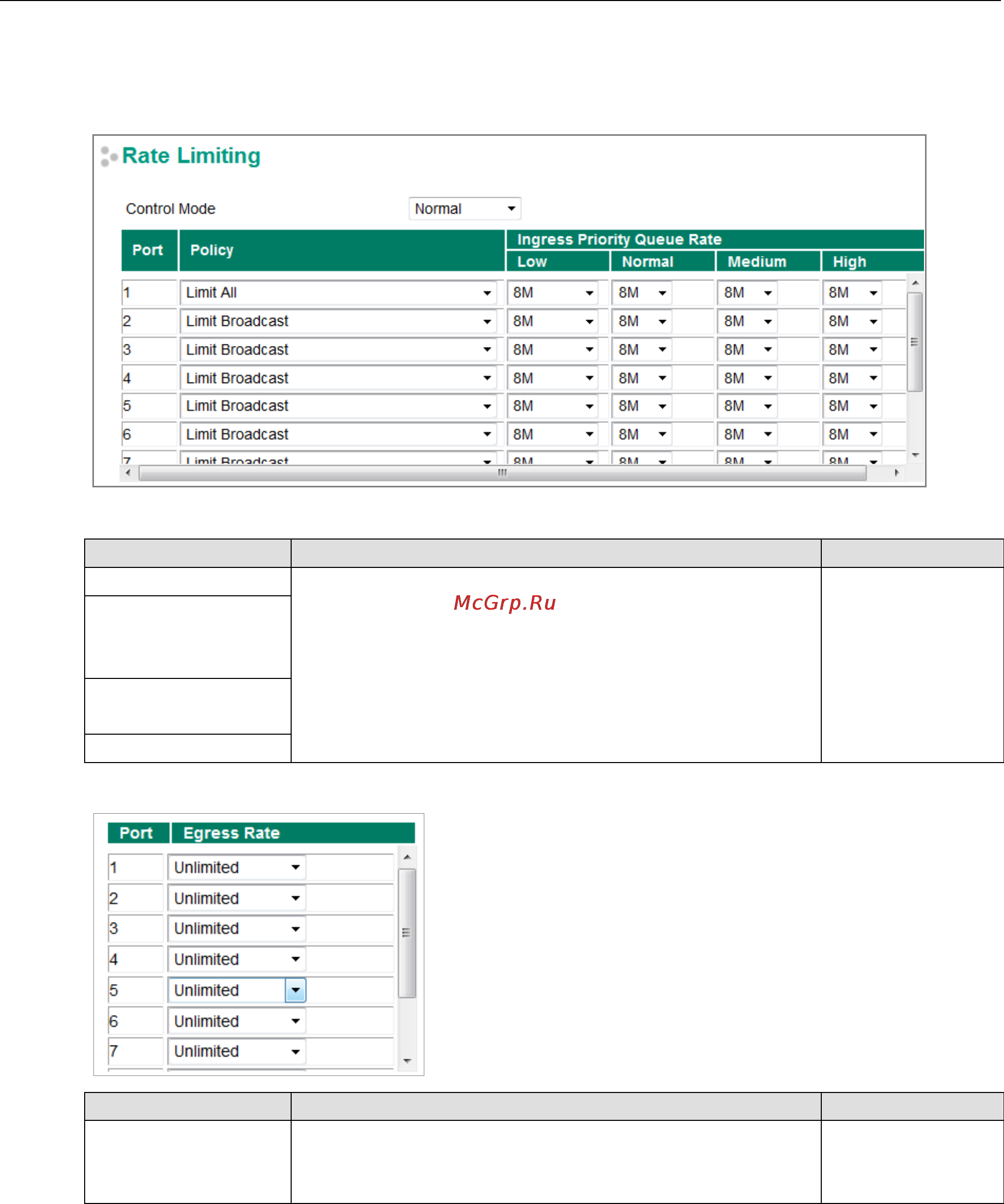

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-62
Rate Limiting: Normal
Ingress Rate Limit
Policy Description Factory Default
Limit All Select the ingress rate limit for different packet types from the
following options: Unlimited, 128K, 256K, 512K, 1M, 2M, 4M,
8M
Limit Broadcast 8M
Limit Broadcast,
Multicast, Flooded
Unicast
Limit Broadcast,
Multicast
Limit Broadcast
Egress Rate Limit
Setting Description Factory Default
Egress rate
(% of max.
throughput)
Select the egress rate limit (% of max. throughput) for all
packets from the following options: Not Limited, 3%, 5%, 10%,
15%, 25%, 35%, 50%, 65%, 85%
Unlimited
