Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions

3-99

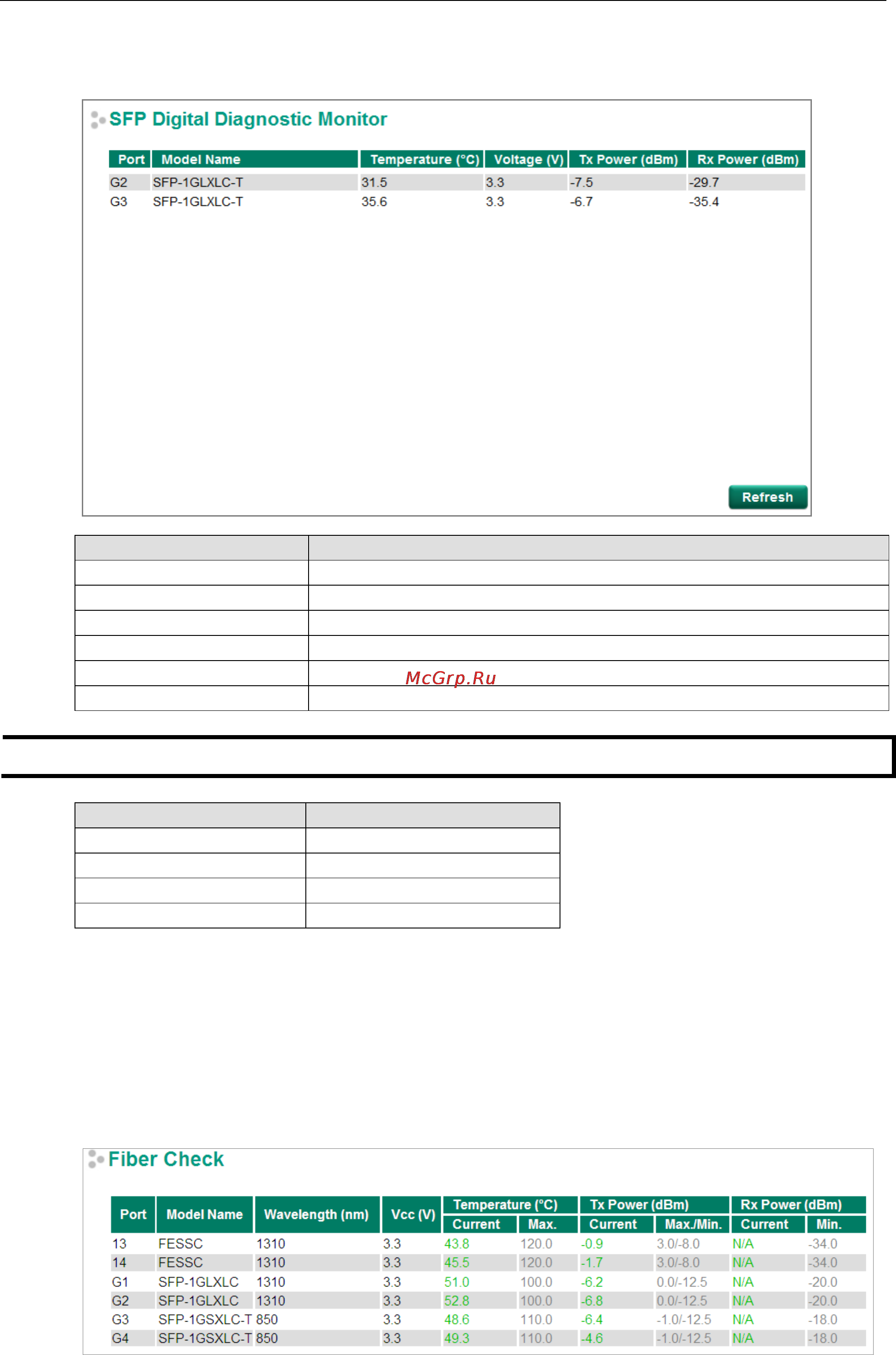

SFP Digital Diagnostic Monitor

Parameter Description

Port Switch port number that the SFP is plugged into

Model Name Moxa SFP model name

Temperature (°C) SFP casing temperature

Voltage (V) Voltage supplied to the SFP

Tx power (dBm) The amount of light being transmitted into the fiber optic cable

Rx power (dBm) The amount of light being received from the fiber optic cable

NOTE

Certain tolerances exist between real data and measured data

Parameters Tolerance

Temperature (°C) ±3°C

Voltage (V) ±0.1 V

Tx power (dBm) ±3 dB

Rx power (dBm) ±3 dB

Fiber Check

Fiber Check is used to diagnose the link status of fiber connectors, including SFP and fixed type (Multi-mode

SC/ST & Single-mode SC) connectors. Monitor the temperature, TX/RX power, and other parameters on fiber

ports to determine if the ports are working properly. Enable the trap, email warning, and/or relay warning

functions on the System Event Settings page to receive an alarm or relay if one of the fiber ports exceeds the

threshold for that port.
