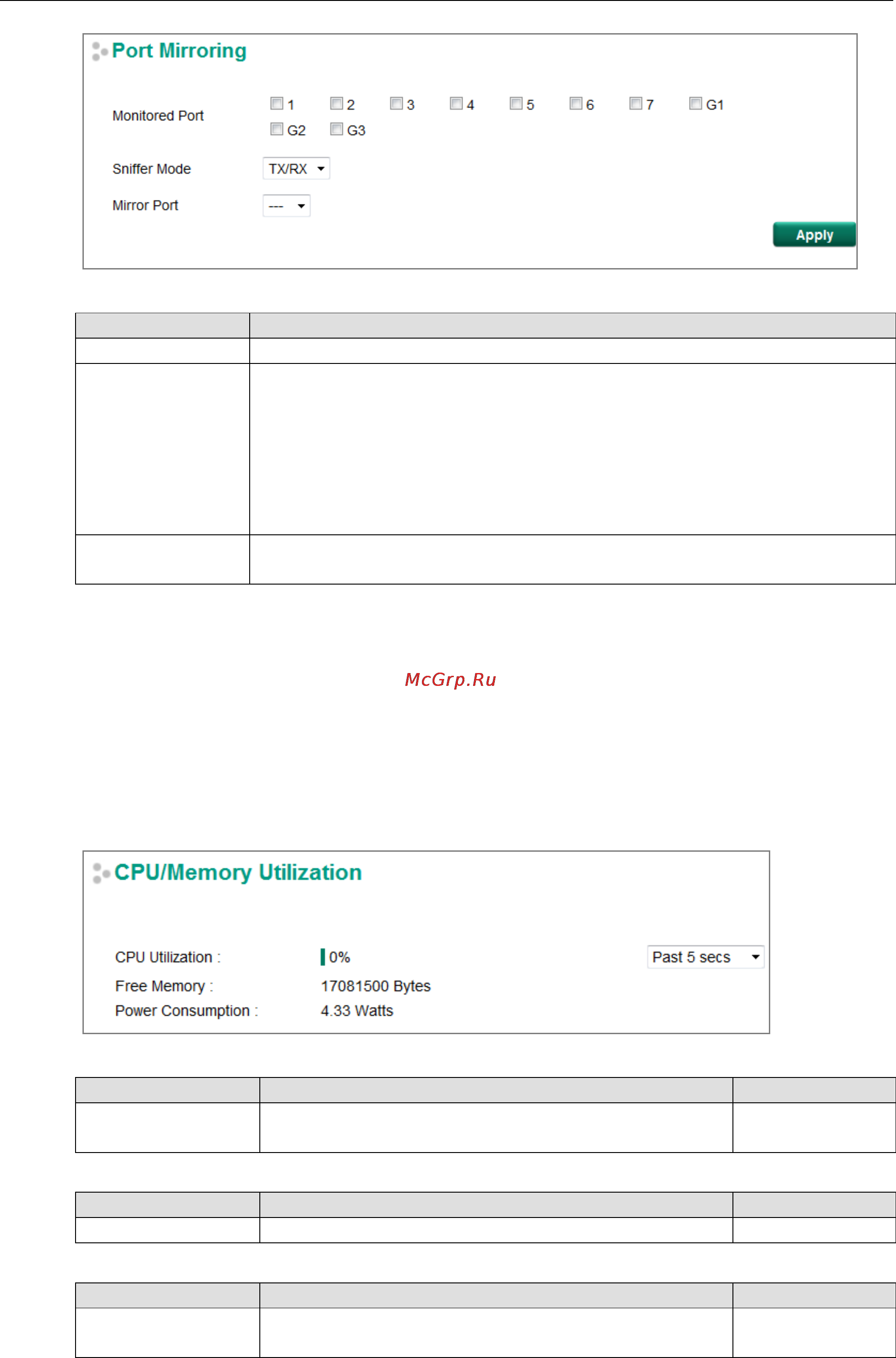

Port Mirroring Settings

Setting Description

Monitored Port Select which ports will be monitored.

Sniffer Mode Select one of the following three watch direction options:

• RX: Select this option to monitor only those data packets coming into the Moxa

switch’s port.

• TX:

Select this option to monitor only those data packets being sent out through the

Moxa switch’s port.

• TX/RX: Select this option to monitor data packets both coming into, and being sent

out through, the Moxa switch’s port.

Mirror Port

Select the number of the port that will be used to monitor the activity of the monitored

port.

Monitoring

You can monitor statistics in real time from the Moxa switch’s web console and USB console.

CPU/Memory Utilization

The CPU/Memory Utilization page displays the status of system resources. Monitor this information to quickly

and easily understand the working status of the switch.

CPU Utilization

Setting Description Factory Default

Read-only The CPU usage volume in the past 5 seconds, 30 seconds, and

5 minutes

Past 5 secs

Free Memory

Setting Description Factory Default

Read-only The switch’s current free memory None

Power Consumption

Setting Description Factory Default

Read-only The current system power consumption information. The

measurement tolerance is 7% (Unit: watts.)

None
