Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-81

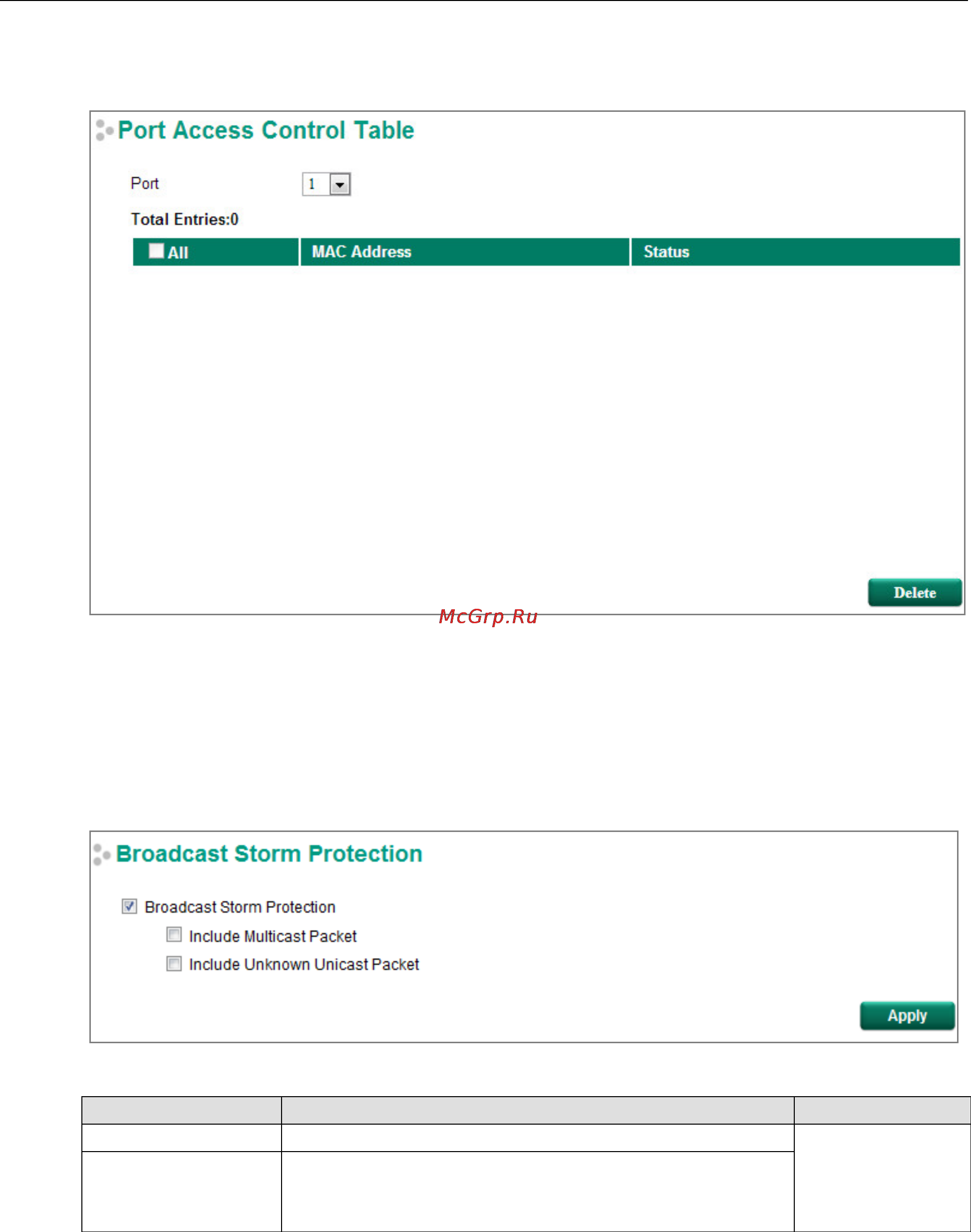

Port Access Control Table
The port status will be indicated as authorized or unauthorized.
Broadcast Storm Protection
Broadcast Storm Protection is only supported by the EDS-G508E, EDS-G512E-4GSFP, EDS-G516E-4GSFP,
IKS-6726A/6728A/6728A-8PoE, EDS-G512E-8PoE, EDS-518E, and EDS-528E series.
Broadcast Storm Protection
Setting Description Factory Default
Unchecked Broadcast storm protection is not activated. Checked
Checked
Broadcast storm protection is activated. In this case, you may
check either one or both of Include Multicast Packet and
Include
Unknown Unicast Packet.
Include Multicast Packet
:
When checked,
the switch will discard Multicast packets if the Multicast
traffic is over
the Multicast packet limit.
Include Unknown Unicast Packet
:
When checked,
the switch will discard Unknown Unicast packets if the
Unknown Unicast packet traffic is over
the limit.
