this port. Use commas to separate different VIDs.

NOTE

The

Quick Setting Panel provides a quick way of configuring multiple VLAN ports with the same setting.

VLAN Settings: Port-based

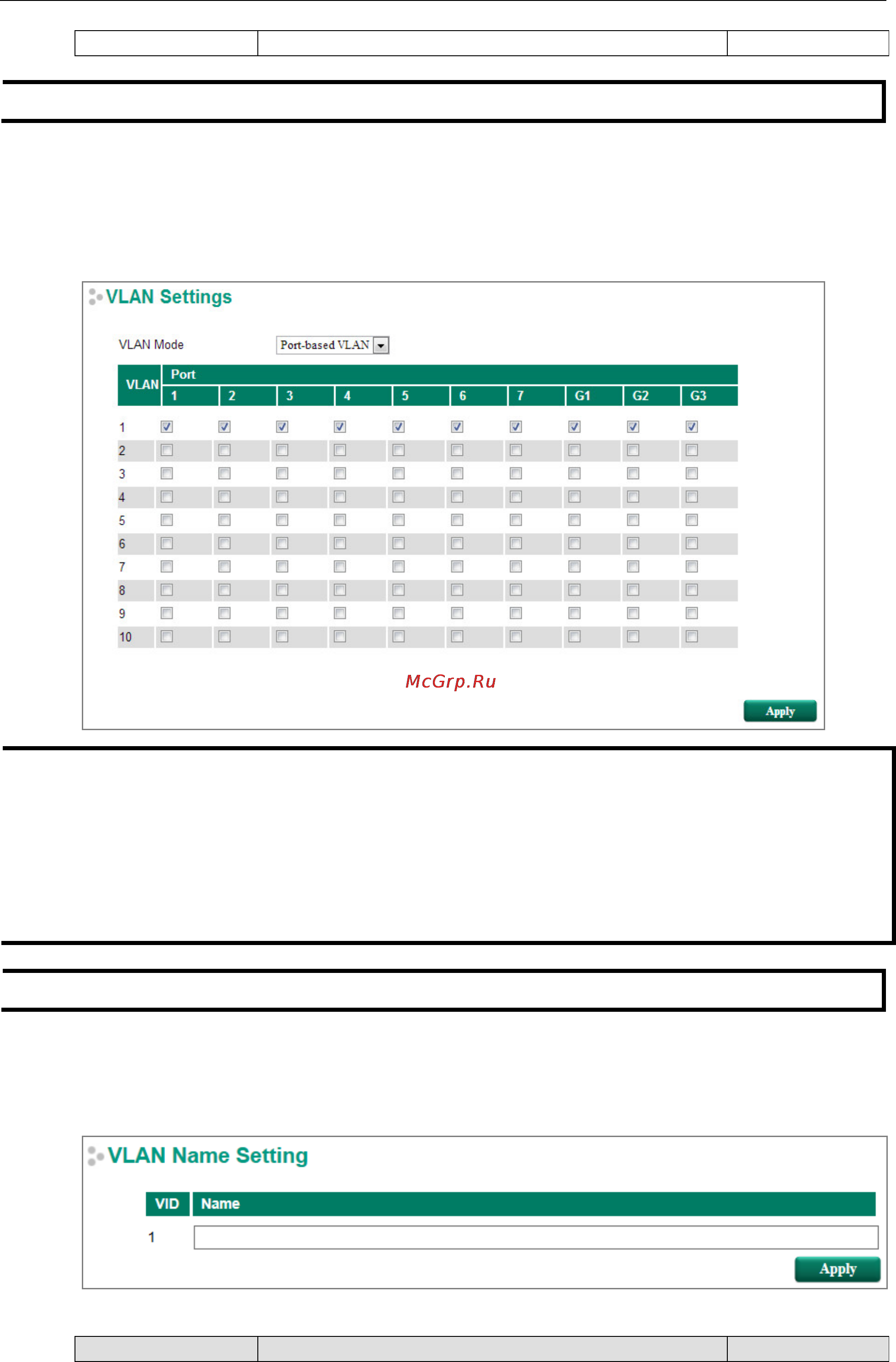

When VLAN Mode is set to Port-based VLAN, the VLAN Settings window will appear as shown below. Select

the appropriate checkbox under a port to assign the port to a VLAN. The maximum VLAN ID equals the number

of switch ports. In the following example, all of the ports are assigned to VLAN 1.

NOTE

Port

-Based VLAN is supported by:

•

EDS series switches (not including the EDS-728/828)

•

IKS-6726A/6728A

Port

-Based VLAN is NOT supported by:

•

EDS-728/828

•

IKS-G6524A/G6824A

•

ICS series switches

NOTE

When Port

-based VLAN is configured, IGMP will be disabled.

VLAN Name Setting

For the 802.1Q VLAN, the user is able to set VLAN name of each VLAN ID (VID).

VLAN Name Setting

Setting Description Factory Default
