English
9
APPLICATION
䡬
Driving and removing of small screws, small bolts, etc.
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch to remove the battery (see
Figs. 1 and 2).
CAUTION:
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see Fig. 2).
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charger’s pilot lamp will blink in red.
(At 1-second intervals)
2. Insert the battery into the charger.
Firmly insert the battery into the charger until the line is visible, as shown in
Fig. 3, 4 .
3. Charging
When inserting a battery in the charger, charging will commence and the
pilot lamp will light continuously in red.
When the battery becomes fully recharged, the pilot lamp will blink in red.
(At 1-second intervals) (See Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in Table 1, according to
the condition of the charger or the rechargeable battery.

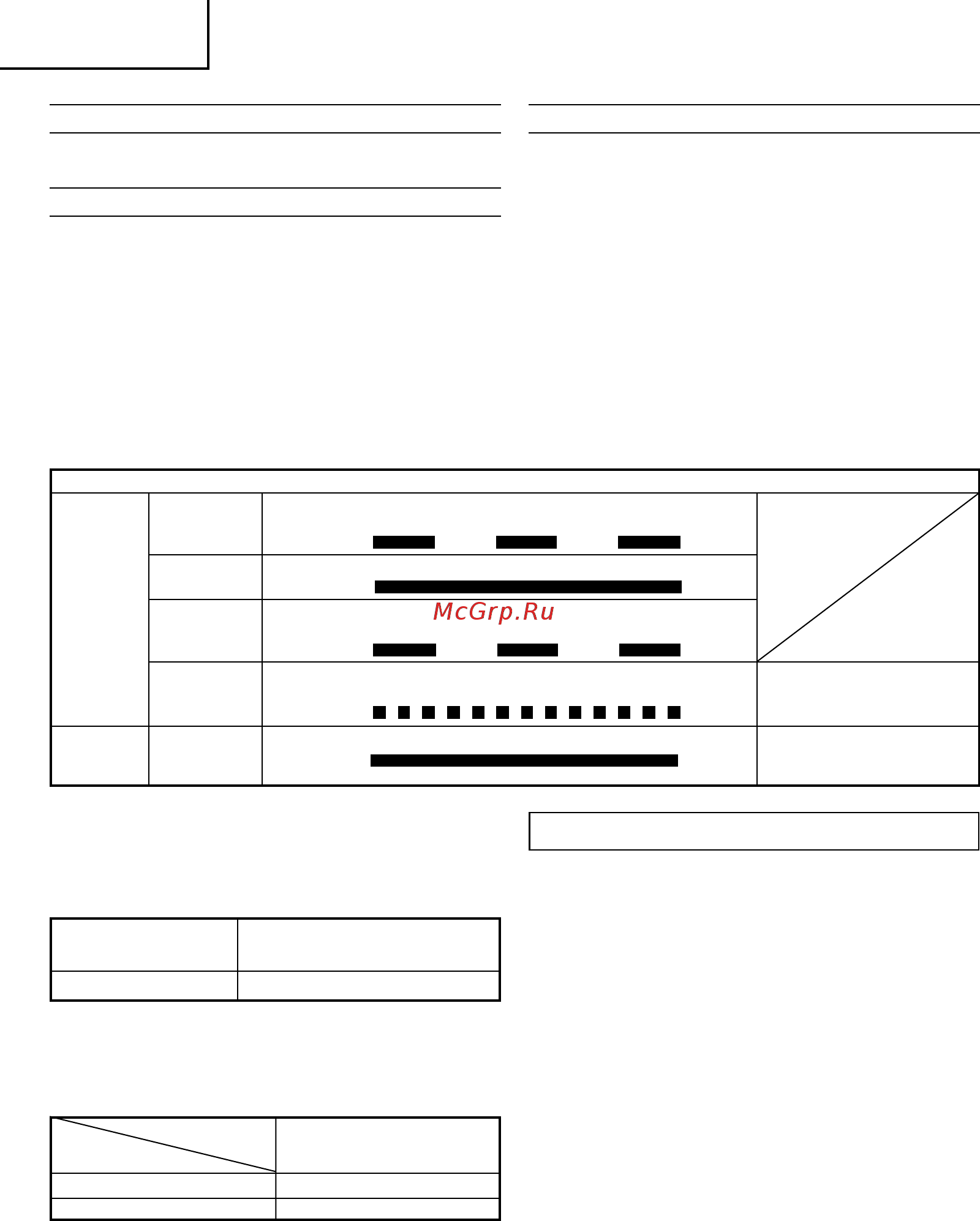

Table 1
Indications of the pilot lamp
Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for
0.5 seconds)
Lights continuously
Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for
0.5 seconds)
Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for
0.1 seconds)
Lights continuously
Before
charging
While
charging
Charging
complete
Charging
impossible
Blinks
Lights
Blinks
Flickers
Lights
Malfunction in the battery or the
charger
Battery overheated. Unable to
charge (Charging will commence
when battery cools).
Overheat
standby
The
pilot lamp
lights or
blinks in red.
The pilot
lamp lights
in green.
(2) Regarding the temperatures of the rechargeable battery
The temperatures for rechargeable batteries are as shown in Table 2, and batteries
that have become hot should be cooled for a while before being recharged.
Table 2 Recharging ranges of batteries
(3) Regarding recharging time
Depending on the combination of the charger and batteries, the charging
time will become as shown in Table 3.
Table 3 Charging time (At 20°C)
NOTE:
The charging time may vary according to temperature and power source
voltage.
4. Disconnect the charger’s power cord from the receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE:
After operation, pull out batteries from the charger first, and then keep the
batteries properly.
How to make the batteries perform longer
(1) Recharge the batteries before they become completely exhausted.
When you feel that the power of the tool becomes weaker, stop using the tool
and recharge its battery. If you continue to use the tool and exhaust the
electric current, the battery may be damaged and its life will become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after use. If such a battery is
recharged immediately after use, its internal chemical substance will
deteriorate, and the battery life will be shortened. Leave the battery and
recharge it after it has cooled for a while.
CAUTION:
䡬
When the battery charger has been continuosly used, the battery charger
will be heated, thus constituting the cause of the failures. Once the charging
has been completed, give 15 minutes rest until the next charging.
䡬
If the battery is recharged when it is warm due to battery use or exposure to
sunlight, the pilot lamp map light in green.
The battery will not be recharged. In such a case, let the battery cool before
charging.
䡬
When the pilot lamp flickers in red (at 0.2-second intervals), check for and
take out any foreign objects in the charger’s battery installation hole. If there
are no foreign objects, it is probable that the battery or charger is
malfunctioning. Take it to your authorized Service Center.
Temperatures at which the
Rechargeable batteries
battery can be recharged
BSL1430, BSL1415, BSL1830 0°C – 40°C
Charger
UC18YRSL
Battery
BSL1430, BSL1830 Approx. 45 min.
BSL1415 Approx. 20 min.
01Eng_WH14DSL_EE 08/11/20, 19:189
