User’s manual

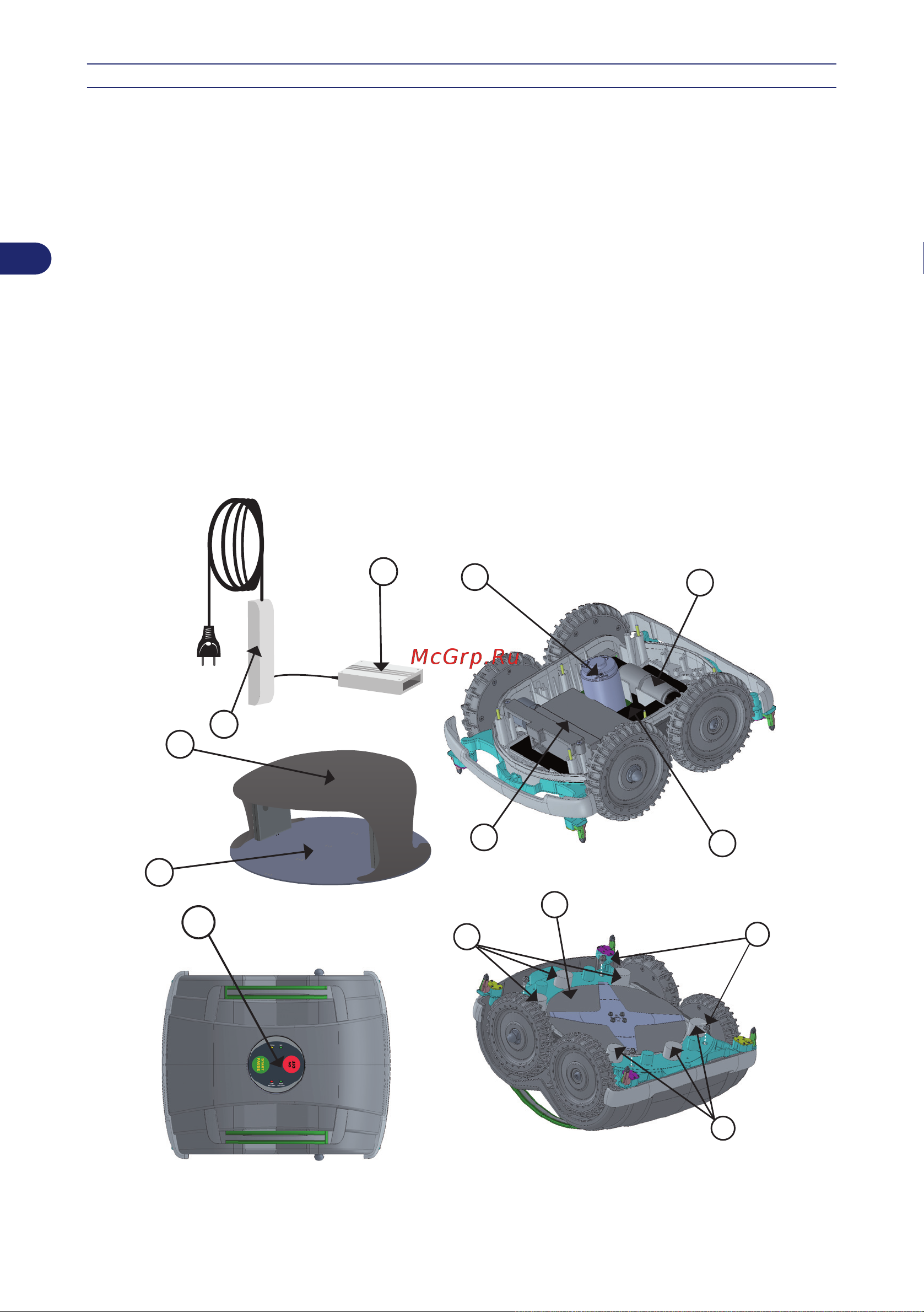

MAIN COMPONENTS

A–Battery: supplies power to the blade and wheel motors

B–Power Supply Unit: used to recharge or keep the batteries charged (A).

C–Mother board: controls the automatic functions of the robot.

D–Control keyboard: used to set and display the operating modes of the robot.

E–Cutting blade: mows the lawn.

F–Electric motor: operates the cutting blade (E).

G–Electric motor: one operates the right wheel transmission unit, while the other operates the

left wheel.

H–Sensors: used to recognise the characteristics of the ground on which the robot is operating.

I – Curb drop-off sensors: detect any holes or empty spaces. They are positioned in line with

the wheels making it easy to change direction before any steps.

L–Transmitter: transmits the signal to the guide wire.

M-Charging station: this is needed to recharge or keep the batteries charged (A)

N- Covering hood
