RECOMMENDATIONS FOR REPLACING PARTS

Important

Carry out the replacement operations and repairs according to the Manufactu-

rer’s instructions, or contact the Service Centre if these operations are not inclu-

ded in the manual.

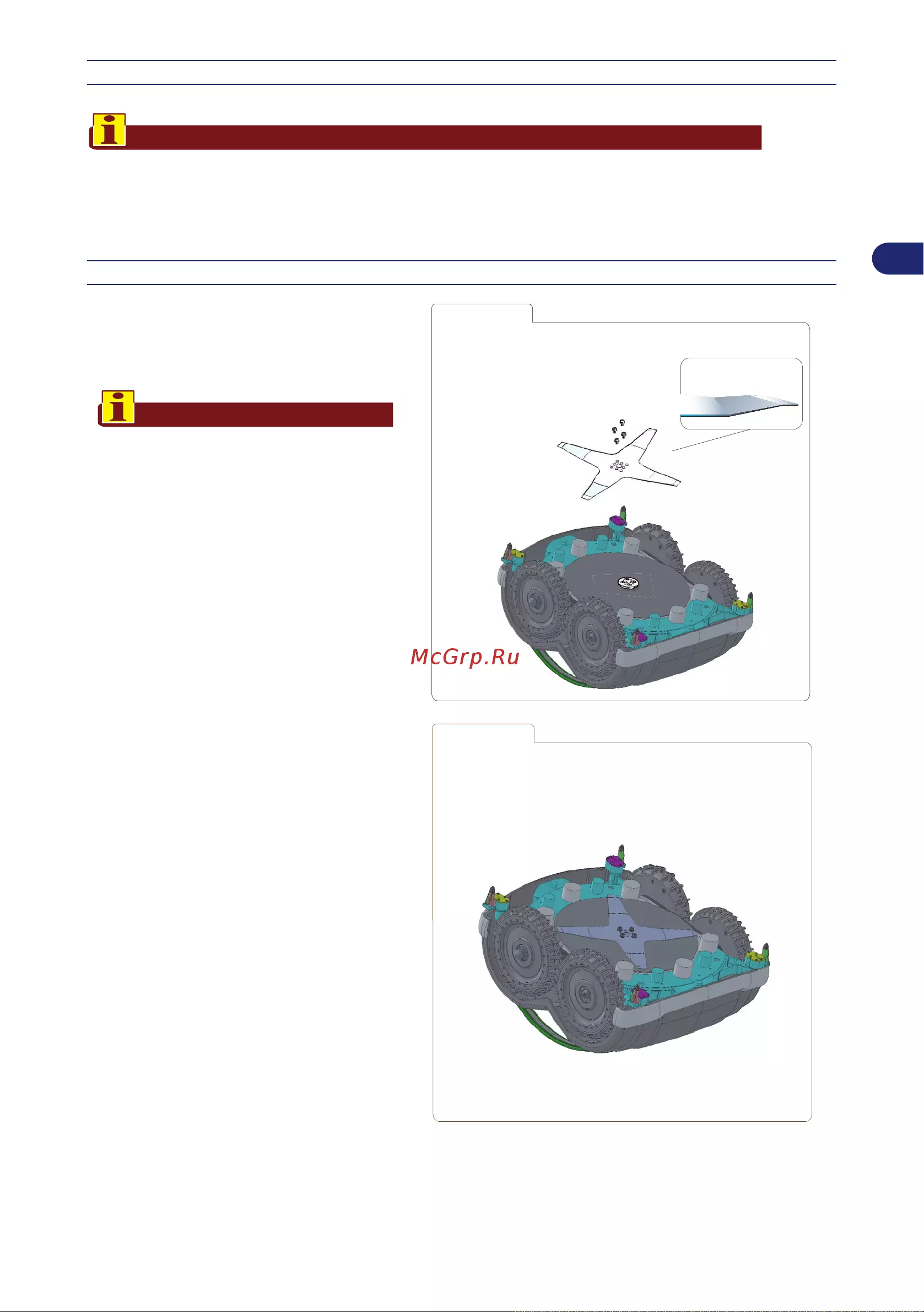

BLADE REPLACEMENT

1 – Stop the robot safely (see “Robot

safety stop”, page 34).

Important

Use protective gloves to avoid the

risk of cutting your hands.

2 – Turn over the robot and position it

so as not to ruin the covering hood.

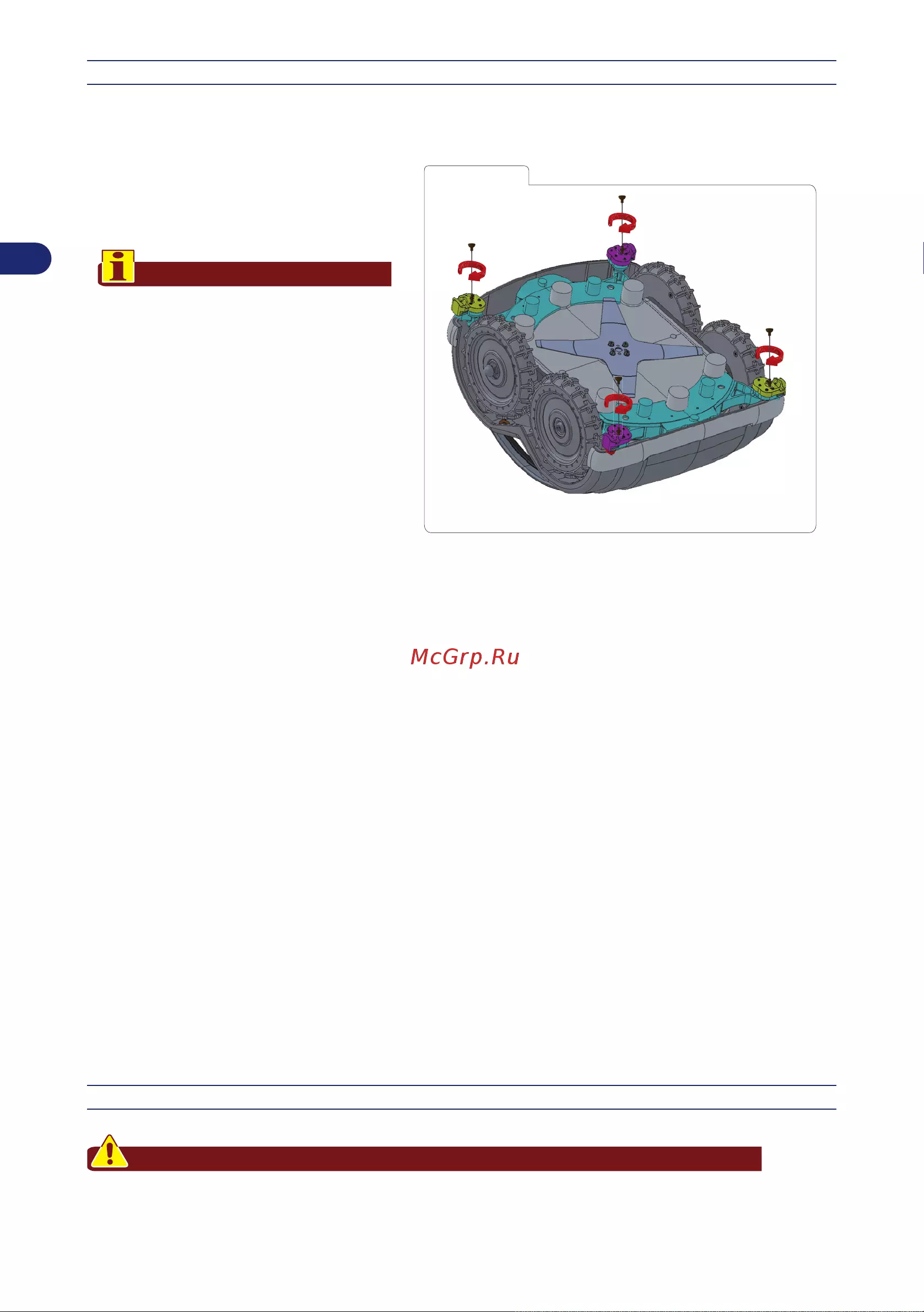

3 – Unscrew the screws to remove

the blade.

4 – Insert a new blade and fasten the

screws.

5 – Adjust the cutting height (see

“Cutting height adjustment”, page

27).

6 – Turn the robot over to its opera-

ting position.

INSERTING BLADE

WITH SCREWS

check that the slope of the blade,

with the robot in the start position,

is facing downwards.

BLADE 2
