User’s manual

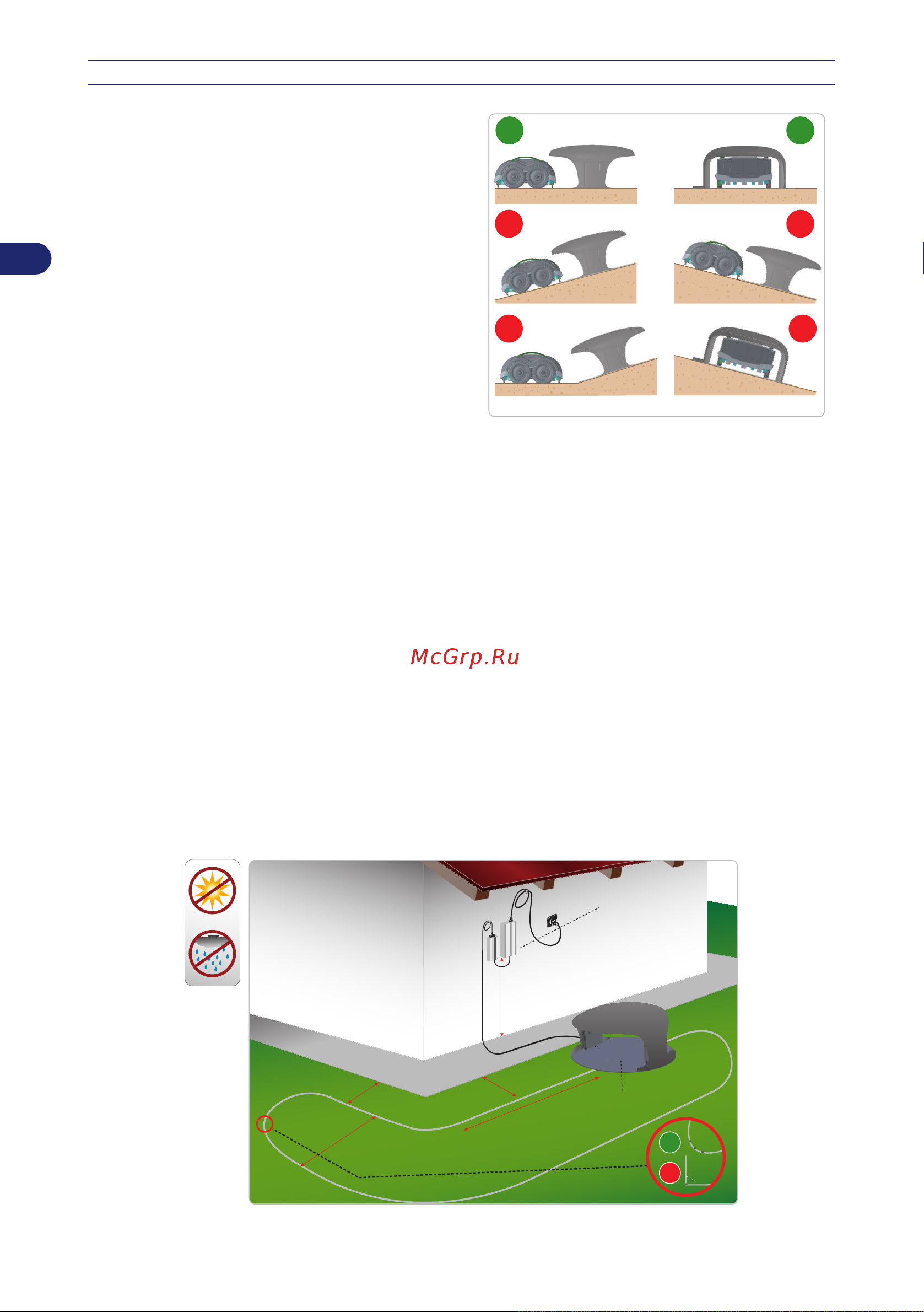

INSTALLATION OF CHARGING STATION

The charging station must be positioned on

the edge of the lawn, preferably in the largest

area where other areas of the lawn are easily

accessible.

NO NO

OK OK

Position the charging station according to these rules:

- The area must the  at

- The ground must be compact and stable with good drainage

- Choose the widest lawn area

- In case of sprinklers, make sure the water jets are not directed inside the charging station.

- The power cord must move away from the charging station on the outside of the cutting area.

- The entrance of the charging station must be positioned as shown in the  gure so that the

robot can enter it by following the guide wire in a clockwise direction.

- There must be a straight area of 200 cm (78.74 in.) in front of the charging station.

- The charging station must be well fastened to the ground; to prevent a small step from forming

in front of the base, position a piece of fake grass at its entrance as a prevention measure.

Alternatively, remove part of the grassy surface and install the base  ush with the grass.

- The charging station must be connected to the power supply-transmitter unit via a cord that

must move away from the charging station on the outside of the cutting area. Stretch out the

excess cord going from the charging station to the power supply- transmitter unit. Do not

shorten or lengthen the cord.

90°

power supply-transmitter unit

charging station

H. min. 160 cm

/ 63 inc.

35 cm

/ 13,78 inc.

200 cm

/ 78,74 inc.

35 cm

/ 13,78 inc.

100 cm

/ 39,37 inc.
