PREPARATION AND DEFINING THE BOUNDARIES OF THE WORK AREAS

Preparation of the lawn to mow

1. Make sure that the lawn to mow is even and does not contain holes, stones or other obstacles.

Otherwise, prepare the lawn by  lling in any holes and removing any obstacles. If some obsta-

cles cannot be removed, it is necessary to properly de ne and protect the interested areas.

2. Check that all the areas of the lawn do not exceed the allowable slopes (see “Technical Speci-

 cations”, page 9).

The sensors, which recognise the presence of the grassy surface, allow the robot to move freely

inside the lawn. The lawn must be suitably checked and adjusted so that the robot has enough

space for recognising when there is no grass. Carefully follow the below points for the correct and

safe use of the robot.

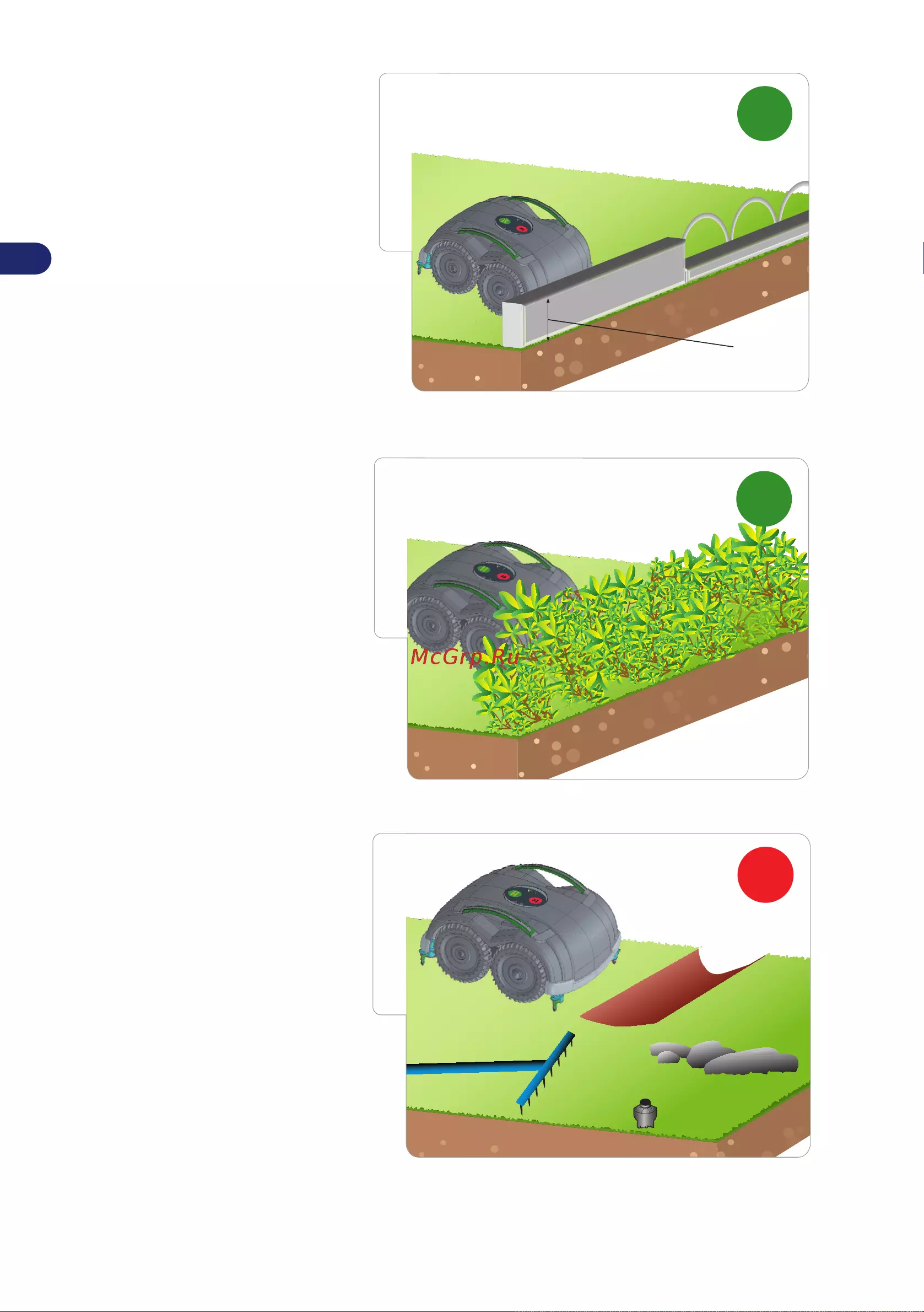

DEFINING THE BOUNDARIES

PROTECTIONS

WALL

higher than

9 cm. / 3,5 inc.

PAVING

wider than 25 cm. / 9,8 inc.

With the curb drop-off sensor installed,

Minimum width 10 cm / 4.0 inches

HEDGING SMALL ARCHES

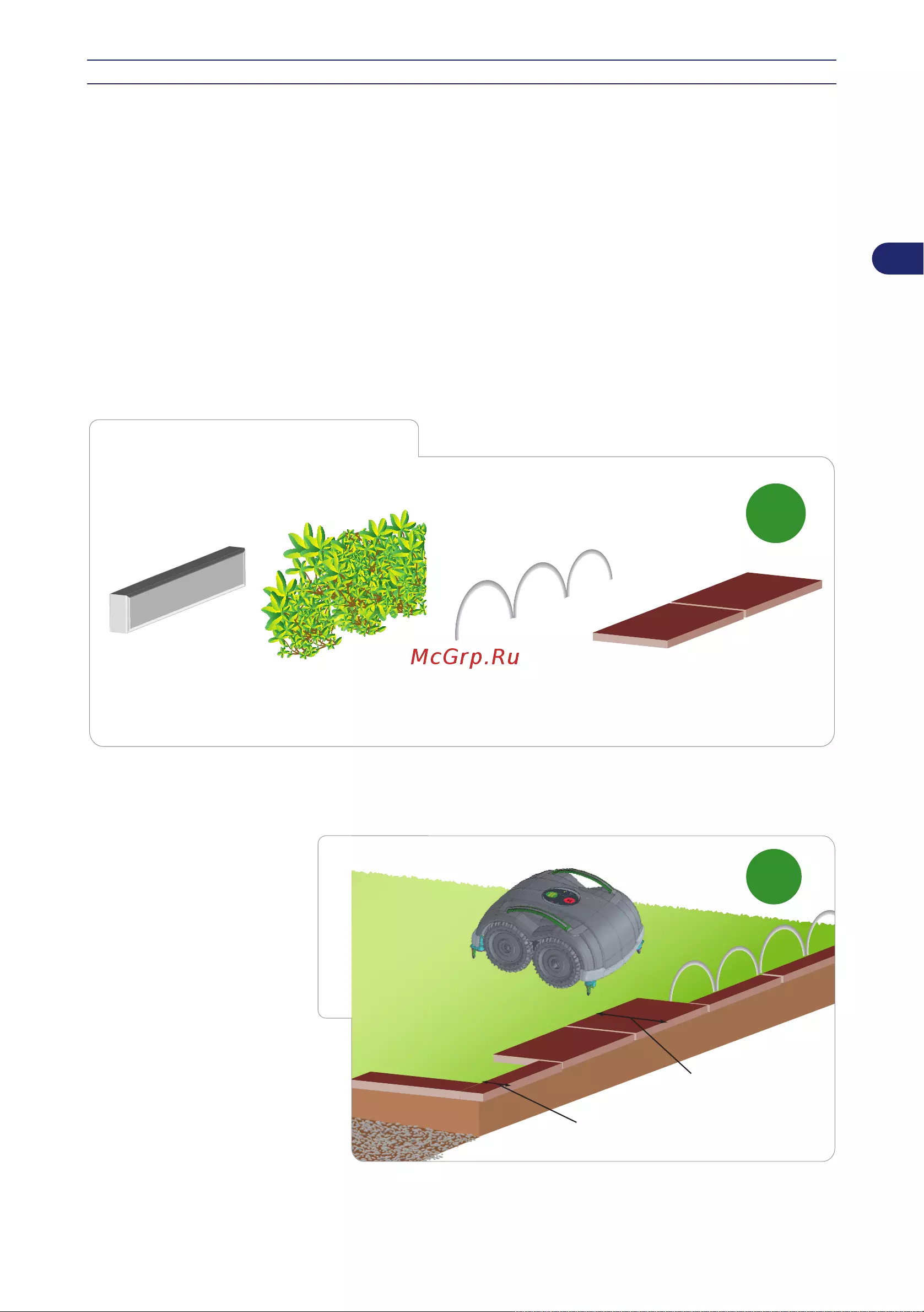

Types of boundaries/protections that can be used for correctly de ning the limits of the robot’s work area.

The robot requires at least 25

cm (9.84 in) without any grass

for it to stop safely and change

direction. For lawns with paths

or curbs, they must be at least

25 cm (9.84 in.) wide. Any curbs

that are less than 25 cm (9.84

in.) side, must be protected with

paving or arches in the ground,

as shown in the  gure, so that

the robot impacts with them.

The robot with the curb drop-off

sensor installed needs 10 cm/4

inches) without any grass.

PAVEMENT

minum width of 25 cm. / 9,8 inc.

With the curb drop-off sensor installed,

Minimum width 10 cm / 4.0 inches
