User’s manual

BATTERY RECHARGE ON FIRST USE

Position the robot next to the recharging zone.

1. Check that the power supply unit is connected to the electricity power (110V or 220V).

ROBOT WITH NO CHARGING STATION

2. Connect the black plug to the wheel containing the black “-” symbol.

3. Connect the red plug to the wheel containing the red “+” symbol.

ROBOT WITH NO CHARGING STATION

2. Position the robot in the charging station with the red “+” symbol positioned on the outside

of the cutting area, as shown in the  gure.

Once connected, the robot automatically turns on to show the recharging level of the batteries.

(see “meaning of LED combination” on page 29).

Once completely charged, disconnect the robot and press “OFF”

H. min. 160 cm

/ 63 inc.

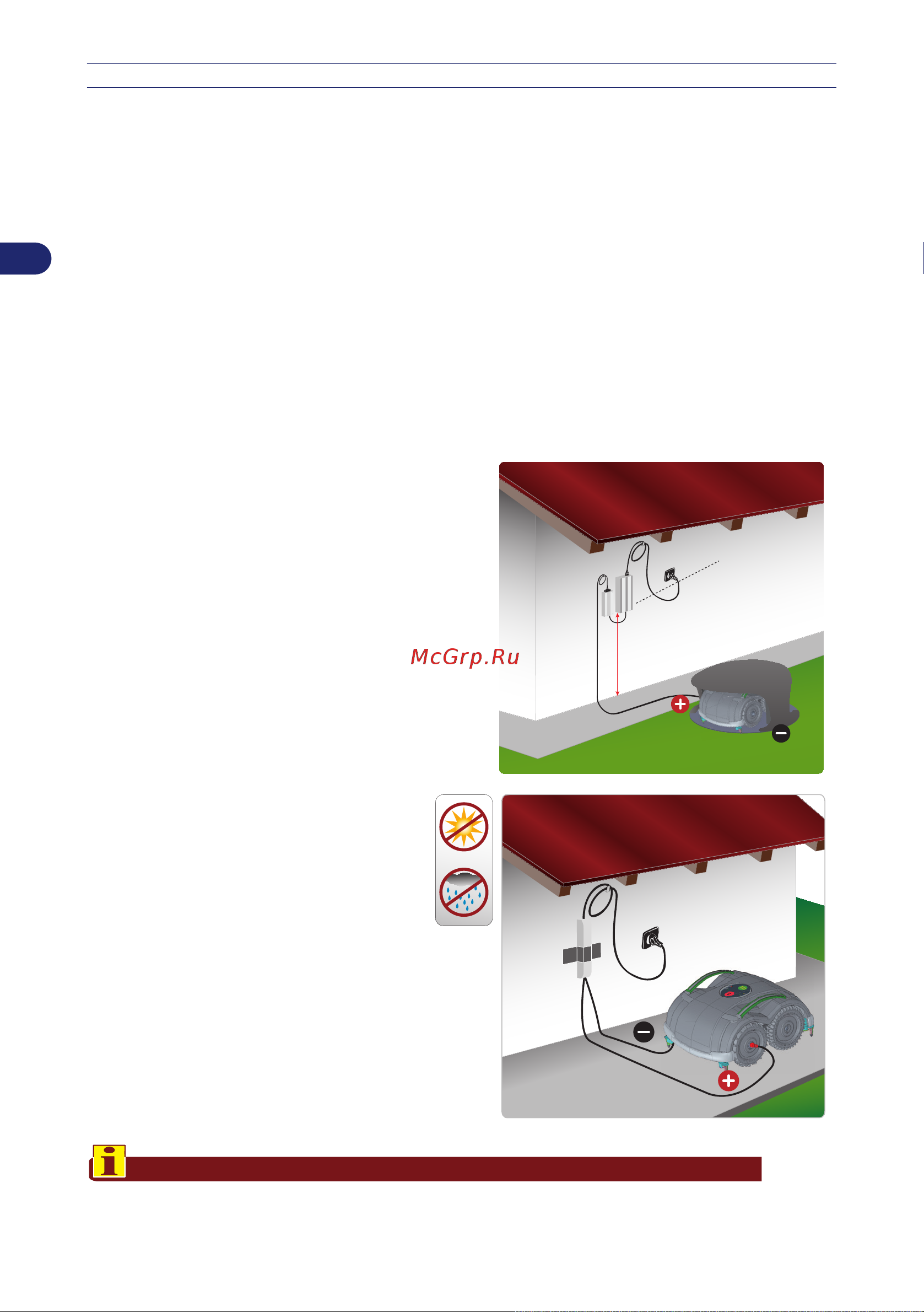

power supply-transmitter unit

Correctly connect the recharging knobs

to the nuts found on the wheels of the

robot.

The  gure shows the correct installation

of the robot’s recharging zone.

Important

On  rst recharge, the batteries be charged connected for at least 24 hours.
